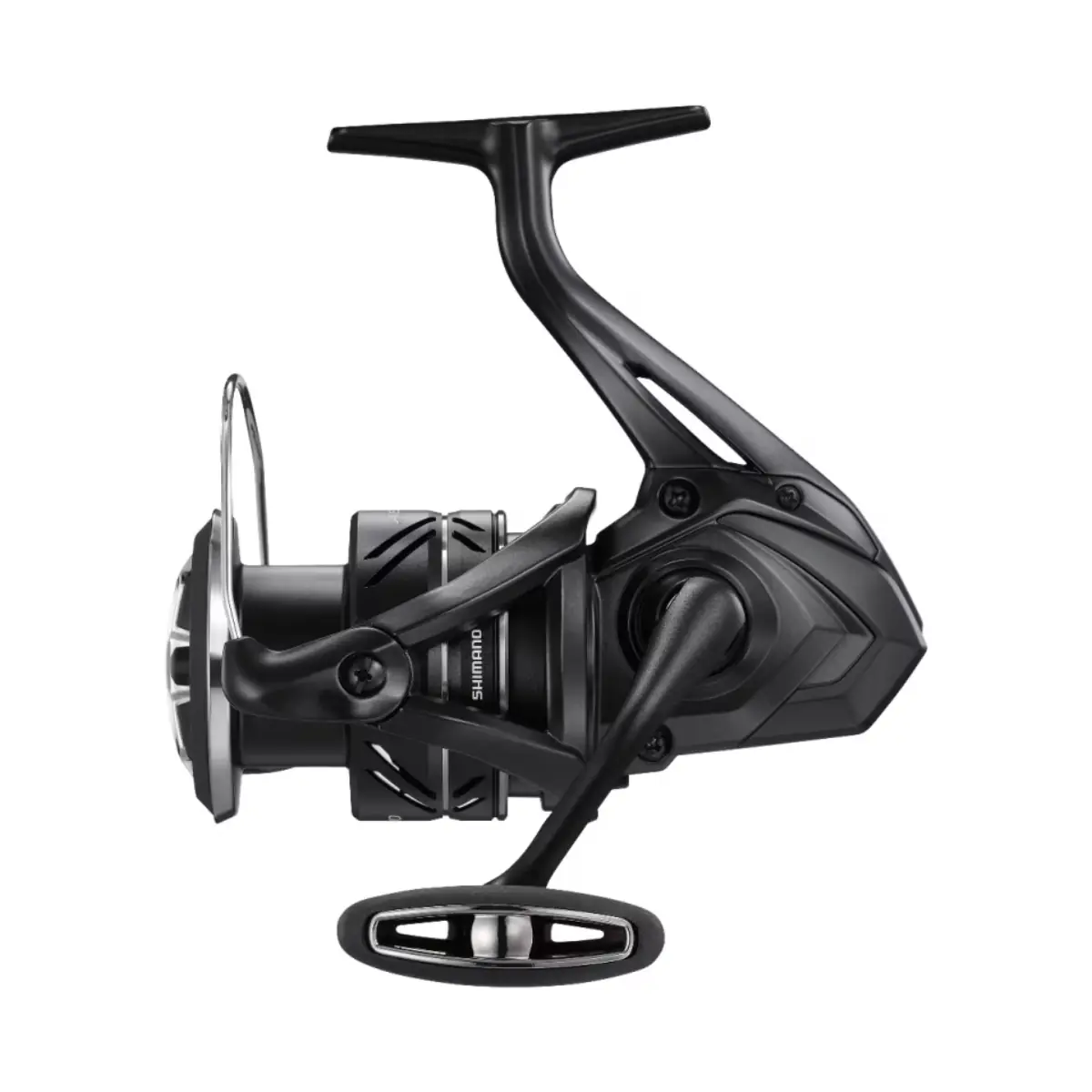

This page brings together the exploded view, the compatible parts and maintenance solutions for the SHIMANO 22 AERO XR 4000 (2022).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 8553 |
R18
dès 10,99 €
|
|
| 8554 |
R12
dès 13,29 €
|
|
| 12969 |
R19
dès 10,99 €
|
|
| 13269 |
R05
dès 10,39 €
|
|
| 17698 |
R05
dès 10,39 €
|
|
| 20644 |
R07
dès 10,39 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 0582 | 108WH O Ring | O Ring | — |
| 3455 | 10BXN Spool Washer | Spool Washer | — |
| 4798 | 103C6 Screw | Screw | — |
| 8916 | 10CH0 Click Spring | Click Spring | — |
| 10752 | 10TYE Bail Spring Guide A Support | Bail Spring Guide A Support | — |
| 13918 | 103LT Screw | Screw | — |
| 14830 | 10PH5 Screw | Screw | — |
| 14832 | 103MU Spool Support A | Spool Support A | — |
| 14833 | 10J04 Spool Support B | Spool Support B | — |
| 14887 | 1038D Drag Click | Drag Click | — |
| 14888 | 10JM5 Click Spring | Click Spring | — |
| 16774 | 10BCE Key Washer | Key Washer | — |
| 16775 | 102ZD Washer | Washer | — |
| 16931 | 10B8N Drag Washers Retainer | Drag Washers Retainer | — |
| 17145 | 105B4 Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 17192 | 1067Y Rotor Nut | Rotor Nut | — |
| 17242 | 106P4 Bail Trip Lever | Bail Trip Lever | — |
| 17251 | 10QPN Roller Clutch Assembly | Roller Clutch Assembly | — |
| 17342 | 10ML7 Screw | Screw | — |
| 17372 | 10LCE Screw | Screw | — |
| 17415 | 106ZC Click Pin | Click Pin | — |
| 17682 | 1061L Bail Spring Guide A | Bail Spring Guide A | — |
| 17683 | 105R6 Bail Spring | Bail Spring | — |
| 17684 | 107AB Bail Spring Seat | Bail Spring Seat | — |
| 17690 | 104FV Friction Ring | Friction Ring | — |
| 17700 | 10LFA Screw | Screw | — |
| 17773 | 102ZG Drag Washer | Drag Washer |
Carbontex for Shimano Spinning S#26
13,99 €
|
| 17879 | 10LA3 Screw | Screw | — |
| 17885 | 10HEP Washer | Washer | — |
| 17934 | 101SZ Main Shaft | Main Shaft | — |
| 17940 | 101ST Pinion Gear | Pinion Gear | — |
| 17979 | 106GA Counter Weight | Counter Weight | — |
| 17991 | 10LFL Screw | Screw | — |
| 18022 | 10JVH Washer | Washer | — |
| 18208 | 10TJM Spacer | Spacer | — |
| 18681 | 10PMH Screw | Screw | — |
| 18741 | 10SYU Washer | Washer | — |
| 18822 | 101EH Screw | Screw | — |
| 19745 | 104FH Washer | Washer | — |
| 19803 | 10RSK Screw | Screw | — |
| 19831 | 1009E O Ring | O Ring | — |
| 19837 | 1009K Line Roller Bushing | Line Roller Bushing | — |
| 19839 | 10RFZ Line Roller Spacer | Line Roller Spacer | — |
| 20150 | 10E44 Line Roller Collar | Line Roller Collar | — |
| 20370 | 103DA Screw | Screw | — |
| 20710 | 10S3U Handle Knob Seal | Handle Knob Seal | — |
| 21106 | 103NA Screw | Screw | — |
| 21178 | 10EEZ Washer | Washer | — |
| 21812 | 10TB2 Anti-Reverse Cam | Anti-Reverse Cam | — |
| 21815 | 10TBH Bushing | Bushing | — |
| 21853 | 101HU Oscillating Guide | Oscillating Guide | — |
| 21855 | 101HS Oscillating Gear | Oscillating Gear | — |
| 21856 | 10241 O Ring | O Ring | — |
| 21857 | 101UC Oscillating Slider | Oscillating Slider | — |
| 21859 | 101UB Drive Gear | Drive Gear | — |
| 22328 | 102XX Washer | Washer | — |
| 22333 | 10G6F Spacer | Spacer | — |
| 22334 | 10SU2 Line Roller | Line Roller | — |
| 22337 | 10R6H Line Roller Support | Line Roller Support | — |
| 22340 | 100EH Screw | Screw | — |
| 22345 | 10R7C Drag Knob | Drag Knob | — |
| 22346 | 10R7B Spool AERO XR 4000 | Spool AERO XR 4000 | — |
| 22348 | 10R7A Bail Spring Cover | Bail Spring Cover | — |
| 22349 | 10R7D Bail Arm | Bail Arm | — |
| 22350 | 10TK8 Bail Assembly | Bail Assembly | — |
| 22351 | 10SJE Body | Body | — |
| 22352 | 10R7E Rear Protector | Rear Protector | — |
| 22353 | 10R7F Side Cover | Side Cover | — |
| 22354 | 10R7G Screw | Screw | — |
| 22355 | 10R79 Handle Assembly | Handle Assembly | — |
| 22356 | 10R6L Spare Spool AERO XR 4000 | Spare Spool AERO XR 4000 | — |
| 22357 | 10R6K Spool Economizer (Accessory) | Spool Economizer (Accessory) | — |
| 22418 | 10RPB Bushing Spring | Bushing Spring | — |
| 22420 | 10RHG Anti-Reverse Lever | Anti-Reverse Lever | — |
| 22558 | 13XFC Rotor | Rotor | — |
