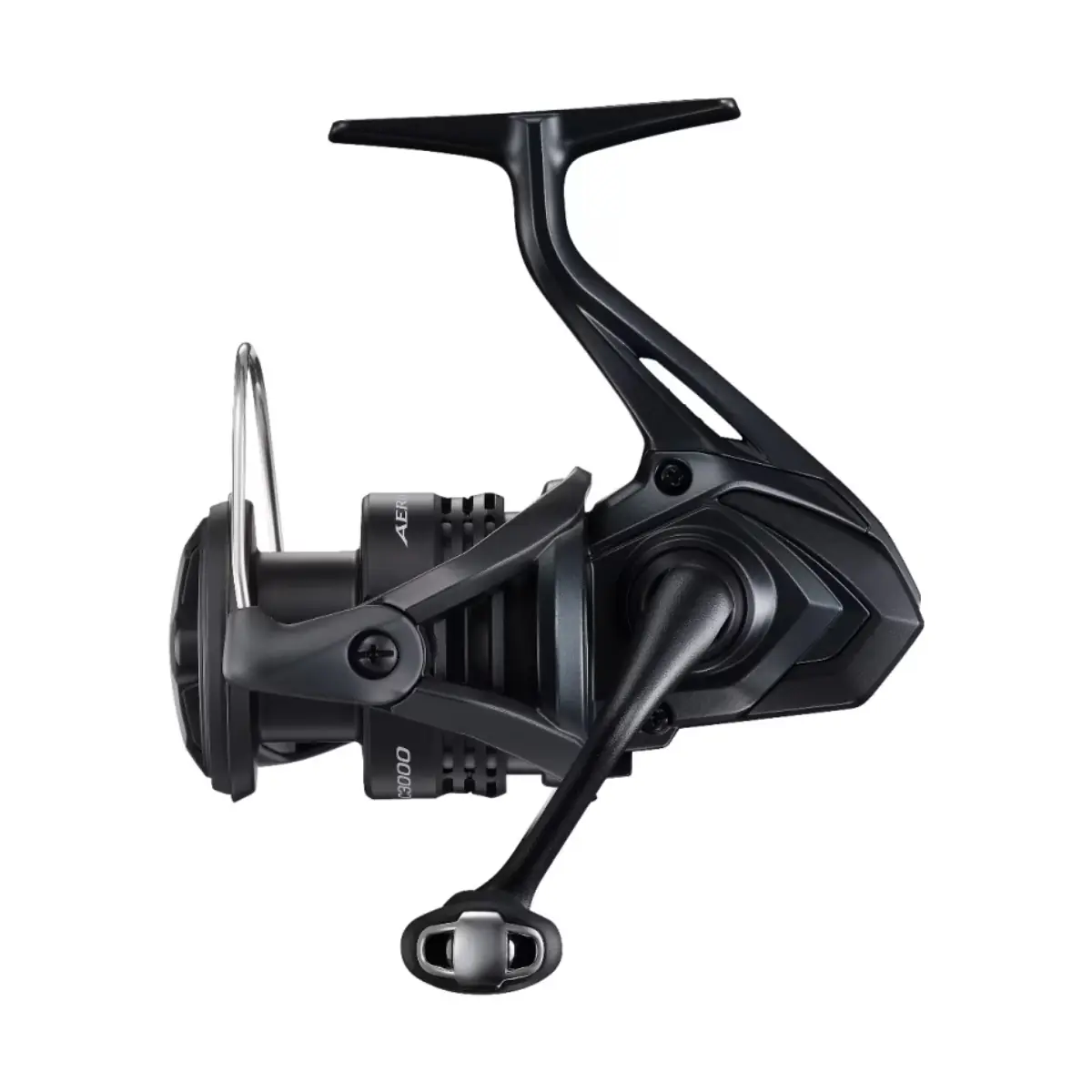

This page brings together the exploded view, the compatible parts and maintenance solutions for the SHIMANO 22 AERO C3000 (2022).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 8553 |
R18
dès 10,99 €
|
|
| 8554 |
R12
dès 13,29 €
|
|
| 12969 |
R19
dès 10,99 €
|
|
| 20644 |
R07
dès 10,39 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 0582 | 108WH O Ring | O Ring | — |
| 3455 | 10BXN Spool Washer | Spool Washer | — |
| 4798 | 103C6 Screw | Screw | — |
| 6684 | 10KFD Line Roller Spacer | Line Roller Spacer | — |
| 8916 | 10CH0 Click Spring | Click Spring | — |
| 9369 | 10PFP Washer | Washer | — |
| 9564 | 10JLE Line Roller | Line Roller | — |
| 10184 | 10PFH Line Roller Bushing | Line Roller Bushing | — |
| 10345 | 10N5A Drag Washer | Drag Washer |
Carbontex for Shimano Spinning S#1
13,99 €
|
| 10752 | 10TYE Bail Spring Guide A Support | Bail Spring Guide A Support | — |
| 11077 | 10MZX Drag Washers Retainer | Drag Washers Retainer | — |
| 11166 | 10KFA Spacer | Spacer | — |
| 12078 | 10PH4 Screw | Screw | — |
| 14829 | 10PH3 Drag Click Spring | Drag Click Spring | — |
| 14832 | 103MU Spool Support A | Spool Support A | — |
| 14833 | 10J04 Spool Support B | Spool Support B | — |
| 15416 | 1038H Drag Click | Drag Click | — |
| 16774 | 10BCE Key Washer | Key Washer | — |
| 17145 | 105B4 Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 17192 | 1067Y Rotor Nut | Rotor Nut | — |
| 17194 | 106P2 Bail Trip Lever | Bail Trip Lever | — |
| 17251 | 10QPN Roller Clutch Assembly | Roller Clutch Assembly | — |
| 17332 | 10R1P Screw | Screw | — |
| 17372 | 10LCE Screw | Screw | — |
| 17415 | 106ZC Click Pin | Click Pin | — |
| 17682 | 1061L Bail Spring Guide A | Bail Spring Guide A | — |
| 17683 | 105R6 Bail Spring | Bail Spring | — |
| 17684 | 107AB Bail Spring Seat | Bail Spring Seat | — |
| 17690 | 104FV Friction Ring | Friction Ring | — |
| 17698 | 10PXZ Handle Knob Bushing | Handle Knob Bushing |
R05
dès 10,39 €
|
| 17700 | 10LFA Screw | Screw | — |
| 17701 | 10TNJ Handle Knob Seal | Handle Knob Seal | — |
| 17849 | 10DMK Main Shaft | Main Shaft | — |
| 17850 | 1020X Line Roller Collar | Line Roller Collar | — |
| 17857 | 10DMG Pinion Gear | Pinion Gear | — |
| 17916 | 10L6K Screw | Screw | — |
| 17991 | 10LFL Screw | Screw | — |
| 18022 | 10JVH Washer | Washer | — |
| 18551 | 10K96 Washer | Washer | — |
| 18681 | 10PMH Screw | Screw | — |
| 18741 | 10SYU Washer | Washer | — |
| 19745 | 104FH Washer | Washer | — |
| 20370 | 103DA Screw | Screw | — |
| 21106 | 103NA Screw | Screw | — |
| 21178 | 10EEZ Washer | Washer | — |
| 21812 | 10TB2 Anti-Reverse Cam | Anti-Reverse Cam | — |
| 21814 | 10TBF Oscillating Guide | Oscillating Guide | — |
| 21815 | 10TBH Bushing | Bushing | — |
| 21817 | 100QJ Oscillating Gear | Oscillating Gear | — |
| 21818 | 100KG Oscillating Slider | Oscillating Slider | — |
| 21820 | 10T8W Drive Gear | Drive Gear | — |
| 22105 | 10T6S Rotor Assembly | Rotor Assembly | — |
| 22106 | 100FJ Bail Arm | Bail Arm | — |
| 22110 | 100HA Anti-Reverse Lever | Anti-Reverse Lever | — |
| 22111 | 10T6N Side Cover | Side Cover | — |
| 22328 | 102XX Washer | Washer | — |
| 22331 | 10R6D Bail Spring Cover | Bail Spring Cover | — |
| 22339 | 10R6E Rear Protector | Rear Protector | — |
| 22340 | 100EH Screw | Screw | — |
| 22342 | 10R78 Handle Assembly | Handle Assembly | — |
| 22344 | 10R6A Spool Economizer (Accessory) | Spool Economizer (Accessory) | — |
| 22418 | 10RPB Bushing Spring | Bushing Spring | — |
| 22500 | 13ANY Drag Knob | Drag Knob | — |
| 22501 | 13ANZ Spool AERO C3000 | Spool AERO C3000 | — |
| 22502 | 13AP0 Bail Assembly | Bail Assembly | — |
| 22503 | 13AP1 Screw | Screw | — |
| 22504 | 13AP2 Body | Body | — |
| 22505 | 13AP3 Spare Spool AERO C3000 | Spare Spool AERO C3000 | — |
Leave your reel in the hands of our technicians for a full service: cleaning, lubrication, replacement of worn parts and a general check-up.
Discover our maintenance packages
