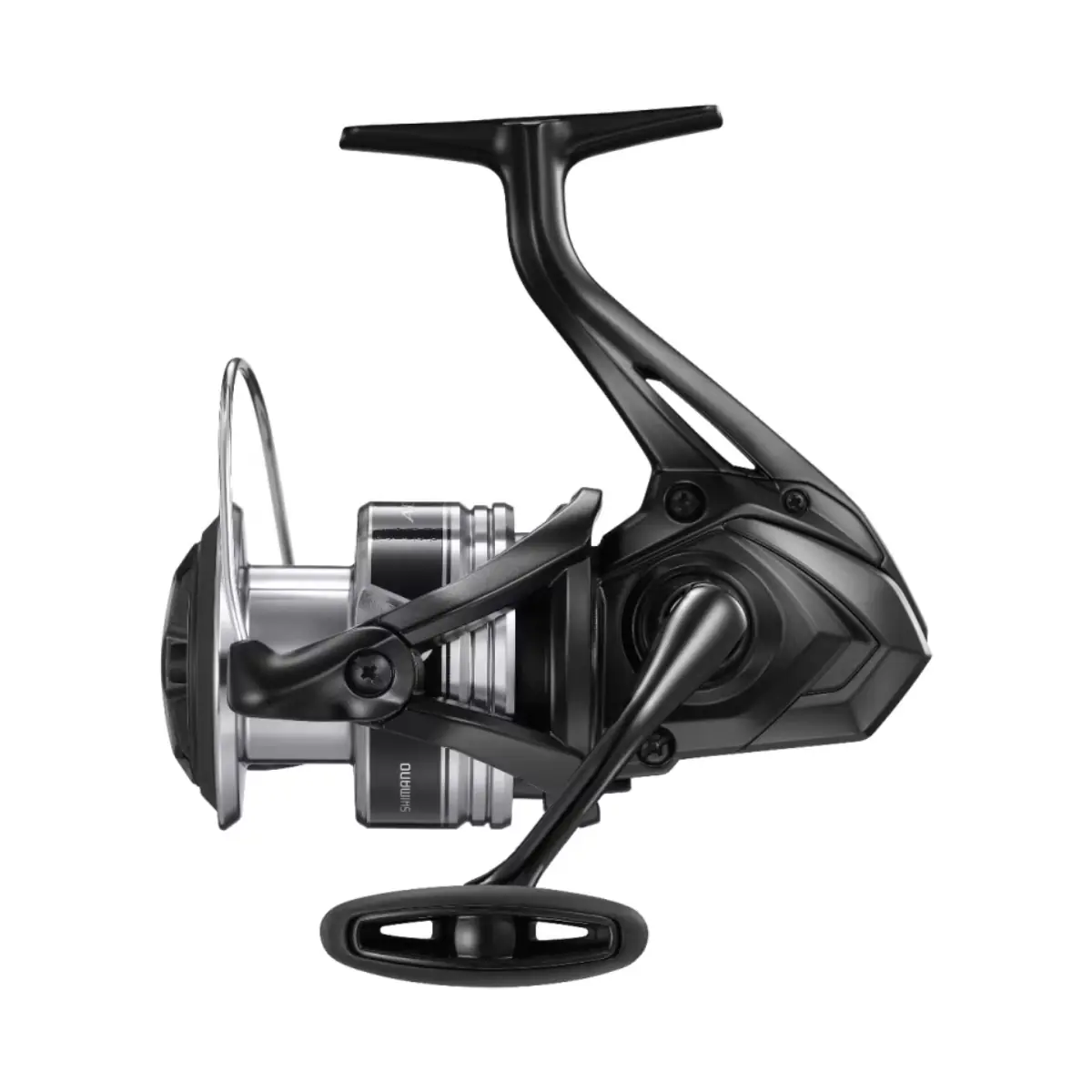

This page brings together the exploded view, the compatible parts and maintenance solutions for the SHIMANO 22 AERO BB C5000 (2022).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 8553 |
R18
dès 10,99 €
|
|
| 8554 |
R12
dès 13,29 €
|
|
| 12969 |
R19
dès 10,99 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 0582 | 108WH O Ring | O Ring | — |
| 0656 | 1074R Washer | Washer | — |
| 3455 | 10BXN Spool Washer | Spool Washer | — |
| 4798 | 103C6 Screw | Screw | — |
| 5941 | 10L9R Screw | Screw | — |
| 6684 | 10KFD Line Roller Spacer | Line Roller Spacer | — |
| 8916 | 10CH0 Click Spring | Click Spring | — |
| 9368 | 10JLF Line Roller | Line Roller | — |
| 9369 | 10PFP Washer | Washer | — |
| 10184 | 10PFH Line Roller Bushing | Line Roller Bushing | — |
| 10752 | 10TYE Bail Spring Guide A Support | Bail Spring Guide A Support | — |
| 11166 | 10KFA Spacer | Spacer | — |
| 13918 | 103LT Screw | Screw | — |
| 14830 | 10PH5 Screw | Screw | — |
| 14832 | 103MU Spool Support A | Spool Support A | — |
| 14833 | 10J04 Spool Support B | Spool Support B | — |
| 14887 | 1038D Drag Click | Drag Click | — |
| 14888 | 10JM5 Click Spring | Click Spring | — |
| 15425 | 1074K Pinion Gear Bushing | Pinion Gear Bushing | — |
| 16774 | 10BCE Key Washer | Key Washer | — |
| 16775 | 102ZD Washer | Washer | — |
| 16931 | 10B8N Drag Washers Retainer | Drag Washers Retainer | — |
| 17145 | 105B4 Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 17192 | 1067Y Rotor Nut | Rotor Nut | — |
| 17242 | 106P4 Bail Trip Lever | Bail Trip Lever | — |
| 17251 | 10QPN Roller Clutch Assembly | Roller Clutch Assembly | — |
| 17342 | 10ML7 Screw | Screw | — |
| 17372 | 10LCE Screw | Screw | — |
| 17415 | 106ZC Click Pin | Click Pin | — |
| 17682 | 1061L Bail Spring Guide A | Bail Spring Guide A | — |
| 17683 | 105R6 Bail Spring | Bail Spring | — |
| 17684 | 107AB Bail Spring Seat | Bail Spring Seat | — |
| 17690 | 104FV Friction Ring | Friction Ring | — |
| 17773 | 102ZG Drag Washer | Drag Washer |
Carbontex for Shimano Spinning S#26
13,99 €
|
| 17850 | 1020X Line Roller Collar | Line Roller Collar | — |
| 17879 | 10LA3 Screw | Screw | — |
| 17934 | 101SZ Main Shaft | Main Shaft | — |
| 17940 | 101ST Pinion Gear | Pinion Gear | — |
| 17979 | 106GA Counter Weight | Counter Weight | — |
| 17991 | 10LFL Screw | Screw | — |
| 18551 | 10K96 Washer | Washer | — |
| 18681 | 10PMH Screw | Screw | — |
| 20370 | 103DA Screw | Screw | — |
| 21106 | 103NA Screw | Screw | — |
| 21178 | 10EEZ Washer | Washer | — |
| 21812 | 10TB2 Anti-Reverse Cam | Anti-Reverse Cam | — |
| 21815 | 10TBH Bushing | Bushing | — |
| 21853 | 101HU Oscillating Guide | Oscillating Guide | — |
| 21855 | 101HS Oscillating Gear | Oscillating Gear | — |
| 21857 | 101UC Oscillating Slider | Oscillating Slider | — |
| 21859 | 101UB Drive Gear | Drive Gear | — |
| 22151 | 100S9 Screw | Screw | — |
| 22168 | 10R4A Bail Spring Cover | Bail Spring Cover | — |
| 22306 | 101AH Drag Knob | Drag Knob | — |
| 22311 | 101AC Screw | Screw | — |
| 22317 | 101AD Rotor Assembly | Rotor Assembly | — |
| 22318 | 10DH1 Bail Arm | Bail Arm | — |
| 22319 | 101V0 Bail Assembly | Bail Assembly | — |
| 22321 | 101AE Rear Protector | Rear Protector | — |
| 22322 | 10DGZ Side Cover | Side Cover | — |
| 22323 | 10DGV Handle Assembly | Handle Assembly | — |
| 22324 | 101AG Spool AERO BB C5000 | Spool AERO BB C5000 | — |
| 22325 | 10TKD Body | Body | — |
| 22340 | 100EH Screw | Screw | — |
| 22361 | 10R6J Spool Economizer (Accessory) | Spool Economizer (Accessory) | — |
| 22418 | 10RPB Bushing Spring | Bushing Spring | — |
| 22420 | 10RHG Anti-Reverse Lever | Anti-Reverse Lever | — |
