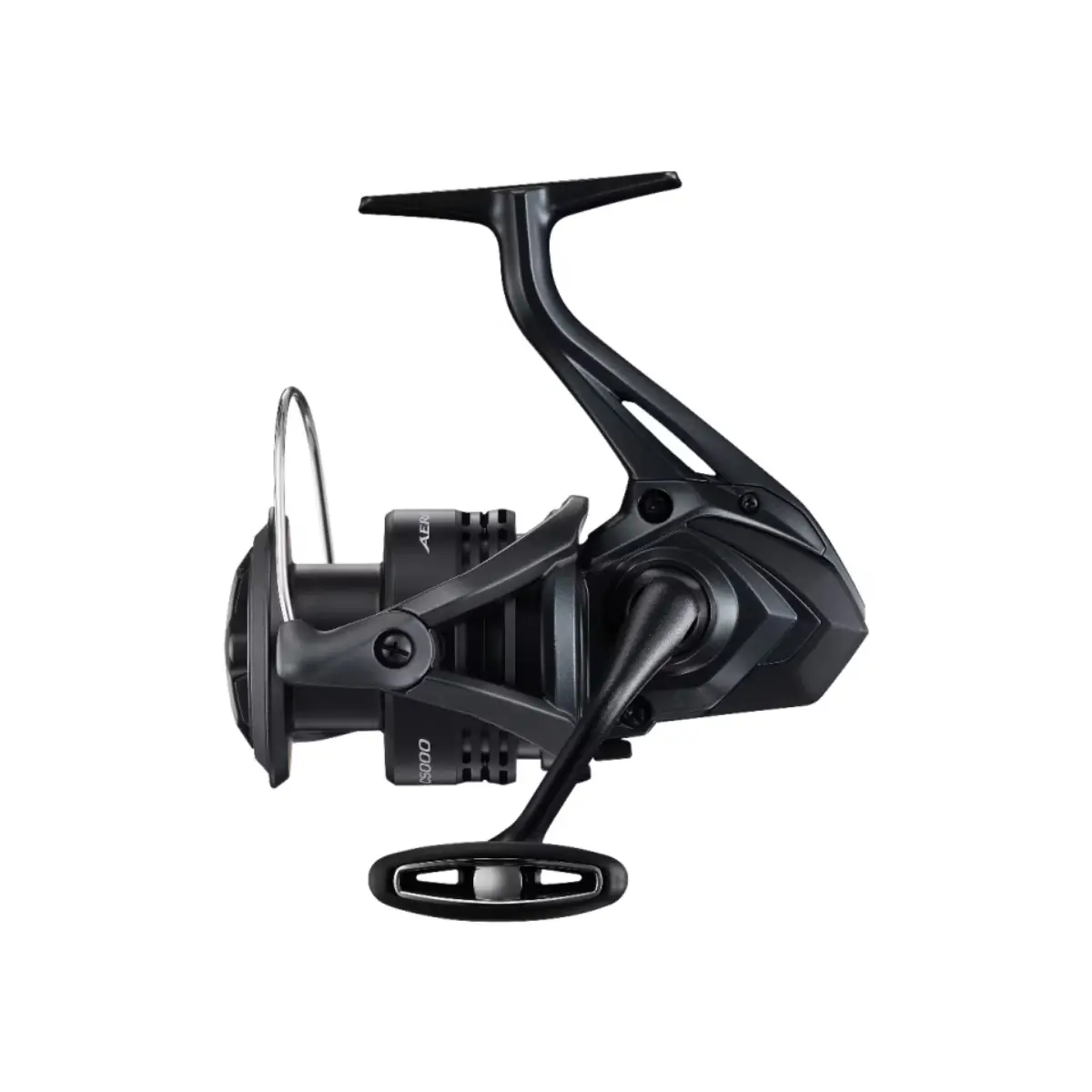

This page brings together the exploded view, the compatible parts and maintenance solutions for the SHIMANO 22 AERO C5000 (2022).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 8553 |
R18
dès 10,99 €
|
|
| 8554 |
R12
dès 13,29 €
|
|
| 12969 |
R19
dès 10,99 €
|
|
| 20644 |
R07
dès 10,39 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 0582 | 108WH O Ring | O Ring | — |
| 0656 | 1074R Washer | Washer | — |
| 3455 | 10BXN Spool Washer | Spool Washer | — |
| 4798 | 103C6 Screw | Screw | — |
| 5941 | 10L9R Screw | Screw | — |
| 6684 | 10KFD Line Roller Spacer | Line Roller Spacer | — |
| 8916 | 10CH0 Click Spring | Click Spring | — |
| 9369 | 10PFP Washer | Washer | — |
| 9564 | 10JLE Line Roller | Line Roller | — |
| 10184 | 10PFH Line Roller Bushing | Line Roller Bushing | — |
| 10752 | 10TYE Bail Spring Guide A Support | Bail Spring Guide A Support | — |
| 11166 | 10KFA Spacer | Spacer | — |
| 13918 | 103LT Screw | Screw | — |
| 14830 | 10PH5 Screw | Screw | — |
| 14832 | 103MU Spool Support A | Spool Support A | — |
| 14833 | 10J04 Spool Support B | Spool Support B | — |
| 14887 | 1038D Drag Click | Drag Click | — |
| 14888 | 10JM5 Click Spring | Click Spring | — |
| 16774 | 10BCE Key Washer | Key Washer | — |
| 16931 | 10B8N Drag Washers Retainer | Drag Washers Retainer | — |
| 17145 | 105B4 Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 17192 | 1067Y Rotor Nut | Rotor Nut | — |
| 17242 | 106P4 Bail Trip Lever | Bail Trip Lever | — |
| 17251 | 10QPN Roller Clutch Assembly | Roller Clutch Assembly | — |
| 17342 | 10ML7 Screw | Screw | — |
| 17372 | 10LCE Screw | Screw | — |
| 17415 | 106ZC Click Pin | Click Pin | — |
| 17682 | 1061L Bail Spring Guide A | Bail Spring Guide A | — |
| 17683 | 105R6 Bail Spring | Bail Spring | — |
| 17684 | 107AB Bail Spring Seat | Bail Spring Seat | — |
| 17690 | 104FV Friction Ring | Friction Ring | — |
| 17698 | 10PXZ Handle Knob Bushing | Handle Knob Bushing |
R05
dès 10,39 €
|
| 17700 | 10LFA Screw | Screw | — |
| 17773 | 102ZG Drag Washer | Drag Washer |
Carbontex for Shimano Spinning S#26
13,99 €
|
| 17850 | 1020X Line Roller Collar | Line Roller Collar | — |
| 17879 | 10LA3 Screw | Screw | — |
| 17934 | 101SZ Main Shaft | Main Shaft | — |
| 17940 | 101ST Pinion Gear | Pinion Gear | — |
| 17979 | 106GA Counter Weight | Counter Weight | — |
| 17991 | 10LFL Screw | Screw | — |
| 18551 | 10K96 Washer | Washer | — |
| 18681 | 10PMH Screw | Screw | — |
| 18741 | 10SYU Washer | Washer | — |
| 19745 | 104FH Washer | Washer | — |
| 20370 | 103DA Screw | Screw | — |
| 20710 | 10S3U Handle Knob Seal | Handle Knob Seal | — |
| 21106 | 103NA Screw | Screw | — |
| 21178 | 10EEZ Washer | Washer | — |
| 21812 | 10TB2 Anti-Reverse Cam | Anti-Reverse Cam | — |
| 21815 | 10TBH Bushing | Bushing | — |
| 21853 | 101HU Oscillating Guide | Oscillating Guide | — |
| 21855 | 101HS Oscillating Gear | Oscillating Gear | — |
| 21856 | 10241 O Ring | O Ring | — |
| 21857 | 101UC Oscillating Slider | Oscillating Slider | — |
| 21859 | 101UB Drive Gear | Drive Gear | — |
| 22145 | 100NG Rotor Assembly | Rotor Assembly | — |
| 22146 | 100H7 Bail Arm | Bail Arm | — |
| 22150 | 10T8C Side Cover | Side Cover | — |
| 22151 | 100S9 Screw | Screw | — |
| 22328 | 102XX Washer | Washer | — |
| 22340 | 100EH Screw | Screw | — |
| 22348 | 10R7A Bail Spring Cover | Bail Spring Cover | — |
| 22352 | 10R7E Rear Protector | Rear Protector | — |
| 22355 | 10R79 Handle Assembly | Handle Assembly | — |
| 22361 | 10R6J Spool Economizer (Accessory) | Spool Economizer (Accessory) | — |
| 22418 | 10RPB Bushing Spring | Bushing Spring | — |
| 22420 | 10RHG Anti-Reverse Lever | Anti-Reverse Lever | — |
| 22503 | 13AP1 Screw | Screw | — |
| 22506 | 13AP4 Drag Knob | Drag Knob | — |
| 22508 | 13AP6 Bail Assembly | Bail Assembly | — |
| 22511 | 13AP9 Spool AERO C5000 | Spool AERO C5000 | — |
| 22512 | 13APA Body | Body | — |
| 22513 | 13APB Spare Spool AERO C5000 | Spare Spool AERO C5000 | — |
