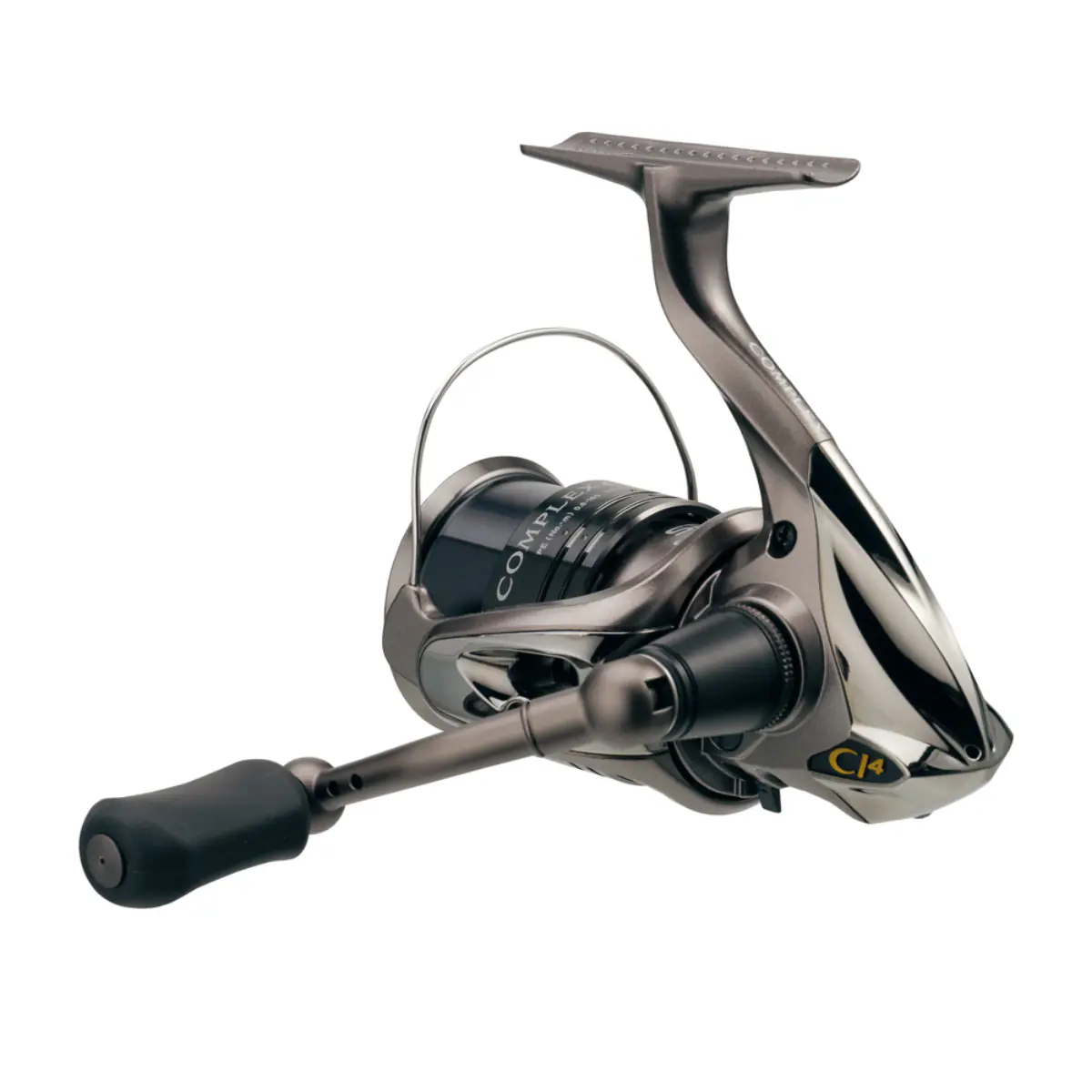

This page brings together the exploded view, the compatible parts and maintenance solutions for the SHIMANO 10 COMPLEX CI4 2500 HGS F6 (2010).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 100 |
R20
dès 11,96 €
|
|
| 101 |
R19
dès 10,99 €
|
|
| 102 |
R05
dès 10,39 €
|
|
| 103 |
R12
dès 13,29 €
|
|
| 104 |
R18
dès 10,99 €
|
|
| 0100 |
R20
dès 11,96 €
|
|
| 0101 |
R19
dès 10,99 €
|
|
| 0102 |
R05
dès 10,39 €
|
|
| 0103 |
R12
dès 13,29 €
|
|
| 0104 |
R18
dès 10,99 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 100 |
R20
dès 11,96 €
|
||
| 101 |
R19
dès 10,99 €
|
||
| 102 | — | ||
| 103 |
R12
dès 13,29 €
|
||
| 104 |
R18
dès 10,99 €
|
||
| 0001 | 13BFT Drag Knob | Drag Knob | — |
| 0002 | 10MZX Drag Washers Retainer | Drag Washers Retainer | — |
| 0003 | 13K0T Oval Washer | Oval Washer | — |
| 0004 | 102ZF Drag Washer | Drag Washer |
Carbontex for Shimano Spinning S#3
10,95 €
|
| 0005 | 10GEW Bearing Retainer | Bearing Retainer |
10GEW - Bearing Retainer - Shimano
1,99 €
|
| 0007 | 10MT3 Screw | Screw | — |
| 0008 | 1035Z Spool Pin | Spool Pin | — |
| 0009 | 10BNT Drag Click Spring | Drag Click Spring | — |
| 0010 | 10Q6D Spool pin cover | Spool pin cover | — |
| 0011 | 10Q6N Spool pin cover nameplate | Spool pin cover nameplate | — |
| 0012 | 103BY Screw | Screw | — |
| 0014 | 10BU7 Spool Washer | Spool Washer | — |
| 0015 | 107PE Bearing Guide Spacers | Bearing Guide Spacers | — |
| 0016 | 10PN2 Screw | Screw | — |
| 0017 | 10LTD Spool shaft bearing guide | Spool shaft bearing guide | — |
| 0019 | 10HYL Metal Washer | Metal Washer | — |
| 0020 | 107PK Drag Click Ratchet | Drag Click Ratchet | — |
| 0021 | 103ML Spool Support | Spool Support | — |
| 0022 | 107V3 Ratchet Spring | Ratchet Spring | — |
| 0023 | 13LJ2 Main shaft | Main shaft | — |
| 0024 | 1080V Rotor Nut | Rotor Nut | — |
| 0025 | 10G8N Bearing Spacer | Bearing Spacer | — |
| 0026 | 10KFD Line Roller Spacer | Line Roller Spacer | — |
| 0027 | 10KM5 Line Roller | Line Roller | — |
| 0028 | 10PFH Line Roller Bushing | Line Roller Bushing | — |
| 0030 | 107WY Washer | Washer | — |
| 0031 | 10CH0 Click Spring | Click Spring | — |
| 0033 | 105RG Bail Spring Guide A | Bail Spring Guide A | — |
| 0034 | 10TYE Bail Spring Guide A Support | Bail Spring Guide A Support | — |
| 0035 | 105FU Bail Spring | Bail Spring | — |
| 0036 | 13KDS Bail Arm | Bail Arm | — |
| 0037 | 10PMJ Screw | Screw | — |
| 0038 | 10LFH Screw | Screw | — |
| 0039 | 103DC Screw | Screw | — |
| 0040 | 1092C Bail Spring Cover | Bail Spring Cover | — |
| 0041 | 108TT Bail Trip Lever | Bail Trip Lever | — |
| 0042 | 13K8X Rotor | Rotor | — |
| 0043 | 103N8 Screw | Screw | — |
| 0044 | 10MEP Bail Hold Support Guard | Bail Hold Support Guard | — |
| 0045 | 13CSV Bail Assembly | Bail Assembly | — |
| 0046 | 13KGL Line Roller Support | Line Roller Support | — |
| 0047 | 10K4W Bail Hold Support Shaft | Bail Hold Support Shaft | — |
| 0048 | 10HZ1 Washer | Washer | — |
| 0049 | 10D1R Bail Hold Support Spacer | Bail Hold Support Spacer | — |
| 0050 | 107LD Washer | Washer | — |
| 0051 | 103BX Screw | Screw | — |
| 0052 | 10D26 Rotor Ring | Rotor Ring | — |
| 0053 | 103C5 Screw | Screw | — |
| 0056 | 13L7Q Pinion Gear | Pinion Gear | — |
| 0057 | 10D7L Friction Ring | Friction Ring | — |
| 0058 | 106H7 Worm Bushing Front | Worm Bushing Front | — |
| 0059 | 10535 Anti-Reverse Cam | Anti-Reverse Cam | — |
| 0060 | 10DCN Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 0061 | 107DZ Bail Trip Strike | Bail Trip Strike | — |
| 0062 | 10ANN Anti-Reverse Lever | Anti-Reverse Lever | — |
| 0063 | 10PRU Screw | Screw | — |
| 0064 | 10J0M Stopper knob cover | Stopper knob cover | — |
| 0065 | 10H6G Idle Gear | Idle Gear | — |
| 0066 | 13CXN Drive Gear | Drive Gear | — |
| 0067 | 10JDB Washer | Washer | — |
| 0069 | 10LS9 Screw | Screw | — |
| 0071 | 10M2S Fixing bolt | Fixing bolt | — |
| 0072 | 10L6H Fixing bolt | Fixing bolt | — |
| 0073 | 104KM Oil Cap | Oil Cap | — |
| 0074 | 13MF5 Handle Shaft Cover | Handle Shaft Cover | — |
| 0075 | 1052H Disc Spring | Disc Spring | — |
| 0076 | 10FJ6 Washer | Washer | — |
| 0077 | 13DXY Handle | Handle | — |
| 0078 | 10368 Handle Knob | Handle Knob | — |
| 0079 | 104FH Washer | Washer | — |
| 0080 | 103E9 Screw | Screw | — |
| 0081 | 13MA8 Handle Knob Seal | Handle Knob Seal | — |
| 0082 | 13EFJ Handle Assembly | Handle Assembly | — |
| 0083 | 103KT Fixing bolt | Fixing bolt | — |
| 0084 | 13ENF Rear Protector | Rear Protector | — |
| 0085 | 10LV7 Screw | Screw | — |
| 0086 | 10HAA Oscillating Pawl Cover | Oscillating Pawl Cover | — |
| 0087 | 10703 Metal Washer | Metal Washer | — |
| 0088 | 10JXK Oscillating Slider Bushing | Oscillating Slider Bushing | — |
| 0090 | 10G5N Oscillating Slider | Oscillating Slider | — |
| 0091 | 103GP Screw | Screw | — |
| 0092 | 10LHQ Screw | Screw | — |
| 0093 | 10BF4 Worm Shaft Retainer | Worm Shaft Retainer | — |
| 0094 | 106GS Worm Bushing Rear | Worm Bushing Rear | — |
| 0095 | 1059T Washer | Washer | — |
| 0096 | 102TZ Worm Shaft | Worm Shaft | — |
| 0097 | 1033A Oscillating Guide | Oscillating Guide | — |
| 0098 | 13KYB Legless body | Legless body | — |
| 0099 | 10P4K Screw | Screw | — |
| 0100 | 104JT Ball Bearing | Ball Bearing |
R20
dès 11,96 €
|
| 0101 | 104PP Ball Bearing | Ball Bearing |
R19
dès 10,99 €
|
| 0102 | 104VX Ball Bearing | Ball Bearing |
R05
dès 10,39 €
|
| 0103 | 104Q5 Ball Bearing | Ball Bearing |
R12
dès 13,29 €
|
| 0104 | 104JD Ball Bearing | Ball Bearing |
R18
dès 10,99 €
|
| 0105 | 106UX Click Pin | Click Pin | — |
| 0106 | 10QPB Roller Clutch Assembly | Roller Clutch Assembly | — |
| 0107 | 106VJ Oscillating Pawl | Oscillating Pawl | — |
| 0111 | 13R39 Reel Stand | Reel Stand | — |
| 0121 | 13C4F Spool Assembly | Spool Assembly | — |
| 0122 | 13DMC Kifta with legs | Kifta with legs | — |
| *F01 | 13QN1 Reel Bag | Reel Bag | — |
| ITDG | 10QS5 Thread Stopper Guide | Thread Stopper Guide | — |
