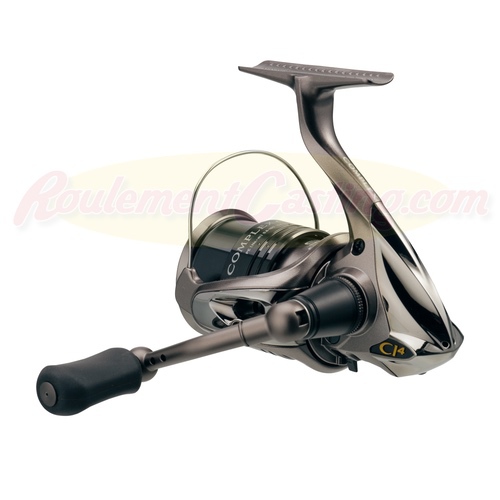

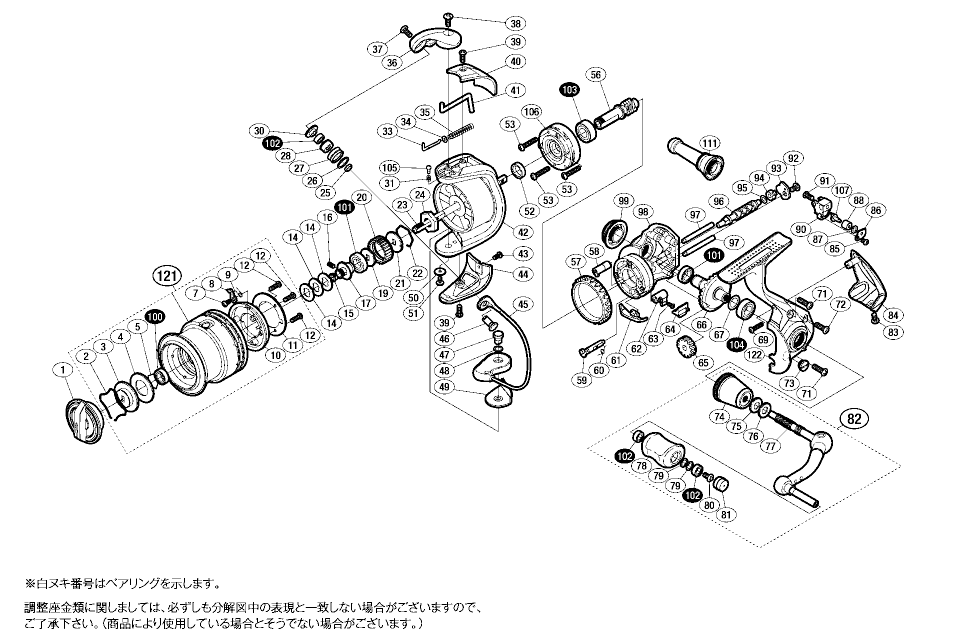

Cette page regroupe la vue éclatée, les pièces compatibles et les solutions d'entretien pour le SHIMANO 10 COMPLEX CI4 2500 HGS F6 (2010).
Retrouvez rapidement les roulements de bobine, roulements à billes, roulement de galet, freins Carbontex, pièces détachées d'origine et accessoires associés à ce modèle.
| N° Schéma | Référence / Pièce | Action |
|---|---|---|
| 100 |
R20
dès 11,96 €
|
|
| 101 |
R19
dès 10,99 €
|
|
| 102 |
R05
dès 10,39 €
|
|
| 103 |
R12
dès 13,29 €
|
|
| 104 |
R18
dès 10,99 €
|
| N° Schéma | Référence constructeur | Description | Commande |
|---|---|---|---|
| 0001 | 13BFT Drag Knob | Drag Knob | — |
| 0002 | 10MZX Drag Washers Retainer | Drag Washers Retainer | — |
| 0003 | 13K0T Oval Washer | Oval Washer | — |
| 0004 | 102ZF Drag Washer | Drag Washer |
Carbontex pour Shimano Spinning S#3
10,95 €
|
| 0005 | 10GEW Bearing Retainer | Bearing Retainer | — |
| 0007 | 10MT3 Screw | Screw | — |
| 0008 | 1035Z Spool Pin | Spool Pin | — |
| 0009 | 10BNT Drag Click Spring | Drag Click Spring | — |
| 0010 | 10Q6D Spool pin cover | Spool pin cover | — |
| 0011 | 10Q6N Spool pin cover nameplate | Spool pin cover nameplate | — |
| 0012 | 103BY Screw | Screw | — |
| 0014 | 10BU7 Spool Washer | Spool Washer | — |
| 0015 | 107PE Bearing Guide Spacers | Bearing Guide Spacers | — |
| 0016 | 10PN2 Screw | Screw | — |
| 0017 | 10LTD Spool shaft bearing guide | Spool shaft bearing guide | — |
| 0019 | 10HYL Metal Washer | Metal Washer | — |
| 0020 | 107PK Drag Click Ratchet | Drag Click Ratchet | — |
| 0021 | 103ML Spool Support | Spool Support | — |
| 0022 | 107V3 Ratchet Spring | Ratchet Spring | — |
| 0023 | 13LJ2 Main shaft | Main shaft | — |
| 0024 | 1080V Rotor Nut | Rotor Nut | — |
| 0025 | 10G8N Bearing Spacer | Bearing Spacer | — |
| 0026 | 10KFD Line Roller Spacer | Line Roller Spacer | — |
| 0027 | 10KM5 Line Roller | Line Roller | — |
| 0028 | 10PFH Line Roller Bushing | Line Roller Bushing | — |
| 0030 | 107WY Washer | Washer | — |
| 0031 | 10CH0 Click Spring | Click Spring | — |
| 0033 | 105RG Bail Spring Guide A | Bail Spring Guide A | — |
| 0034 | 10TYE Bail Spring Guide A Support | Bail Spring Guide A Support | — |
| 0035 | 105FU Bail Spring | Bail Spring | — |
| 0036 | 13KDS Bail Arm | Bail Arm | — |
| 0037 | 10PMJ Screw | Screw | — |
| 0038 | 10LFH Screw | Screw | — |
| 0039 | 103DC Screw | Screw | — |
| 0040 | 1092C Bail Spring Cover | Bail Spring Cover | — |
| 0041 | 108TT Bail Trip Lever | Bail Trip Lever | — |
| 0042 | 13K8X Rotor | Rotor | — |
| 0043 | 103N8 Screw | Screw | — |
| 0044 | 10MEP Bail Hold Support Guard | Bail Hold Support Guard | — |
| 0045 | 13CSV Bail Assembly | Bail Assembly | — |
| 0046 | 13KGL Line Roller Support | Line Roller Support | — |
| 0047 | 10K4W Bail Hold Support Shaft | Bail Hold Support Shaft | — |
| 0048 | 10HZ1 Washer | Washer | — |
| 0049 | 10D1R Bail Hold Support Spacer | Bail Hold Support Spacer | — |
| 0050 | 107LD Washer | Washer | — |
| 0051 | 103BX Screw | Screw | — |
| 0052 | 10D26 Rotor Ring | Rotor Ring | — |
| 0053 | 103C5 Screw | Screw | — |
| 0056 | 13L7Q Pinion Gear | Pinion Gear | — |
| 0057 | 10D7L Friction Ring | Friction Ring | — |
| 0058 | 106H7 Worm Bushing Front | Worm Bushing Front | — |
| 0059 | 10535 Anti-Reverse Cam | Anti-Reverse Cam | — |
| 0060 | 10DCN Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 0061 | 107DZ Bail Trip Strike | Bail Trip Strike | — |
| 0062 | 10ANN Anti-Reverse Lever | Anti-Reverse Lever | — |
| 0063 | 10PRU Screw | Screw | — |
| 0064 | 10J0M Stopper knob cover | Stopper knob cover | — |
| 0065 | 10H6G Idle Gear | Idle Gear | — |
| 0066 | 13CXN Drive Gear | Drive Gear | — |
| 0067 | 10JDB Washer | Washer | — |
| 0069 | 10LS9 Screw | Screw | — |
| 0071 | 10M2S Fixing bolt | Fixing bolt | — |
| 0072 | 10L6H Fixing bolt | Fixing bolt | — |
| 0073 | 104KM Oil Cap | Oil Cap | — |
| 0074 | 13MF5 Handle Shaft Cover | Handle Shaft Cover | — |
| 0075 | 1052H Disc Spring | Disc Spring | — |
| 0076 | 10FJ6 Washer | Washer | — |
| 0077 | 13DXY Handle | Handle | — |
| 0078 | 10368 Handle Knob | Handle Knob | — |
| 0079 | 104FH Washer | Washer | — |
| 0080 | 103E9 Screw | Screw | — |
| 0081 | 13MA8 Handle Knob Seal | Handle Knob Seal | — |
| 0082 | 13EFJ Handle Assembly | Handle Assembly | — |
| 0083 | 103KT Fixing bolt | Fixing bolt | — |
| 0084 | 13ENF Rear Protector | Rear Protector | — |
| 0085 | 10LV7 Screw | Screw | — |
| 0086 | 10HAA Oscillating Pawl Cover | Oscillating Pawl Cover | — |
| 0087 | 10703 Metal Washer | Metal Washer | — |
| 0088 | 10JXK Oscillating Slider Bushing | Oscillating Slider Bushing | — |
| 0090 | 10G5N Oscillating Slider | Oscillating Slider | — |
| 0091 | 103GP Screw | Screw | — |
| 0092 | 10LHQ Screw | Screw | — |
| 0093 | 10BF4 Worm Shaft Retainer | Worm Shaft Retainer | — |
| 0094 | 106GS Worm Bushing Rear | Worm Bushing Rear | — |
| 0095 | 1059T Washer | Washer | — |
| 0096 | 102TZ Worm Shaft | Worm Shaft | — |
| 0097 | 1033A Oscillating Guide | Oscillating Guide | — |
| 0098 | 13KYB Legless body | Legless body | — |
| 0099 | 10P4K Screw | Screw | — |
| 0100 | 104JT Ball Bearing | Ball Bearing |
R20
dès 11,96 €
|
| 0101 | 104PP Ball Bearing | Ball Bearing |
R19
dès 10,99 €
|
| 0102 | 104VX Ball Bearing | Ball Bearing |
R05
dès 10,39 €
|
| 0103 | 104Q5 Ball Bearing | Ball Bearing |
R12
dès 13,29 €
|
| 0104 | 104JD Ball Bearing | Ball Bearing |
R18
dès 10,99 €
|
| 0105 | 106UX Click Pin | Click Pin | — |
| 0106 | 10QPB Roller Clutch Assembly | Roller Clutch Assembly | — |
| 0107 | 106VJ Oscillating Pawl | Oscillating Pawl | — |
| 0111 | 13R39 Reel Stand | Reel Stand | — |
| 0121 | 13C4F Spool Assembly | Spool Assembly | — |
| 0122 | 13DMC Kifta with legs | Kifta with legs | — |
| *F01 | 13QN1 Reel Bag | Reel Bag | — |
| ITDG | 10QS5 Thread Stopper Guide | Thread Stopper Guide | — |
