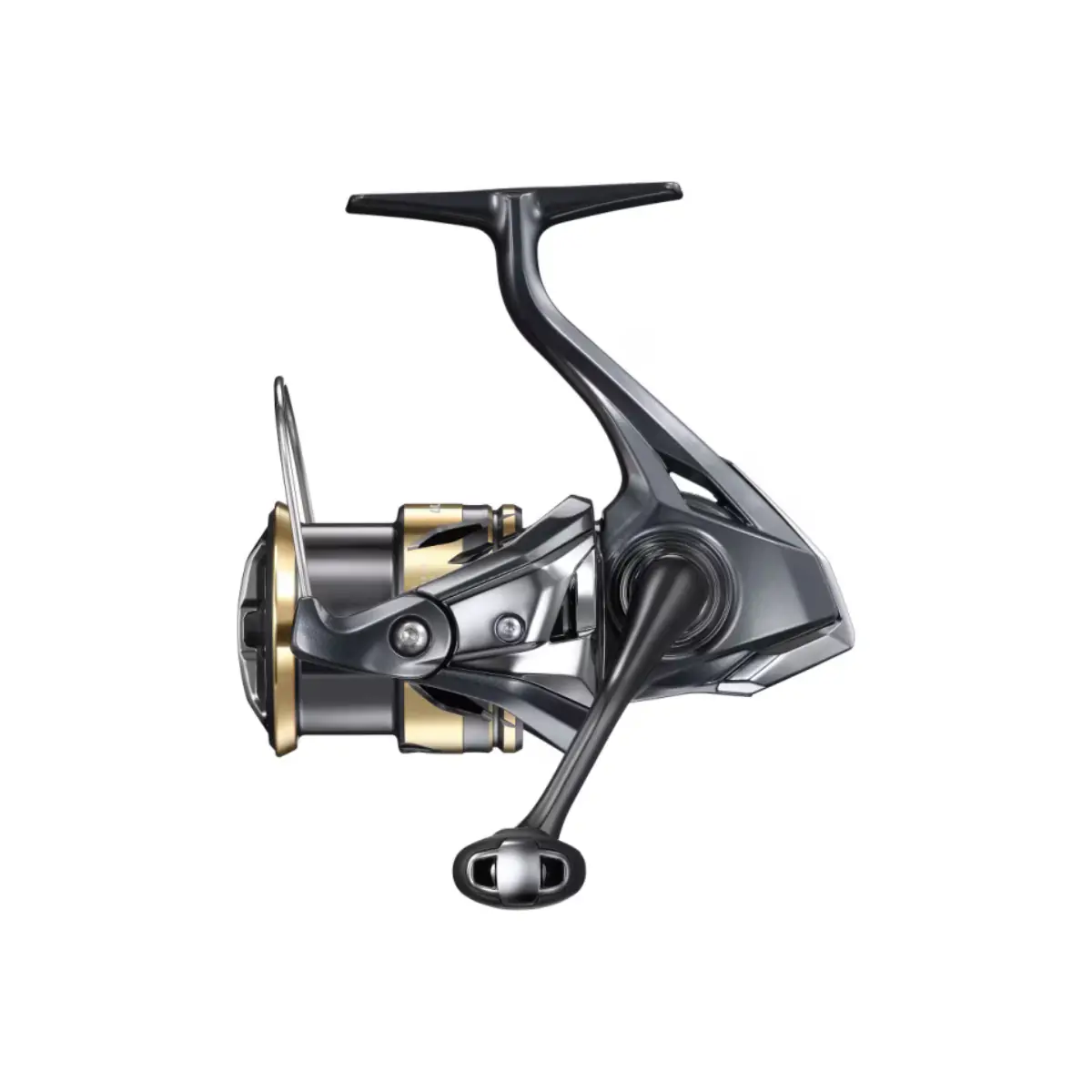

This page brings together the exploded view, the compatible parts and maintenance solutions for the SHIMANO 25 ULTEGRA FD 2500S HG (2025).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 36 |
R05
dès 10,39 €
|
|
| 59 |
R18
dès 10,99 €
|
|
| 63 |
R07
dès 10,39 €
|
|
| 77 |
R21
dès 13,29 €
|
|
| 95 |
R19
dès 10,99 €
|
|
| 99 |
R04
dès 8,79 €
|
|
| 108 |
R05
dès 10,39 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 36 | 104VX Ball Bearing | Ball Bearing |
R05
dès 10,39 €
|
| 59 | 10DZB Ball Bearing | Ball Bearing |
R18
dès 10,99 €
|
| 63 | 104JZ Ball Bearing | Ball Bearing |
R07
dès 10,39 €
|
| 77 | 1009C Worm Bushing Rear | Worm Bushing Rear |
R21
dès 13,29 €
|
| 95 | 107FA Ball Bearing | Ball Bearing |
R19
dès 10,99 €
|
| 99 | 10EX6 Ball Bearing | Ball Bearing |
R04
dès 8,79 €
|
| 108 | 10PXZ Handle Knob Bushing | Handle Knob Bushing |
R05
dès 10,39 €
|
| 1 | 13YX6 Drag Knob | Drag Knob | — |
| 2 | 147WB Spool Assembly | Spool Assembly | — |
| 3 | 10B8N Drag Washers Retainer | Drag Washers Retainer | — |
| 4 | 10BBR Key Washer | Key Washer | — |
| 5 | 102ZQ Drag Washer | Drag Washer |
Carbontex for Shimano Spinning S#3
10,95 €
|
| 8 | 10DS4 Drag Click | Drag Click | — |
| 9 | 10DS5 Drag Click Spring | Drag Click Spring | — |
| 10 | 10TRB Screw | Screw | — |
| 11 | 10BXN Spool Washer | Spool Washer | — |
| 12 | 103MU Spool Support A | Spool Support A | — |
| 13 | 10J04 Spool Support B | Spool Support B | — |
| 14 | 103GW Screw | Screw | — |
| 15 | 1076N Rotor Nut Lock Plate | Rotor Nut Lock Plate | — |
| 16 | 1017W Bearing Water Proof | Bearing Water Proof | — |
| 17 | 100RU Washer | Washer | — |
| 18 | 10RDL Main Shaft Collar | Main Shaft Collar | — |
| 19 | 10DXE O Ring | O Ring | — |
| 20 | 1427D Rotor Nut | Rotor Nut | — |
| 21 | 14802 Rotor Brim | Rotor Brim | — |
| 22 | 147ZY Rotor | Rotor | — |
| 23 | 10HE7 Click Spring | Click Spring | — |
| 24 | 106ZC Click Pin | Click Pin | — |
| 25 | 1427G Counter Weight | Counter Weight | — |
| 26 | 103KS Screw | Screw | — |
| 27 | 1427H Bail Spring Cover | Bail Spring Cover | — |
| 28 | 10PS2 Screw | Screw | — |
| 29 | 14800 Bail Arm | Bail Arm | — |
| 30 | 10KF9 Washer | Washer | — |
| 31 | 10K96 Washer | Washer | — |
| 32 | 10PS5 Screw | Screw | — |
| 33 | 10PMH Screw | Screw | — |
| 34 | 1427J Bail Arm Fin | Bail Arm Fin | — |
| 35 | 10187 Line Roller Collar | Line Roller Collar | — |
| 37 | 1009K Line Roller Bushing | Line Roller Bushing | — |
| 38 | 1009E O Ring | O Ring | — |
| 39 | 1009A Line Roller | Line Roller | — |
| 40 | 10RFZ Line Roller Spacer | Line Roller Spacer | — |
| 41 | 10QY7 Bearing Spacer | Bearing Spacer | — |
| 42 | 149DL Bail Assembly | Bail Assembly | — |
| 43 | 10TPC Line Roller Support | Line Roller Support | — |
| 44 | 1009B Bail Spring Guide A Bush | Bail Spring Guide A Bush | — |
| 45 | 10SAN Bail Spring Guide A | Bail Spring Guide A | — |
| 46 | 101D9 Spring Guide A Support | Spring Guide A Support | — |
| 47 | 105R6 Bail Spring | Bail Spring | — |
| 48 | 107AB Bail Spring Seat | Bail Spring Seat | — |
| 49 | 1427L Bail Trip Lever | Bail Trip Lever | — |
| 50 | 1427M Bail Hold Support Guard | Bail Hold Support Guard | — |
| 51 | 101D5 Rotor Ring | Rotor Ring | — |
| 52 | 10QXQ Friction Ring | Friction Ring | — |
| 53 | 100WT Screw | Screw | — |
| 54 | 10S2L Roller Clutch Assembly | Roller Clutch Assembly | — |
| 55 | 1009Z O Ring | O Ring | — |
| 56 | 1009Y Roller Clutch Inner | Roller Clutch Inner | — |
| 57 | 100WY Screw | Screw | — |
| 58 | 10DWD Bearing Retainer | Bearing Retainer | — |
| 60 | 1428A Pinion Gear | Pinion Gear | — |
| 61 | 10HE5 Washer | Washer | — |
| 62 | 10SYU Washer | Washer | — |
| 64 | 1427P Intermediate gear spring | Intermediate gear spring | — |
| 65 | 1427Q Intermediate gear shaft | Intermediate gear shaft | — |
| 66 | 10LZG Screw | Screw | — |
| 67 | 10M31 Screw | Screw | — |
| 68 | 10TP1 Screw | Screw | — |
| 69 | 108WH O Ring | O Ring | — |
| 70 | 1427T Handle Screw Cap | Handle Screw Cap | — |
| 71 | 146AR Fixing bolt | Fixing bolt | — |
| 72 | 14805 Body | Body | — |
| 73 | 1427V Oscillating Guide | Oscillating Guide | — |
| 74 | 1427W Worm Shaft | Worm Shaft | — |
| 75 | 10ECK Washer | Washer | — |
| 76 | 10K9C Washer | Washer | — |
| 78 | 1427X Worm Shaft Retainer | Worm Shaft Retainer | — |
| 79 | 10QG5 Screw | Screw | — |
| 80 | 141HU Rear Protector | Rear Protector | — |
| 81 | 10PRZ Screw | Screw | — |
| 82 | 149DM Main Shaft | Main Shaft | — |
| 83 | 1018D Oscillating Pawl | Oscillating Pawl | — |
| 84 | 1070D Spacer | Spacer | — |
| 85 | 100WX O Ring | O Ring | — |
| 86 | 1009L Oscillating Slider Bushing | Oscillating Slider Bushing | — |
| 87 | 10182 Oscillating Pawl Cover | Oscillating Pawl Cover | — |
| 88 | 1055H Screw | Screw | — |
| 89 | 1427Y Bushing | Bushing | — |
| 90 | 10DK0 Idle Gear | Idle Gear | — |
| 91 | 147W5 Intermediate gear (small) | Intermediate gear (small) | — |
| 92 | 10G6D Washer | Washer | — |
| 93 | 10TBA Washer | Washer | — |
| 94 | 147VA Intermediate gear (large) | Intermediate gear (large) | — |
| 96 | 1009S O Ring | O Ring | — |
| 97 | 1428C Drive Gear | Drive Gear | — |
| 98 | 100UL Screw | Screw | — |
| 100 | 1022D Washer | Washer | — |
| 101 | 14282 Bail Trip Strike | Bail Trip Strike | — |
| 102 | 1009W Flange Water Proof | Flange Water Proof | — |
| 103 | 149DS Side Cover Assembly | Side Cover Assembly | — |
| 104 | 1493A Handle Assembly | Handle Assembly | — |
| 105 | 10PXV Handle Shaft Seal | Handle Shaft Seal | — |
| 106 | 149DP Handle Shaft Cover Assembly | Handle Shaft Cover Assembly | — |
| 107 | 10E5X Washer | Washer | — |
| 109 | 104FH Washer | Washer | — |
| 110 | 10LFA Screw | Screw | — |
| 111 | 10TNJ Handle Knob Seal | Handle Knob Seal | — |
| 116 | 149KJ Handle Shank Assembly | Handle Shank Assembly | — |
| 117 | 10328 Handle Knob | Handle Knob | — |
| 501 | 14287 Bail Arm Fin | Bail Arm Fin | — |
