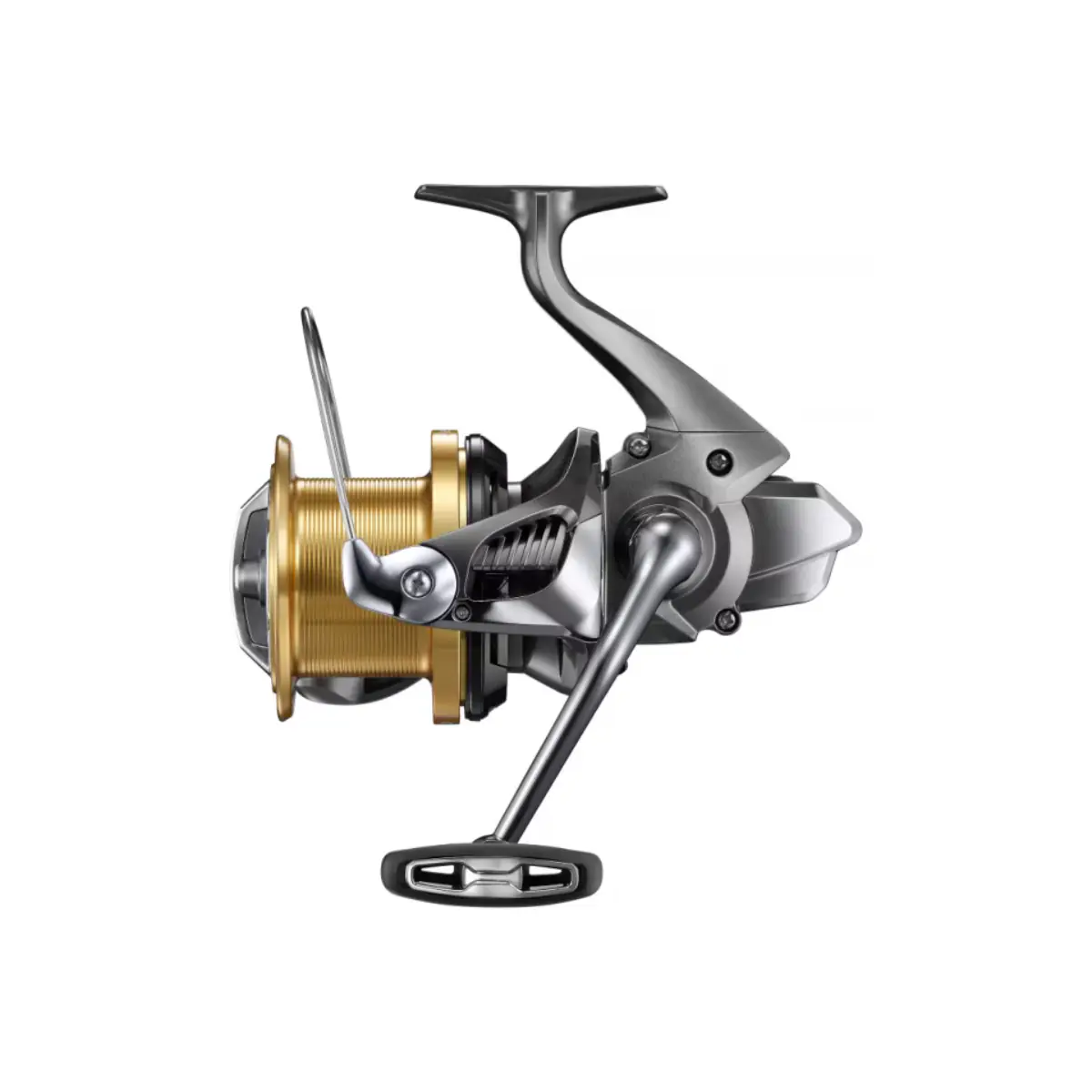

This page brings together the exploded view, the compatible parts and maintenance solutions for the SHIMANO 25 AERLEX 14000 XSC (2025).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 50 |
R15
dès 13,56 €
|
|
| 65 |
R13
dès 12,76 €
|
|
| 89 |
R21
dès 13,29 €
|
|
| 70 |
R06
dès 8,79 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 50 | 104PX Ball Bearing | Ball Bearing |
R15
dès 13,56 €
|
| 65 | 107FL Ball Bearing | Ball Bearing |
R13
dès 12,76 €
|
| 89 | 106M3 Worm Bushing Rear | Worm Bushing Rear |
R21
dès 13,29 €
|
| 1 | 148PF Drag Knob | Drag Knob | — |
| 2 | 10MZP Drag Washers Retainer | Drag Washers Retainer | — |
| 3 | 10PLN Washer | Washer | — |
| 4 | 1031E Drag Washer | Drag Washer |
Carbontex for Shimano Spinning S#24
19,99 €
|
| 5 | 10N2H Washer | Washer | — |
| 6 | 10BCF Key Washer | Key Washer | — |
| 7 | 10ATX Line Clip | Line Clip | — |
| 8 | 10JQU Line Clip Holder | Line Clip Holder | — |
| 9 | 10B03 Line Clip Spring | Line Clip Spring | — |
| 10 | 105NC E Lock | E Lock |
E-Ring 2.0 mm
1,60 €
|
| 11 | 1038F Drag Click | Drag Click | — |
| 12 | 102A2 Drag Click Spring | Drag Click Spring | — |
| 13 | 10A6G Screw | Screw | — |
| 14 | 148PH Spool Assembly | Spool Assembly | — |
| 15 | 106VN Spool Washer | Spool Washer | — |
| 16 | 101Y5 Spool Support A | Spool Support A | — |
| 17 | 10GH5 Spool Support B | Spool Support B | — |
| 18 | 149XK Anti-Fall Collar Assembly | Anti-Fall Collar Assembly | — |
| 19 | 105RZ E Lock | E Lock | — |
| 20 | 103MD Main Shaft | Main Shaft | — |
| 21 | 107VW Rotor Nut | Rotor Nut | — |
| 22 | 10KF7 Washer | Washer | — |
| 23 | 10HAR Line Roller Collar | Line Roller Collar | — |
| 24 | 10PFK Line Roller Bushing | Line Roller Bushing | — |
| 25 | 10JLZ Line Roller | Line Roller | — |
| 26 | 10KFF Line Roller Spacer | Line Roller Spacer | — |
| 27 | 107WS Washer | Washer | — |
| 28 | 105YW Bail Spring Guide A | Bail Spring Guide A | — |
| 29 | 10HDL Bail Spring Guide A Support | Bail Spring Guide A Support | — |
| 30 | 105LK Bail Spring | Bail Spring | — |
| 31 | 107A8 Bail Spring Guide B | Bail Spring Guide B | — |
| 32 | 148PM Bail Arm | Bail Arm | — |
| 33 | 10K91 Screw | Screw | — |
| 34 | 103J1 Screw | Screw | — |
| 35 | 10K96 Washer | Washer | — |
| 36 | 10KFA Spacer | Spacer | — |
| 37 | 10LFF Screw | Screw | — |
| 38 | 1087Q Bail Spring Cover | Bail Spring Cover | — |
| 39 | 106PM Lever Spring | Lever Spring | — |
| 40 | 1085E Bail Trip Lever | Bail Trip Lever | — |
| 41 | 10764 Washer | Washer | — |
| 42 | 149E4 Rotor Assembly | Rotor Assembly | — |
| 43 | 10L1T Screw | Screw | — |
| 44 | 10MK3 Bail Hold Support Guard | Bail Hold Support Guard | — |
| 45 | 149E5 Bail Assembly | Bail Assembly | — |
| 46 | 106HS Roller Clutch Ring | Roller Clutch Ring | — |
| 47 | 10LJ3 Screw | Screw | — |
| 48 | 10QL4 Roller Clutch Assembly | Roller Clutch Assembly | — |
| 49 | 106MU Washer | Washer | — |
| 51 | 10BV7 Pinion Gear | Pinion Gear | — |
| 52 | 10HHX Washer | Washer | — |
| 53 | 142YY Pinion Bushing | Pinion Bushing | — |
| 54 | 10H4E Idle Gear C Shaft | Idle Gear C Shaft | — |
| 55 | 10CKK Idle Gear B Shaft | Idle Gear B Shaft | — |
| 56 | 106M2 Worm Bushing Front | Worm Bushing Front | — |
| 57 | 1053M Anti-Reverse Cam | Anti-Reverse Cam | — |
| 58 | 10DCS Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 59 | 10G2T Anti-Reverse Lever | Anti-Reverse Lever | — |
| 60 | 10LCY Screw | Screw | — |
| 61 | 10HBN Idle Gear | Idle Gear | — |
| 62 | 10C2D Drive Gear Bushing | Drive Gear Bushing |
R13
dès 12,76 €
|
| 63 | 109FQ Drive Gear | Drive Gear | — |
| 64 | 10DHR Washer | Washer | — |
| 66 | 148PQ Side Cover | Side Cover | — |
| 67 | 10MBR Screw | Screw | — |
| 68 | 10L6Q Screw | Screw | — |
| 69 | 104FH Washer | Washer | — |
| 70 | 104UJ Handle Knob Bushing | Handle Knob Bushing |
R06
dès 8,79 €
|
| 71 | 10EU0 Handle Knob Bushing A | Handle Knob Bushing A | — |
| 72 | 10LFA Screw | Screw | — |
| 73 | 10SHY Handle Knob Seal | Handle Knob Seal | — |
| 74 | 148PN Handle Assembly | Handle Assembly | — |
| 75 | 10S6U Screw | Screw | — |
| 76 | 10HAD Oscillating Pawl Cover | Oscillating Pawl Cover | — |
| 77 | 10K98 Spacer | Spacer | — |
| 78 | 10JUY Oscillating Slider Bushing | Oscillating Slider Bushing |
R33
dès 11,96 €
|
| 79 | 10DMP Oscillating Pawl | Oscillating Pawl | — |
| 80 | 10ML9 Screw | Screw | — |
| 81 | 10G62 Oscillating Slider | Oscillating Slider | — |
| 82 | 100EY Idle Gear B | Idle Gear B | — |
| 83 | 10S81 Idle Gear B Small | Idle Gear B Small | — |
| 84 | 10H4C Idle Gear C | Idle Gear C | — |
| 85 | 10LHY Screw | Screw | — |
| 86 | 14445 Rear Protector | Rear Protector | — |
| 87 | 10L22 Screw | Screw | — |
| 88 | 10AT4 Worm Shaft Retainer | Worm Shaft Retainer | — |
| 90 | 10ECK Washer | Washer | — |
| 91 | 10K9C Washer | Washer | — |
| 92 | 10STT Worm Shaft | Worm Shaft | — |
| 93 | 104M7 Oscillating Guide B | Oscillating Guide B | — |
| 94 | 10LHN Screw | Screw | — |
| 95 | 10357 Oscillating Guide A | Oscillating Guide A | — |
| 96 | 149E6 Body | Body | — |
| 97 | 10S0B Oil Cap | Oil Cap | — |
| 98 | 10RDA Screw | Screw | — |
| Diagram No. | Part number | Action |
|---|---|---|
| 10 |
E-Ring 2.0 mm
1,60 €
|
|
| 19 | — | — |
