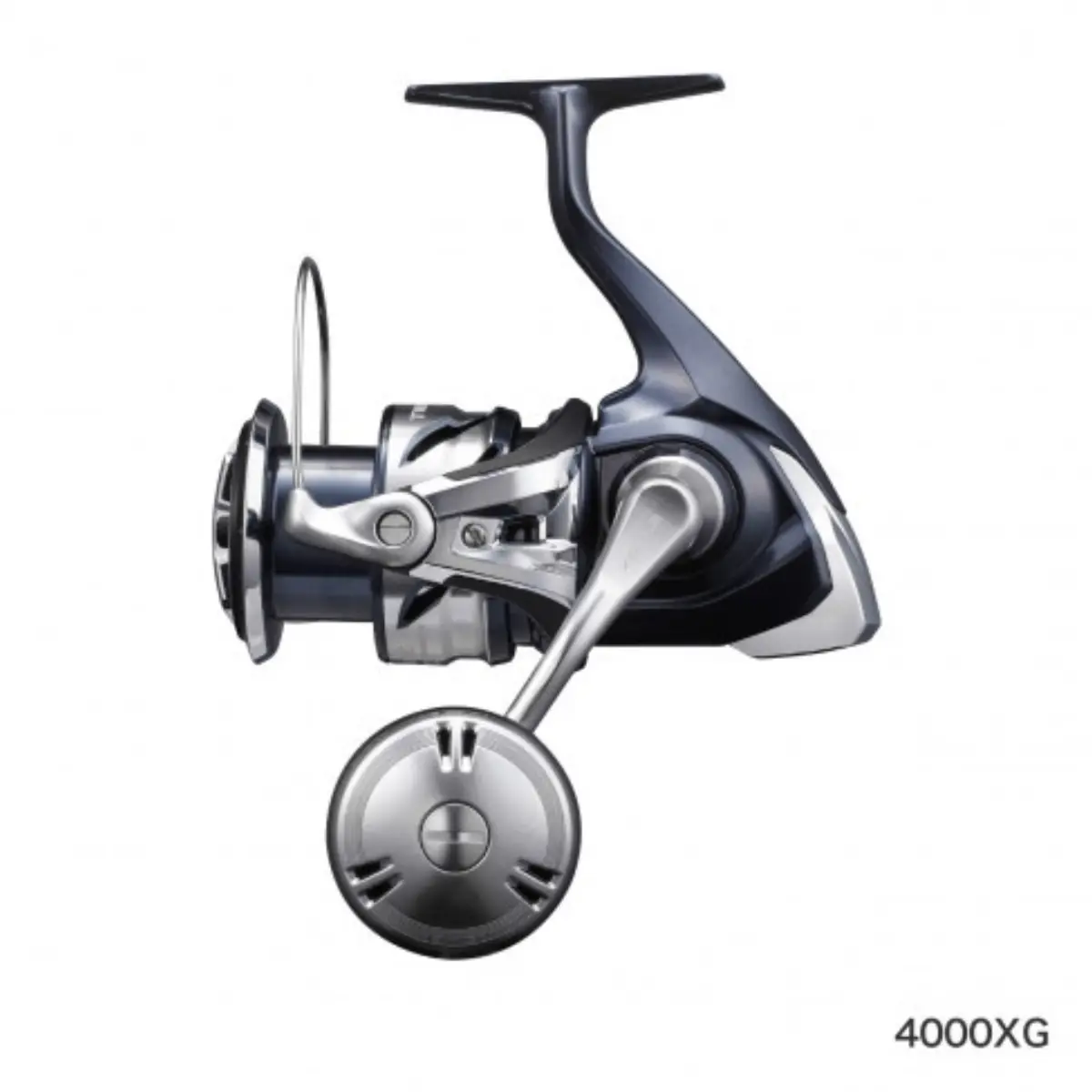

This page brings together the exploded view, the compatible parts and maintenance solutions for the SHIMANO 21 TWIN POWER SW C 4000 XG (2021).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 10424 |
R06
dès 8,79 €
|
|
| 11706 |
R14
dès 11,96 €
|
|
| 13189 |
R09
dès 12,76 €
|
|
| 13381 |
R20
dès 11,96 €
|
|
| 17751 |
R04
dès 8,79 €
|
|
| 18448 |
101BJ - Line Roller Set - Shimano
48,95 €
|
|
| 19703 |
R20
dès 11,96 €
|
|
| 20903 |
R12
dès 13,29 €
|
|
| 10424 |
R06
dès 8,79 €
|
|
| 11706 |
R14
dès 11,96 €
|
|
| 13189 |
R09
dès 12,76 €
|
|
| 13381 |
R20
dès 11,96 €
|
|
| 17751 |
R04
dès 8,79 €
|
|
| 19703 |
R20
dès 11,96 €
|
|
| 20903 |
R12
dès 13,29 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 10424 | RD10424 Ball Bearing | Ball Bearing |
R06
dès 8,79 €
|
| 11706 | RD11706 Ball Bearing | Ball Bearing |
R14
dès 11,96 €
|
| 13189 | RD13189 Ball Bearing | Ball Bearing |
R09
dès 12,76 €
|
| 13381 | RD13381 Ball Bearing | Ball Bearing |
R20
dès 11,96 €
|
| 17751 | RD17751 Ball Bearing | Ball Bearing |
R04
dès 8,79 €
|
| 18448 | RD18448 Line Roller | Line Roller |
101BJ - Line Roller Set - Shimano
48,95 €
|
| 19703 | RD19703 Ball Bearing | Ball Bearing |
R20
dès 11,96 €
|
| 20903 | RD20903 Ball Bearing | Ball Bearing |
R12
dès 13,29 €
|
| 0647 | 10QG5 Screw | Screw | — |
| 2110 | 103E9 Screw | Screw | — |
| 3342 | 103C0 Dial Case Screw | Dial Case Screw | — |
| 3538 | 103NX Spool Support | Spool Support | — |
| 3561 | 10MT4 Screw | Screw | — |
| 6008 | 10PN2 Screw | Screw | — |
| 8013 | 10K40 Screw | Screw | — |
| 8074 | 107F2 Bearing Water Proof | Bearing Water Proof | — |
| 8759 | 106UX Click Pin | Click Pin | — |
| 9833 | 107V2 Ratchet Spring | Ratchet Spring | — |
| 9903 | 108WA O Ring | O Ring | — |
| 9909 | 10BCP Washer | Washer | — |
| 9912 | 10GEW Bearing Retainer | Bearing Retainer |
10GEW - Bearing Retainer - Shimano
1,99 €
|
| 9931 | 10CGZ Click Spring | Click Spring | — |
| 9968 | 108W9 Screw | Screw | — |
| 10031 | 103NC Screw | Screw | — |
| 10335 | 10MPD Screw | Screw | — |
| 10424 | 105BN Ball Bearing | Ball Bearing |
R06
dès 8,79 €
|
| 11646 | 107PS Drag Click Ratchet | Drag Click Ratchet | — |
| 11663 | 104FW Friction Ring | Friction Ring | — |
| 11706 | 10KX1 Ball Bearing | Ball Bearing |
R14
dès 11,96 €
|
| 13189 | 104PT Ball Bearing | Ball Bearing |
R09
dès 12,76 €
|
| 13309 | 106E8 Worm Bushing Front | Worm Bushing Front | — |
| 13317 | 10LAB O Ring | O Ring | — |
| 13328 | 10M6H Screw | Screw | — |
| 13381 | 104JT Ball Bearing | Ball Bearing |
R20
dès 11,96 €
|
| 14259 | 10G6C Washer | Washer | — |
| 14300 | 10LTS Bearing Bushing | Bearing Bushing | — |
| 14780 | 10A6F Screw | Screw | — |
| 15488 | 10BBQ Key Washer | Key Washer | — |
| 15489 | 10BQE Drag Click Spring | Drag Click Spring | — |
| 15717 | 10BGE Washer | Washer | — |
| 15718 | 1055G Screw | Screw | — |
| 15729 | 10HAF Oscillating Pawl Cover | Oscillating Pawl Cover | — |
| 15991 | 1076P Rotor Nut Lock Plate | Rotor Nut Lock Plate | — |
| 16002 | 109UU Line Band SS (Accessory) | Line Band SS (Accessory) | — |
| 16380 | 10QBV Washer | Washer | — |
| 16426 | 103LB Screw | Screw | — |
| 16480 | 10JAB O Ring | O Ring | — |
| 16618 | 106VM Oscillating Pawl | Oscillating Pawl | — |
| 16740 | 10345 Drag Washer | Drag Washer |
Carbontex for Shimano Spinning S#1
13,99 €
|
| 16742 | 10C1A Drag Washer | Drag Washer |
Carbontex for Shimano Spinning S#28
12,99 €
|
| 16954 | 10909 O Ring | O Ring | — |
| 16974 | 10LAD O Ring | O Ring | — |
| 16996 | 10TNF O Ring | O Ring | — |
| 17023 | 10PS0 Screw | Screw | — |
| 17027 | 103LY Screw | Screw | — |
| 17028 | 10MHC Roller Clutch Cover | Roller Clutch Cover | — |
| 17030 | 10J2G Washer | Washer | — |
| 17031 | 10667 Clutch Inner | Clutch Inner | — |
| 17032 | 10QPK Roller Clutch Assembly | Roller Clutch Assembly | — |
| 17033 | 108WZ O Ring | O Ring | — |
| 17046 | 106M5 Worm Bushing Rear | Worm Bushing Rear | — |
| 17051 | 10PSC Screw | Screw | — |
| 17467 | 10R2P Bail Spring | Bail Spring | — |
| 17468 | 10R2E Bail Spring Seat | Bail Spring Seat | — |
| 17750 | 10TQH Bearing Housing | Bearing Housing | — |
| 17751 | 10EX8 Ball Bearing | Ball Bearing |
R04
dès 8,79 €
|
| 17752 | 10GHN Washer | Washer | — |
| 18160 | 1020L Bearing Spacer | Bearing Spacer | — |
| 18448 | 101BJ Line Roller | Line Roller |
101BJ - Line Roller Set - Shimano
48,95 €
|
| 18711 | 10TJX Drag Click | Drag Click | — |
| 18724 | 101D9 Spring Guide A Support | Spring Guide A Support | — |
| 18726 | 10DKC Bail Spring Guide A Bush | Bail Spring Guide A Bush | — |
| 18728 | 101D0 Bail Trip Cam Bushing | Bail Trip Cam Bushing | — |
| 18758 | 10TK0 Washer | Washer | — |
| 19090 | 100YN Screw | Screw | — |
| 19224 | 1002S Washer | Washer | — |
| 19638 | 1015S O Ring | O Ring | — |
| 19703 | 104JQ Ball Bearing | Ball Bearing |
R20
dès 11,96 €
|
| 19744 | 100XZ Washer | Washer | — |
| 19745 | 104FH Washer | Washer | — |
| 19747 | 101AV Washer | Washer | — |
| 19754 | 10DKJ Washer | Washer | — |
| 19857 | 10SAN Bail Spring Guide A | Bail Spring Guide A | — |
| 20436 | 100CW Washer | Washer | — |
| 20497 | 101NN Oscillating Pawl Cover | Oscillating Pawl Cover | — |
| 20503 | 101NL Bail Trip Strike | Bail Trip Strike | — |
| 20511 | 101NM Bearing Water Proof | Bearing Water Proof | — |
| 20528 | 1028S Washer | Washer | — |
| 20531 | 101NH Drive Gear | Drive Gear | — |
| 20561 | 10RR7 Roller Clutch Assembly | Roller Clutch Assembly | — |
| 20751 | 100NS Main Shaft | Main Shaft | — |
| 20763 | 10RKV Line Roller Support | Line Roller Support | — |
| 20768 | 10E2E Bail Trip Lever | Bail Trip Lever | — |
| 20775 | 10RMA Screw | Screw | — |
| 20776 | 10RGB Screw | Screw | — |
| 20779 | 10RF0 Rotor Guard A | Rotor Guard A | — |
| 20780 | 10EA5 Rotor Guard B | Rotor Guard B | — |
| 20785 | 1055D Screw | Screw | — |
| 20903 | 101WE Ball Bearing | Ball Bearing |
R12
dès 13,29 €
|
| 21490 | 10MLD Screw | Screw | — |
| 21497 | 10172 Screw | Screw | — |
| 21509 | 10TET Handle Knob Assembly | Handle Knob Assembly | — |
| 21510 | 10B2C Handle Knob Seal | Handle Knob Seal | — |
| 21588 | 10EDH Drag Knob | Drag Knob | — |
| 21590 | 10ED9 Spool Twin Power SW 4000 XG C | Spool Twin Power SW 4000 XG C | — |
| 21597 | 10R6U Rotor Assembly | Rotor Assembly | — |
| 21598 | 10R7J Bail Assembly | Bail Assembly | — |
| 21602 | 10R7K Side Cover Assembly | Side Cover Assembly | — |
| 21608 | 10R7L Handle Shank Assembly | Handle Shank Assembly | — |
| 21612 | 10ED3 Handle Assembly | Handle Assembly | — |
| 21617 | 10R7N Handle Shaft Cover | Handle Shaft Cover | — |
| 21622 | 10RYW Bail Arm | Bail Arm | — |
| 21624 | 10T0X Bail Spring Cover | Bail Spring Cover | — |
| 21626 | 10EDB Bail Hold Support Guard | Bail Hold Support Guard | — |
| 21628 | 10290 Rotor Nut | Rotor Nut | — |
| 21630 | 10ED7 Spacer | Spacer | — |
| 21631 | 10EDA Rotor Brim | Rotor Brim | — |
| 21633 | 10288 Body | Body | — |
| 21635 | 10EDE Pinion Gear | Pinion Gear | — |
| 21637 | 101MC Screw | Screw | — |
| 21638 | 10ECZ Oscillating Guide | Oscillating Guide | — |
| 21639 | 10R8T Collar | Collar | — |
| 21641 | 10ECX Idle Gear | Idle Gear | — |
| 21643 | 10T0S Worm Shaft | Worm Shaft | — |
| 21644 | 10ED1 Body Seal | Body Seal | — |
| 21645 | 101MM Worm Shaft Retainer | Worm Shaft Retainer | — |
| 21646 | 101WD Rear Protector | Rear Protector | — |
| 21647 | 10RYV Bushing | Bushing | — |
| 21648 | 101ML Washer | Washer | — |
| 21650 | 10T0U Screw | Screw | — |
| 22803 | 145QR Drag Washer Retainer | Drag Washer Retainer | — |
Leave your reel in the hands of our technicians for a full service: cleaning, lubrication, replacement of worn parts and a general check-up.
Discover our maintenance packages
