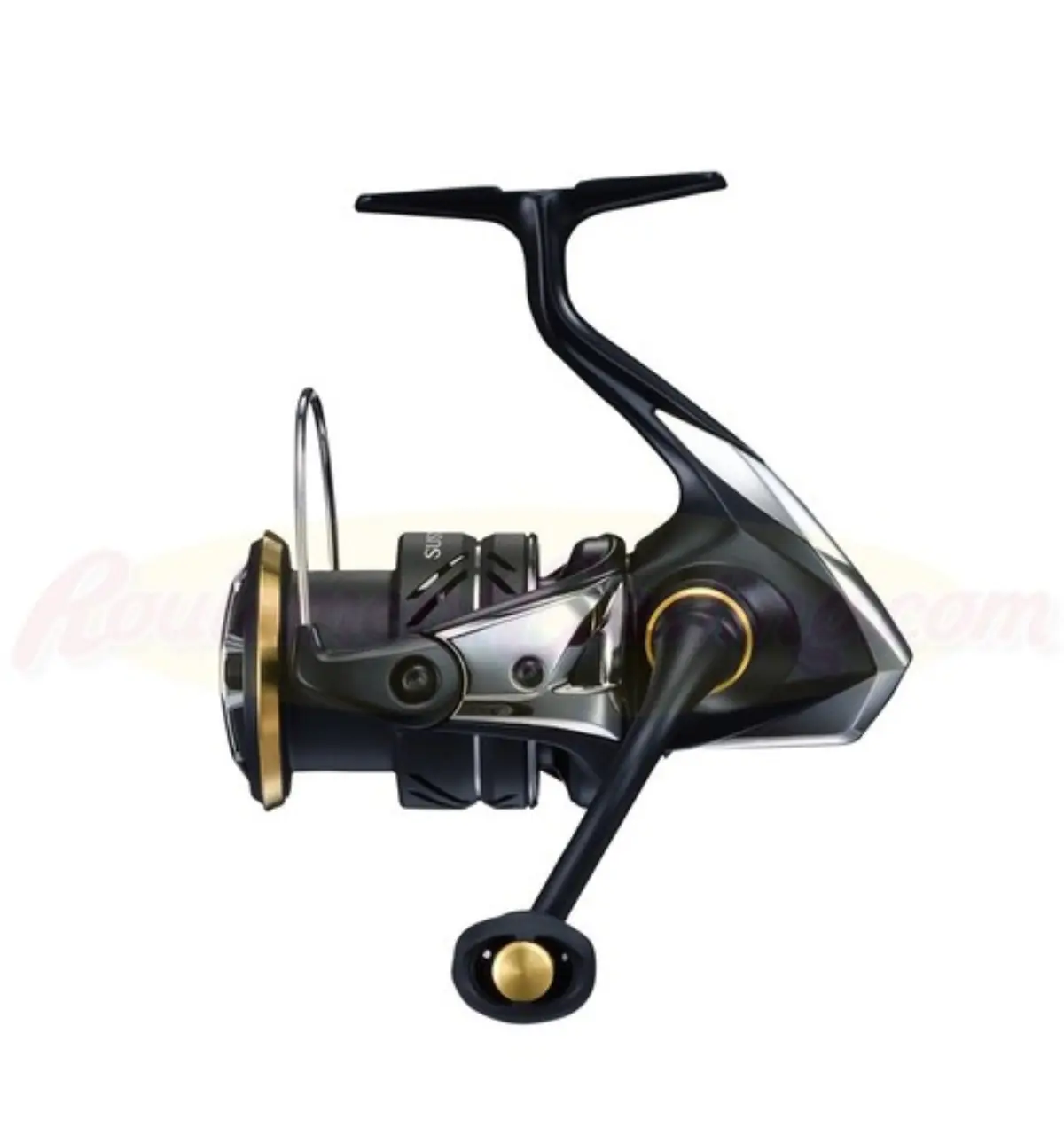

This page brings together the exploded view, the compatible parts and maintenance solutions for the SHIMANO 21 SUSTAIN FJ 2500 HG (2021).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 13241 |
R18
dès 10,99 €
|
|
| 13269 |
R05
dès 10,39 €
|
|
| 13274 |
R19
dès 10,99 €
|
|
| 13381 |
R20
dès 11,96 €
|
|
| 13829 |
R07
dès 10,39 €
|
|
| 19998 |
R18
dès 10,99 €
|
|
| 13241 |
R18
dès 10,99 €
|
|
| 13269 |
R05
dès 10,39 €
|
|
| 13274 |
R19
dès 10,99 €
|
|
| 13381 |
R20
dès 11,96 €
|
|
| 13829 |
R07
dès 10,39 €
|
|
| 17698 |
R05
dès 10,39 €
|
|
| 19976 |
R21
dès 13,29 €
|
|
| 19998 |
R18
dès 10,99 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 13241 | RD13241 Ball Bearing | Ball Bearing |
R18
dès 10,99 €
|
| 13269 | RD13269 Ball Bearing | Ball Bearing | — |
| 13274 | RD13274 Ball Bearing | Ball Bearing |
R19
dès 10,99 €
|
| 13381 | RD13381 Ball Bearing | Ball Bearing |
R20
dès 11,96 €
|
| 13829 | RD13829 Ball Bearing | Ball Bearing | — |
| 19998 | RD19998 Ball Bearing | Ball Bearing |
R18
dès 10,99 €
|
| 0582 | 108WH O Ring | O Ring | — |
| 0647 | 10QG5 Screw | Screw | — |
| 5820 | 105AA Spacer | Spacer | — |
| 9833 | 107V2 Ratchet Spring | Ratchet Spring | — |
| 9912 | 10GEW Bearing Retainer | Bearing Retainer |
10GEW - Bearing Retainer - Shimano
1,99 €
|
| 13241 | 104JD Ball Bearing | Ball Bearing |
R18
dès 10,99 €
|
| 13269 | 104VX Ball Bearing | Ball Bearing |
R05
dès 10,39 €
|
| 13274 | 104PP Ball Bearing | Ball Bearing |
R19
dès 10,99 €
|
| 13381 | 104JT Ball Bearing | Ball Bearing |
R20
dès 11,96 €
|
| 13620 | 10L6D Screw | Screw | — |
| 13829 | 104JZ Ball Bearing | Ball Bearing |
R07
dès 10,39 €
|
| 14860 | 10BBP Key Washer | Key Washer | — |
| 14867 | 103PE Spool Support | Spool Support | — |
| 15231 | 10QBU Washer | Washer | — |
| 15862 | 102XW Washer | Washer | — |
| 16796 | 1070D Spacer | Spacer | — |
| 16801 | 10K9C Washer | Washer | — |
| 16931 | 10B8N Drag Washers Retainer | Drag Washers Retainer | — |
| 17415 | 106ZC Click Pin | Click Pin | — |
| 17662 | 10TNX Drag Click Spring | Drag Click Spring | — |
| 17663 | 10TNV Drag Click | Drag Click | — |
| 17664 | 10TRB Screw | Screw | — |
| 17667 | 10PN3 Screw | Screw | — |
| 17680 | 1018Z Washer | Washer | — |
| 17683 | 105R6 Bail Spring | Bail Spring | — |
| 17684 | 107AB Bail Spring Seat | Bail Spring Seat | — |
| 17695 | 10PXV Handle Shaft Seal | Handle Shaft Seal | — |
| 17698 | 10PXZ Handle Knob Bushing | Handle Knob Bushing |
R05
dès 10,39 €
|
| 17700 | 10LFA Screw | Screw | — |
| 17719 | 10M2G Screw | Screw | — |
| 18054 | 10G4L Anti Line Slip Sticker | Anti Line Slip Sticker | — |
| 18199 | 10ECK Washer | Washer | — |
| 18206 | 10THY Spool Bushing | Spool Bushing | — |
| 18207 | 10SYS Drag Click Ratchet | Drag Click Ratchet | — |
| 18208 | 10TJM Spacer | Spacer | — |
| 18210 | 10TLJ Screw | Screw | — |
| 18211 | 10TLM Screw | Screw | — |
| 18215 | 10TLK Line Roller Support | Line Roller Support | — |
| 18724 | 101D9 Spring Guide A Support | Spring Guide A Support | — |
| 18732 | 101D5 Rotor Ring | Rotor Ring | — |
| 18735 | 10S2L Roller Clutch Assembly | Roller Clutch Assembly | — |
| 18741 | 10SYU Washer | Washer | — |
| 18744 | 10DK0 Idle Gear | Idle Gear | — |
| 18761 | 10DK2 Idle Gear Small | Idle Gear Small | — |
| 18771 | 10S9M Idle Gear Large | Idle Gear Large | — |
| 19745 | 104FH Washer | Washer | — |
| 19746 | 101AY Washer | Washer | — |
| 19748 | 10DHG Washer | Washer | — |
| 19767 | 10180 Drag Knob | Drag Knob | — |
| 19771 | 10DYR Main Shaft | Main Shaft | — |
| 19775 | 100WY Screw | Screw | — |
| 19777 | 100WT Screw | Screw | — |
| 19780 | 100WX O Ring | O Ring | — |
| 19781 | 10DXE O Ring | O Ring | — |
| 19793 | 1017W Bearing Water Proof | Bearing Water Proof | — |
| 19802 | 1017Y Bail Trip Strike | Bail Trip Strike | — |
| 19803 | 10RSK Screw | Screw | — |
| 19804 | 10DVX Oscillating Guide A | Oscillating Guide A | — |
| 19805 | 10RDL Main Shaft Collar | Main Shaft Collar | — |
| 19807 | 1018D Oscillating Pawl | Oscillating Pawl | — |
| 19808 | 10DVY Worm Shaft | Worm Shaft | — |
| 19815 | 10DVW Idle Gear B Shaft | Idle Gear B Shaft | — |
| 19816 | 10RS0 Rear Protector | Rear Protector | — |
| 19818 | 10182 Oscillating Pawl Cover | Oscillating Pawl Cover | — |
| 19822 | 10DWD Bearing Retainer | Bearing Retainer | — |
| 19831 | 1009E O Ring | O Ring | — |
| 19837 | 1009K Line Roller Bushing | Line Roller Bushing | — |
| 19839 | 10RFZ Line Roller Spacer | Line Roller Spacer | — |
| 19857 | 10SAN Bail Spring Guide A | Bail Spring Guide A | — |
| 19866 | 1009Z O Ring | O Ring | — |
| 19876 | 1009B Bail Spring Guide A Bush | Bail Spring Guide A Bush | — |
| 19883 | 10QXQ Friction Ring | Friction Ring | — |
| 19884 | 1009L Oscillating Slider Bushing | Oscillating Slider Bushing | — |
| 19886 | 1009W Flange Water Proof | Flange Water Proof | — |
| 19895 | 100A0 Handle Shaft Cover B | Handle Shaft Cover B | — |
| 19899 | 1009Y Roller Clutch Inner | Roller Clutch Inner | — |
| 19926 | 1076N Rotor Nut Lock Plate | Rotor Nut Lock Plate | — |
| 19959 | 1009A Line Roller | Line Roller | — |
| 19976 | 1009C Worm Bushing Rear | Worm Bushing Rear |
R21
dès 13,29 €
|
| 19989 | 103GW Screw | Screw | — |
| 19990 | 1055H Screw | Screw | — |
| 19992 | 1009G Worm Bushing Front | Worm Bushing Front |
R33
dès 11,96 €
|
| 19993 | 10S7C Worm Shaft Retainer | Worm Shaft Retainer | — |
| 19994 | 10TBA Washer | Washer | — |
| 19995 | 10L6N Screw | Screw | — |
| 19996 | 10H9N Washer | Washer | — |
| 19997 | 10HE5 Washer | Washer | — |
| 19998 | 10DZB Ball Bearing | Ball Bearing |
R18
dès 10,99 €
|
| 20012 | 10DWZ Pinion Gear | Pinion Gear | — |
| 20013 | 10R8X Drive Gear | Drive Gear | — |
| 20069 | 10HE7 Click Spring | Click Spring | — |
| 20150 | 10E44 Line Roller Collar | Line Roller Collar | — |
| 20735 | 10E66 Drag Washer | Drag Washer | — |
| 20737 | 10E6E Drag Washer | Drag Washer | — |
| 20987 | 10RX2 Screw | Screw | — |
| 20988 | 101CC Screw | Screw | — |
| 20990 | 10RNG Screw | Screw | — |
| 20998 | 10095 Bail Hold Support Guard | Bail Hold Support Guard | — |
| 20999 | 100RN Rotor Nut | Rotor Nut | — |
| 21002 | 10099 Bail Trip Lever | Bail Trip Lever | — |
| 21003 | 1009M Rotor Brim | Rotor Brim | — |
| 21006 | 100RU Washer | Washer | — |
| 21012 | 10S7B Counter Weight Cover | Counter Weight Cover | — |
| 21784 | 1012C Rotor Assembly | Rotor Assembly | — |
| 21785 | 100K6 Bail Arm | Bail Arm | — |
| 21786 | 1011X Bail Assembly | Bail Assembly | — |
| 21787 | 10DVM Screw | Screw | — |
| 21788 | 100Q0 Body | Body | — |
| 21792 | 10325 Handle Knob | Handle Knob | — |
| 21793 | 10TAL Handle Knob Seal | Handle Knob Seal | — |
| 21794 | 100K5 Spool Sustain 2500 HG FJ | Spool Sustain 2500 HG FJ | — |
| 21795 | 1012M Side Cover Assembly | Side Cover Assembly | — |
| 21796 | 10TAM Handle Assembly | Handle Assembly | — |
| 21797 | 1011K Handle Shank Assembly | Handle Shank Assembly | — |
