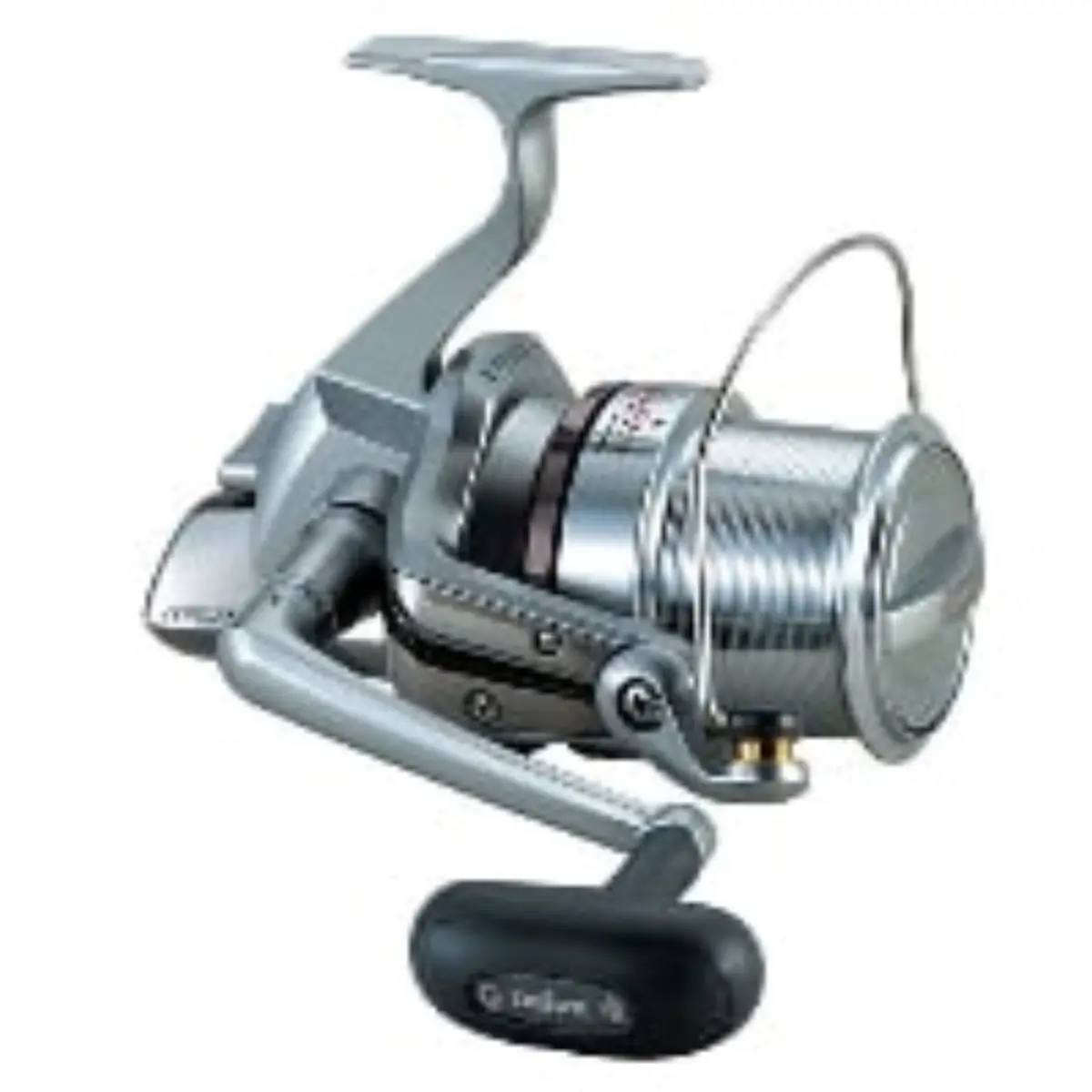

This page brings together the exploded view, the compatible parts and maintenance solutions for the DAIWA POWERSURF 4000QD (2003).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 25 |
R07
dès 10,39 €
|
|
| 42 | — | — |
| 47 |
R31
dès 13,56 €
|
|
| 74 |
R17
dès 13,59 €
|
|
| 78 |
R23
dès 15,16 €
|
|
| 25 |
R07
dès 10,39 €
|
|
| 42 |
R13
dès 12,76 €
|
|
| 47 |
R31
dès 13,56 €
|
|
| 74 |
R17
dès 13,59 €
|
|
| 78 |
R23
dès 15,16 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 25 | E256 |
R07
dès 10,39 €
|
|
| 42 | E063 | — | |
| 47 | E028 |
R31
dès 13,56 €
|
|
| 74 | E122 |
R17
dès 13,59 €
|
|
| 78 | E027 |
R23
dès 15,16 €
|
|
| 1 | 6G421501 Drag Knob | Drag Knob | — |
| 2 | 6F884001 Drag Washer Ret | Drag Washer Ret | — |
| 3 | 6G421401 Drag Ratchet | Drag Ratchet | — |
| 4 aussi n° 93 | 6F755503 Drag W | Drag W |
Carbontex for Daiwa Spinning S#09
19,95 €
|
| 5 | 6F881701 Drag Desk W | Drag Desk W | — |
| 6 | 6F755701 Eared Washer | Eared Washer | — |
| 7 | 6G692801 Spool / Nylon 5-200 | Spool / Nylon 5-200 | — |
| 8 | 6E399201 Spool W (A) | Spool W (A) | — |
| 9 | 6E399203 Spool W (B) | Spool W (B) | — |
| 10 | 6F204001 Click Holder | Click Holder | — |
| 11 | 6B747701 Clickleaf SP | Clickleaf SP | — |
| 12 | 6E267501 Main shaft W | Main shaft W | — |
| 13 | 6G420801 Main shaft | Main shaft | — |
| 14 | 6G541601 Line Guard | Line Guard | — |
| 15 | 6G408301 Line Guard W | Line Guard W | — |
| 16 | 63201611 Line Guard Triner | Line Guard Triner | — |
| 17 | 6B437610 Rotor Nut | Rotor Nut | — |
| 18 | 6G392201 Rotor Nut Holding Plt | Rotor Nut Holding Plt | — |
| 19 | 6G171402 Rotor Nut Lock Screw | Rotor Nut Lock Screw | — |
| 20 | 6G390907 Rotor | Rotor | — |
| 21 | 6G391403 Arm Lever | Arm Lever | — |
| 22 | 6G455601 Bail Arm Screw | Bail Arm Screw | — |
| 23 | 6G391702 Veil | Veil | — |
| 24 | 6G421001 Line Roller | Line Roller | — |
| 25 | 6G370905 Roller ball bearings | Roller ball bearings |
R07
dès 10,39 €
|
| 26 | 6F446202 Roller W | Roller W | — |
| 27 | 6G473101 Roller Collar | Roller Collar | — |
| 28 | 6F608901 Line Roller Screw | Line Roller Screw | — |
| 29 | 6G091903 Arm lever shaft | Arm lever shaft | — |
| 30 | 6G092101 Arm lever SP | Arm lever SP | — |
| 31 | 6G091801 Kick Guide | Kick Guide | — |
| 32 | 6G194101 Kick lever SP | Kick lever SP | — |
| 33 | 6G391001 Kick Lever | Kick Lever | — |
| 34 | 6G194301 Kick lever O-ring | Kick lever O-ring | — |
| 35 | 6G193701 Kick lever SC | Kick lever SC | — |
| 36 | 6G392108 Bale Holder Covers | Bale Holder Covers | — |
| 37 | 6G205101 Arm Lever Cover SC | Arm Lever Cover SC | — |
| 38 | 6G391508 Arm Lever SP Cover | Arm Lever SP Cover | — |
| 39 | 6G455701 Cover SC (B) | Cover SC (B) | — |
| 40 | 6G473201 Pinion bearing (A) holder | Pinion bearing (A) holder | — |
| 41 | 6E454002 Pinion bearing (A) holder SC | Pinion bearing (A) holder SC | — |
| 42 | 6F240001 Ball Bearing BRIM(flanged) | Ball Bearing BRIM(flanged) |
R13
dès 12,76 €
|
| 43 | 6G554301 Bearing Plates | Bearing Plates | — |
| 44 | 6F641401 One-way clutch plate | One-way clutch plate | — |
| 45 | 6G088201 Clutch Ring | Clutch Ring | — |
| 46 | 6G314501 One-Way Clutch | One-Way Clutch | — |
| 47 | 6B546001 Ball bearing pinion | Ball bearing pinion |
R31
dès 13,56 €
|
| 48 | 6G176801 Pinion ball bearing (B) collar | Pinion ball bearing (B) collar | — |
| 49 | 6G176702 Ratchet | Ratchet | — |
| 50 | 6E339701 Ratchet W | Ratchet W | — |
| 51 | 6G420701 Pinion | Pinion | — |
| 52 | 6G400401 Pinion Collar | Pinion Collar | — |
| 53 | 6G578001 Body | Body | — |
| 54 | 6E327801 Stopper cam lift SP | Stopper cam lift SP | — |
| 55 | 6G450803 Stopper lever | Stopper lever | — |
| 56 | 6G400301 Worm shaft collar (A) | Worm shaft collar (A) | — |
| 57 | 63205901 Worm Shaft Retainer | Worm Shaft Retainer |
2.5 mm E-ring
1,60 €
|
| 58 | 6G420601 Worm shaft gear | Worm shaft gear | — |
| 59 | 6G389701 Worm Shaft | Worm Shaft | — |
| 60 | 6B411703 Washer (0.1Mm) | Washer (0.1Mm) | — |
| 61 | 6G389901 Worm shaft collar | Worm shaft collar | — |
| 62 | 6G390101 Worm Shaft Ritiner | Worm Shaft Ritiner | — |
| 63 | 6G390001 Oscillating Post | Oscillating Post | — |
| 64 | 6G390301 Oscillating Slider | Oscillating Slider | — |
| 65 | 6G390401 Pole | Pole | — |
| 66 | 6G390501 Pole Holder Color | Pole Holder Color | — |
| 67 | 63750801 Washer - (0.1) | Washer - (0.1) | — |
| 68 | 6E264301 Pole Holder Plate | Pole Holder Plate | — |
| 69 | 63521505 Pole Holder Plate SC | Pole Holder Plate SC | — |
| 70 | 6G450501 Stopper | Stopper | — |
| 71 | 6E262102 Stopper Collar | Stopper Collar | — |
| 72 | 6E262201 Stopper SP | Stopper SP | — |
| 73 | 63515901 Stopper SC | Stopper SC | — |
| 74 | 6G156801 Drive ball bearing (A) | Drive ball bearing (A) |
R17
dès 13,59 €
|
| 75 | 6E264502 Stopper Leaf SP | Stopper Leaf SP | — |
| 76 | 6G420901 Drive Gear | Drive Gear | — |
| 77 | 6B270703 Drag Screw Washer | Drag Screw Washer | — |
| 78 | 66376101 Ball bearing pinion | Ball bearing pinion |
R23
dès 15,16 €
|
| 79 | 6G390703 Body Cover | Body Cover | — |
| 80 | 63516413 Body Cover SC (A) | Body Cover SC (A) | — |
| 81 | 63511106 Side Cover Screw | Side Cover Screw | — |
| 82 | 6F409001 Handle Collar | Handle Collar | — |
| 83 | 6L009104 Handle SC | Handle SC | — |
| 84 | 6H590101 Handle | Handle | — |
| 85 | 6G390817 Body Cap | Body Cap | — |
| 86 | 63516101 Bale Holder SC | Bale Holder SC | — |
| 88 | 6G473001 Roller Ball Bearing Packings | Roller Ball Bearing Packings | — |
| 89 | 6G253301 Rear Cover Screw Washer | Rear Cover Screw Washer | — |
| 90 | 6G315301 Rear Cap SC・W | Rear Cap SC・W | — |
| 91 | 6G256401 Arm Lever Cover SC/W | Arm Lever Cover SC/W | — |
| 92 | 6G512601 Drag Ratchet Ring | Drag Ratchet Ring | — |
| 93 aussi n° 4 | 6F755503 Drag W | Drag W |
Carbontex for Daiwa Spinning S#09
19,95 €
|
| 94 | 6G506101 Roller W (B) | Roller W (B) | — |
| 100 | 6G453001 Spool / Nylon 3-200 | Spool / Nylon 3-200 | — |
| 102 | 6G238201 Fitting Putt | Fitting Putt | — |
| 103 | 63758503 Line Guard Bearing W | Line Guard Bearing W | — |
| 104 | 63754102 Spool Gear (B)Washer | Spool Gear (B)Washer | — |
| 200 | 6G482401 Ball Bearing BRIM(flanged) | Ball Bearing BRIM(flanged) |
R13
dès 12,76 €
|
| 201 | 6G482201 Pinion ball bearing (B)/ | Pinion ball bearing (B)/ |
R31
dès 13,56 €
|
| 202 | 6G476201 Handle Knob Cap SC | Handle Knob Cap SC | — |
Leave your reel in the hands of our technicians for a full service: cleaning, lubrication, replacement of worn parts and a general check-up.
