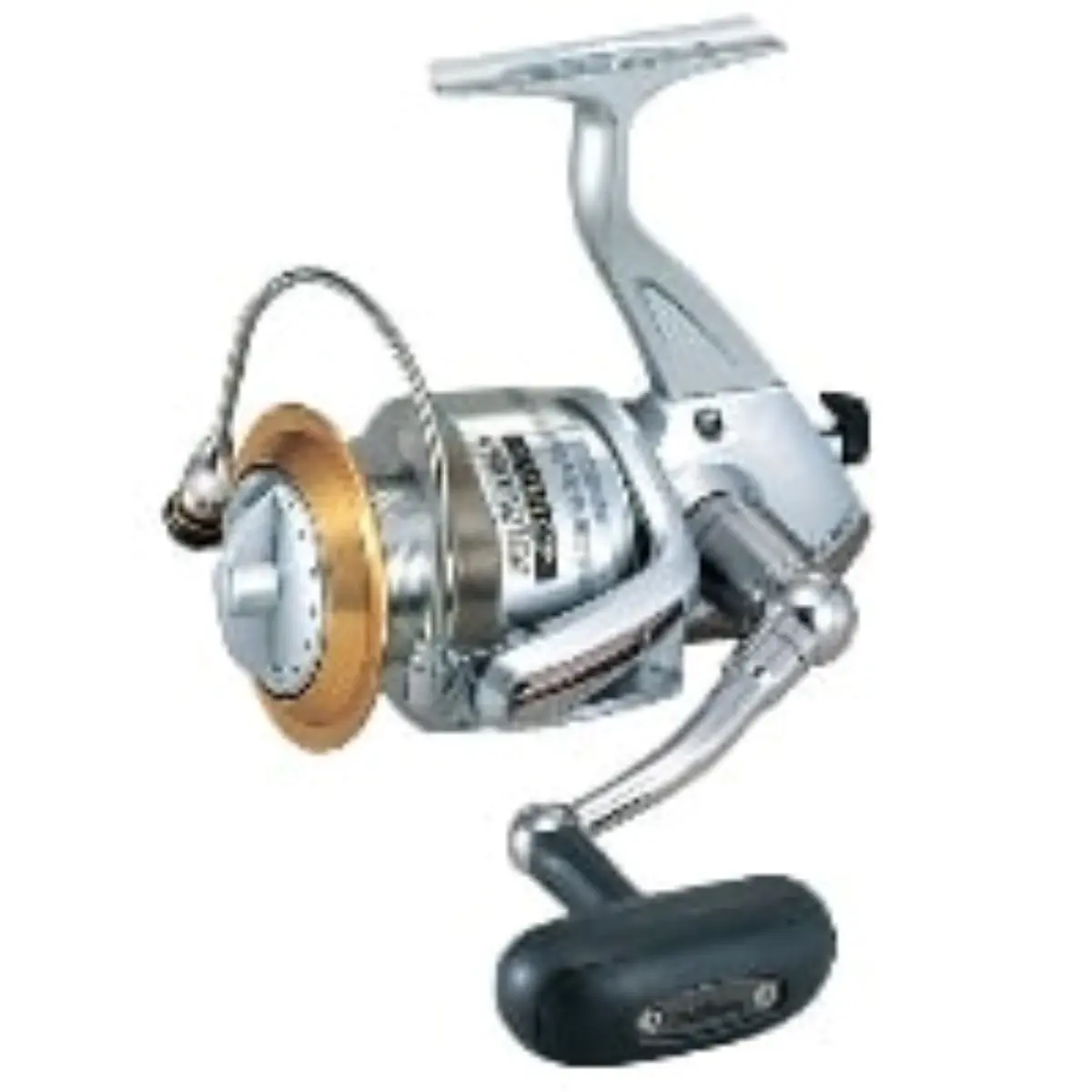

This page brings together the exploded view, the compatible parts and maintenance solutions for the DAIWA FREAMS 4500J (2003).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 23 |
R21
dès 13,29 €
|
|
| 43 |
R35
dès 11,96 €
|
|
| 50 |
R55
dès 13,56 €
|
|
| 64 | — | — |
| 23 |
R21
dès 13,29 €
|
|
| 50 |
R55
dès 13,56 €
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 23 | E138 |
R21
dès 13,29 €
|
|
| 43 | E065 |
R35
dès 11,96 €
|
|
| 50 | E080 |
R55
dès 13,56 €
|
|
| 64 | E015 | — | |
| 1 | 6G464501 Drag Knob | Drag Knob | — |
| 2 | 6E134508 Motor Holder SC | Motor Holder SC | — |
| 3 | 6G464401 Draggling | Draggling | — |
| 4 | 6G464301 Drag Packing | Drag Packing | — |
| 5 | 6F094901 Drag Disk W | Drag Disk W | — |
| 6 | 6G651101 Drag W | Drag W | — |
| 7 | 63733603 Dragrip W | Dragrip W | — |
| 8 | 6G464601 Spool (2-11) | Spool (2-11) | — |
| 9 | 6B075304 Clickcrow | Clickcrow | — |
| 10 | 6G366501 click SP | click SP | — |
| 11 | 63205901 Worm Shaft Retainer | Worm Shaft Retainer |
2.5 mm E-ring
1,60 €
|
| 12 | 6F094701 Spool W | Spool W | — |
| 13 | 6E462701 Click Gear | Click Gear | — |
| 14 | 6G465001 Main shaft | Main shaft | — |
| 15 | 6G025501 Oscillating Slider | Oscillating Slider | — |
| 16 | 63521505 Pole Holder Plate SC | Pole Holder Plate SC | — |
| 17 | 6G123301 Rotor Nut | Rotor Nut | — |
| 18 | 6G404504 Rotor | Rotor | — |
| 19 | 6G195601 Roller SC | Roller SC | — |
| 20 | 6G194501 Arm Lever | Arm Lever | — |
| 21 | 6G224901 Arm lever SC | Arm lever SC | — |
| 22 | 6F897101 Line Roller Washer | Line Roller Washer | — |
| 23 | 6G281601 Roller ball bearings | Roller ball bearings |
R21
dès 13,29 €
|
| 24 | 6G461301 Line Roller | Line Roller | — |
| 25 | 6G047601 Roller color (B) | Roller color (B) | — |
| 26 | 6G405101 Veil | Veil | — |
| 27 | 63516101 Bale Holder SC | Bale Holder SC | — |
| 28 | 6G017502 Arm lever shaft | Arm lever shaft | — |
| 29 | 6G148601 Arm lever SP | Arm lever SP | — |
| 30 | 6G017401 Arm Lever SP Holder | Arm Lever SP Holder | — |
| 31 | 6G405002 Arm Lever SP Cover | Arm Lever SP Cover | — |
| 32 aussi n° 60 | 6G256401 Arm Lever Cover SC/W | Arm Lever Cover SC/W | — |
| 33 | 6G205101 Arm Lever Cover SC | Arm Lever Cover SC | — |
| 34 | 6G428901 Bale Holder Nut Cover | Bale Holder Nut Cover | — |
| 35 | 6G195101 Bale Holder Nut | Bale Holder Nut | — |
| 36 | 6G404601 Kick lever SP | Kick lever SP | — |
| 37 | 6G404701 Kick Lever | Kick Lever | — |
| 38 | 6G194301 Kick lever O-ring | Kick lever O-ring | — |
| 39 | 63753005 Handle Knob W | Handle Knob W | — |
| 40 | 6G193701 Kick lever SC | Kick lever SC | — |
| 41 | 6G332702 Bearing Holder SC | Bearing Holder SC | — |
| 42 | 6G229901 Bearing holder | Bearing holder | — |
| 43 | 6F252901 Pinion ball bearing (A) | Pinion ball bearing (A) |
R35
dès 11,96 €
|
| 44 | 6F920602 Pinion bearing collar | Pinion bearing collar | — |
| 45 | 6F641501 Bearing Plates | Bearing Plates | — |
| 46 | 6F641401 One-way clutch plate | One-way clutch plate | — |
| 47 aussi n° 51 | 63737814 Clutch Ring W | Clutch Ring W | — |
| 48 | 6F732203 Clutch Ring | Clutch Ring | — |
| 49 | 6G314501 One-Way Clutch | One-Way Clutch | — |
| 50 | 6F641101 Pinion ball bearing (B) | Pinion ball bearing (B) |
R55
dès 13,56 €
|
| 51 aussi n° 47 | 63737814 Clutch Ring W | Clutch Ring W | — |
| 52 | 6G291301 Pinion | Pinion | — |
| 53 | 6G462701 Body | Body | — |
| 54 | 6G193103 Stopper lever | Stopper lever | — |
| 55 | 6G193301 Stopper Cam Leaf SP | Stopper Cam Leaf SP | — |
| 56 | 6F131601 Oscillating gear collar | Oscillating gear collar | — |
| 57 | 6G131701 Oscillating gear W | Oscillating gear W | — |
| 58 | 6F747801 Oscillating gear | Oscillating gear | — |
| 59 | 6G230106 Body Cap | Body Cap | — |
| 60 aussi n° 32 | 6G256401 Arm Lever Cover SC/W | Arm Lever Cover SC/W | — |
| 61 | 6G400101 Rear Cap SC | Rear Cap SC | — |
| 62 | 6H603801 Drive Gear | Drive Gear | — |
| 63 | 63737808 Drive Gear Washer | Drive Gear Washer | — |
| 64 | 66316901 Drive ball bearings | Drive ball bearings | — |
| 65 | 6G462901 Body Cover | Body Cover | — |
| 66 | 6G332902 Body Cover SC (A) | Body Cover SC (A) | — |
| 67 | 6G333002 Body Cover SC (B) | Body Cover SC (B) | — |
| 68 | 6H252801 Handle | Handle | — |
| 69 | 6F721201 Handle Color | Handle Color | — |
| 70 | 61608101 Handle SC・W | Handle SC・W | — |
| 71 | 6F425802 Handle SC | Handle SC | — |
| 100 | 6F094803 butterfly ray (Gymnura japonica) | butterfly ray (Gymnura japonica) | — |
| 101 | 6G476201 Handle Knob Cap SC | Handle Knob Cap SC | — |
