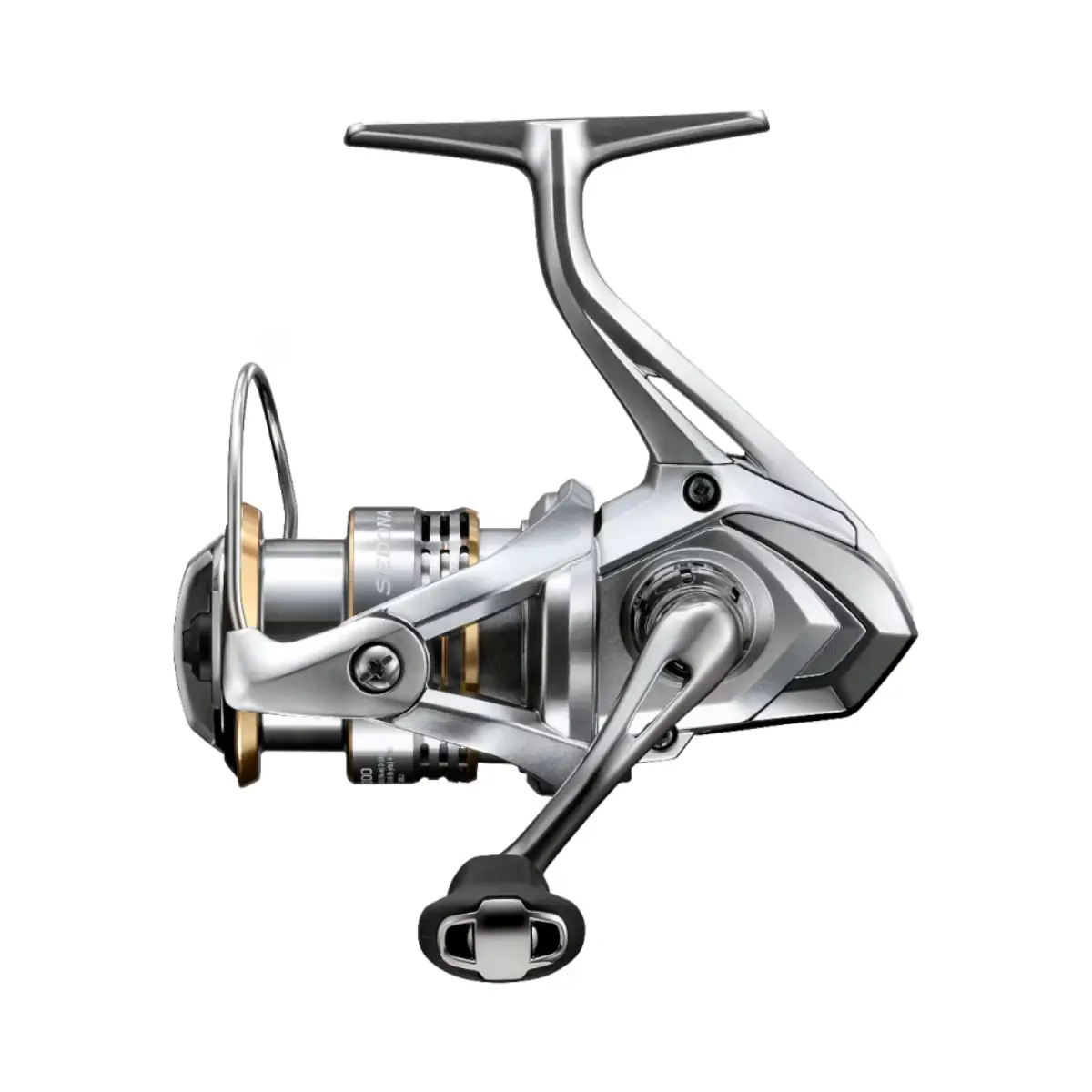

Cette page regroupe la vue éclatée, les pièces compatibles et les solutions d'entretien pour le SHIMANO 23 SEDONA FJ 1000 (2023).
Retrouvez rapidement les roulements de bobine, roulements à billes, roulement de galet, freins Carbontex, pièces détachées d'origine et accessoires associés à ce modèle.
| N° Schéma | Référence / Pièce | Action |
|---|---|---|
| 12969 |
R19
dès 10,99 €
|
|
| 17698 |
R05
dès 10,39 €
|
|
| 19998 |
R18
dès 10,99 €
|
|
| 21224 |
R12
dès 13,29 €
|
| N° Schéma | Référence constructeur | Description | Commande |
|---|---|---|---|
| 0656 | 1074R Washer | Washer | — |
| 3455 | 10BXN Spool Washer | Spool Washer | — |
| 4798 | 103C6 Screw | Screw | — |
| 6684 | 10KFD Line Roller Spacer | Line Roller Spacer | — |
| 7995 | 10B87 Drag Washers Retainer | Drag Washers Retainer | — |
| 8916 | 10CH0 Click Spring | Click Spring | — |
| 9368 | 10JLF Line Roller | Line Roller | — |
| 9369 | 10PFP Washer | Washer | — |
| 10184 | 10PFH Line Roller Bushing | Line Roller Bushing | — |
| 10345 | 10N5A Drag Washer | Drag Washer |
Carbontex pour Shimano Spinning S#1
13,99 €
|
| 10752 | 10TYE Bail Spring Guide A Support | Bail Spring Guide A Support | — |
| 11166 | 10KFA Spacer | Spacer | — |
| 11913 | 10N24 Key Washer | Key Washer | — |
| 14832 | 103MU Spool Support A | Spool Support A | — |
| 14833 | 10J04 Spool Support B | Spool Support B | — |
| 15425 | 1074K Pinion Gear Bushing | Pinion Gear Bushing | — |
| 17145 | 105B4 Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 17251 | 10QPN Roller Clutch Assembly | Roller Clutch Assembly | — |
| 17326 | 10R2N Bail Spring | Bail Spring | — |
| 17332 | 10R1P Screw | Screw | — |
| 17372 | 10LCE Screw | Screw | — |
| 17374 | 10K90 Screw | Screw | — |
| 17378 | 10L1R Screw | Screw | — |
| 17382 | 10L6J Screw | Screw | — |
| 17391 | 10LFK Screw | Screw | — |
| 17415 | 106ZC Click Pin | Click Pin | — |
| 17664 | 10TRB Screw | Screw | — |
| 17682 | 1061L Bail Spring Guide A | Bail Spring Guide A | — |
| 17684 | 107AB Bail Spring Seat | Bail Spring Seat | — |
| 17690 | 104FV Friction Ring | Friction Ring | — |
| 17700 | 10LFA Screw | Screw | — |
| 17701 | 10TNJ Handle Knob Seal | Handle Knob Seal | — |
| 17850 | 1020X Line Roller Collar | Line Roller Collar | — |
| 17853 | 10LFH Screw | Screw | — |
| 17863 | 10LCS Screw | Screw | — |
| 17960 | 101SY Main Shaft | Main Shaft | — |
| 17962 | 101T4 Bail Spring Cover | Bail Spring Cover | — |
| 17963 | 106L0 Bail Trip Lever | Bail Trip Lever | — |
| 17966 | 101SU Pinion Gear | Pinion Gear | — |
| 18066 | 10DH9 Bail Assembly | Bail Assembly | — |
| 18551 | 10K96 Washer | Washer | — |
| 19745 | 104FH Washer | Washer | — |
| 21178 | 10EEZ Washer | Washer | — |
| 21767 | 10RXE Rotor Nut | Rotor Nut | — |
| 21807 | 10DS4 Drag Click | Drag Click | — |
| 21808 | 10DS6 Drag Click Spring | Drag Click Spring | — |
| 21812 | 10TB2 Anti-Reverse Cam | Anti-Reverse Cam | — |
| 21815 | 10TBH Bushing | Bushing | — |
| 21966 | 101BN Oscillating Guide | Oscillating Guide | — |
| 21967 | 101BV Oscillating Gear | Oscillating Gear | — |
| 21968 | 101BW O Ring | O Ring | — |
| 21969 | 101BP Oscillating Slider | Oscillating Slider | — |
| 22110 | 100HA Anti-Reverse Lever | Anti-Reverse Lever | — |
| 22131 | 100FH Drag Knob | Drag Knob | — |
| 22137 | 10TAR Rear Protector | Rear Protector | — |
| 22418 | 10RPB Bushing Spring | Bushing Spring | — |
| 22748 | 13YW9 Handle Screw Cap | Handle Screw Cap | — |
| 22781 | 13ZP9 Spool Sedona 1000 FJ | Spool Sedona 1000 FJ | — |
| 22782 | 13ZPA Rotor | Rotor | — |
| 22783 | 13ZPB Bail Arm | Bail Arm | — |
| 22784 | 13ZPC Body | Body | — |
| 22785 | 13ZPD Drive Gear | Drive Gear | — |
| 22786 | 13ZPE Side Cover | Side Cover | — |
| 22787 | 13ZPF Handle Assembly | Handle Assembly | — |
Confiez votre moulinet à nos techniciens pour un entretien complet : nettoyage, graissage, remplacement des pièces d'usure et vérification générale.
Découvrir nos forfaits d'entretien
