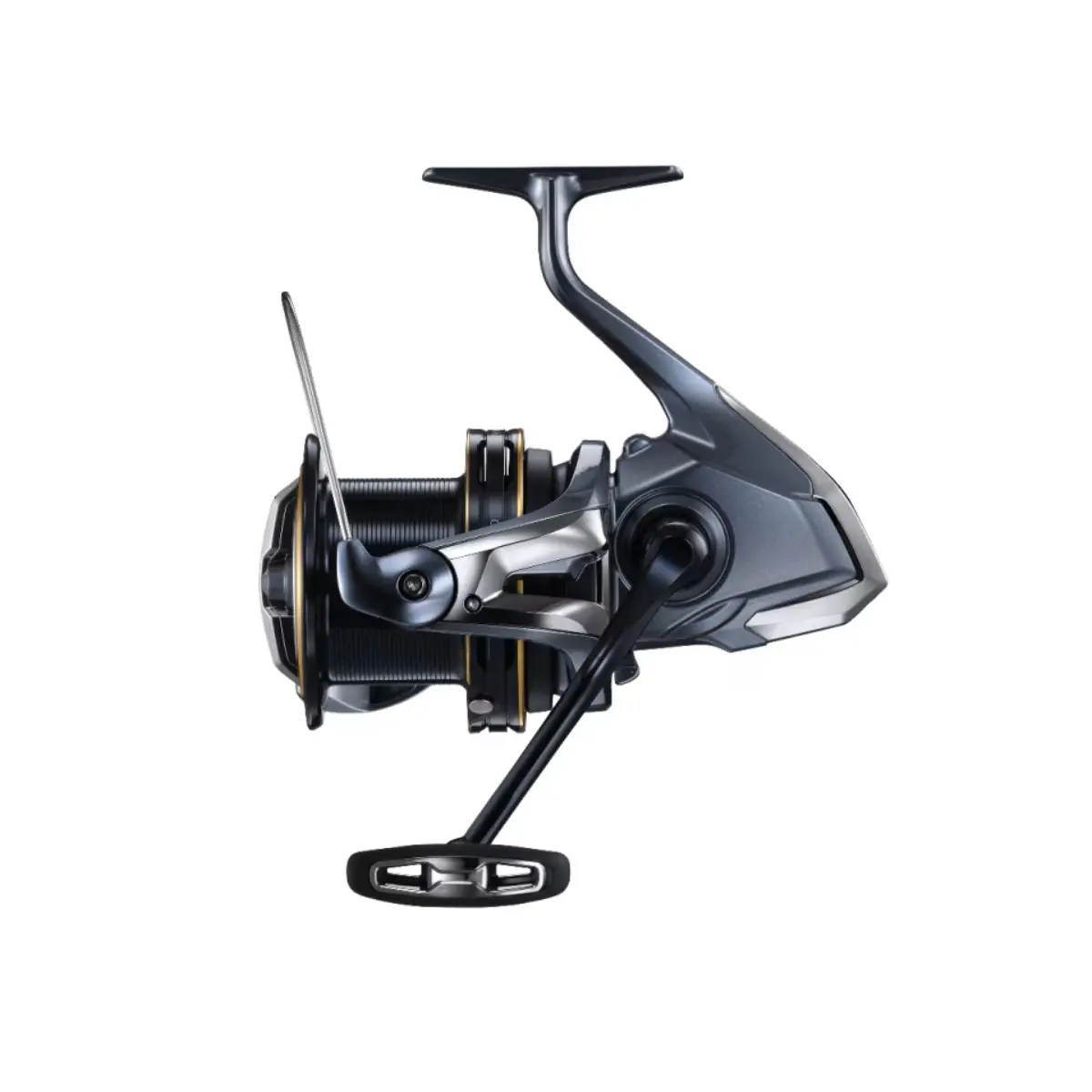

Cette page regroupe la vue éclatée, les pièces compatibles et les solutions d'entretien pour le SHIMANO 23 POWER AERO 14000 PG XSC (2023).
Retrouvez rapidement les roulements de bobine, roulements à billes, roulement de galet, freins Carbontex, pièces détachées d'origine et accessoires associés à ce modèle.
| N° Schéma | Référence / Pièce | Action |
|---|---|---|
| 11018 aussi n° 11111 |
R15
dès 13,56 €
|
|
| 11018 |
R21
dès 13,29 €
|
|
| 13185 |
R06
dès 8,79 €
|
|
| 13188 |
R13
dès 12,76 €
|
|
| 14173 |
R14
dès 11,96 €
|
|
| 17751 |
R04
dès 8,79 €
|
|
| 21891 |
R22
dès 13,59 €
|
| N° Schéma | Référence constructeur | Description | Commande |
|---|---|---|---|
| 0787 | 103L6 Bearing Retainer Screw | Bearing Retainer Screw | — |
| 1520 | 105B2 Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 2110 | 103E9 Screw | Screw | — |
| 3363 | 10MLW Damper Rubber | Damper Rubber | — |
| 4150 | 103KS Screw | Screw | — |
| 5042 | 106F8 Anti-Reverse Cam Ring | Anti-Reverse Cam Ring | — |
| 5274 | 10LAF O Ring | O Ring | — |
| 5705 | 106HS Roller Clutch Ring | Roller Clutch Ring | — |
| 5707 | 106MU Washer | Washer | — |
| 5725 | 106V1 Oscillating Pawl | Oscillating Pawl | — |
| 7583 | 105NC E Lock | E Lock |
E-Ring 2,0mm
1,60 €
|
| 7859 | 10MPU Slider Retainer Screw | Slider Retainer Screw | — |
| 7926 | 103HN Screw | Screw | — |
| 8339 | 10PV5 Handle Shaft Seal | Handle Shaft Seal | — |
| 8480 | 104YQ Anti-Reverse Cam | Anti-Reverse Cam | — |
| 9191 | 10ML9 Screw | Screw | — |
| 11111 aussi n° 11018 | 104PV Ball Bearing | Ball Bearing |
R15
dès 13,56 €
|
| 11924 | 10LR0 Seal Plate | Seal Plate | — |
| 11926 | 102XF Washer | Washer | — |
| 11927 | 10BB8 Key Washer | Key Washer | — |
| 11968 | 10MLS O Ring | O Ring | — |
| 11971 | 106GV Worm Bushing Front | Worm Bushing Front | — |
| 11983 | 10PV1 Handle Shaft Screw | Handle Shaft Screw | — |
| 12973 | 10QBR Washer | Washer | — |
| 14286 | 10MPF Screw | Screw | — |
| 14560 | 10QS6 Line Clip | Line Clip | — |
| 14562 | 10LQ3 Line Clip Spring | Line Clip Spring | — |
| 14944 | 10J01 Spool Support B | Spool Support B | — |
| 15102 | 1038F Drag Click | Drag Click | — |
| 15150 | 105RZ E Lock | E Lock | — |
| 15152 | 105YW Bail Spring Guide A | Bail Spring Guide A | — |
| 15161 | 106PM Lever Spring | Lever Spring | — |
| 15331 | 105LH Bail Spring | Bail Spring | — |
| 15652 | 103LG Screw | Screw | — |
| 16063 | 1085E Bail Trip Lever | Bail Trip Lever | — |
| 16070 | 10EWH Spool Economizer (Accessory) | Spool Economizer (Accessory) | — |
| 16071 | 109WH Spool Economizer (Accessory) | Spool Economizer (Accessory) | — |
| 16072 | 10A9G Spool Economizer (Accessory) | Spool Economizer (Accessory) | — |
| 17002 | 10PVQ Screw | Screw | — |
| 17023 | 10PS0 Screw | Screw | — |
| 17269 | 10PVE Screw | Screw | — |
| 17636 | 10H4C Idle Gear C | Idle Gear C | — |
| 18572 | 10TQC Spool Support A | Spool Support A | — |
| 18574 | 10QVW Rotor Brim | Rotor Brim | — |
| 18576 | 10STM Line Roller Support Collar | Line Roller Support Collar | — |
| 18580 | 10QVV Bail Spring Cover | Bail Spring Cover | — |
| 18582 | 10QVU Bail Hold Support Guard | Bail Hold Support Guard | — |
| 18583 | 10STC Line Roller Support | Line Roller Support | — |
| 18589 | 10RYK Idle Gear | Idle Gear | — |
| 18596 | 10JXP Oscillating Slider Bushing | Oscillating Slider Bushing | — |
| 18758 | 10TK0 Washer | Washer | — |
| 19615 | 10160 Washer | Washer | — |
| 19638 | 1015S O Ring | O Ring | — |
| 19744 | 100XZ Washer | Washer | — |
| 19745 | 104FH Washer | Washer | — |
| 20871 | 10SF4 Bushing | Bushing | — |
| 21650 | 10T0U Screw | Screw | — |
| 21870 | 100JG Drag Washer | Drag Washer | — |
| 21874 | 10S65 Screw | Screw | — |
| 21890 | 10RAR Bearing Collar | Bearing Collar | — |
| 21892 | 10RAQ Bushing | Bushing | — |
| 21893 | 10RB6 Line Roller | Line Roller | — |
| 21894 | 10RAS Spacer | Spacer | — |
| 21931 | 10SE7 Handle Knob | Handle Knob | — |
| 21932 | 10SEA Handle Knob Seal | Handle Knob Seal | — |
| 22015 | 10SP4 Washer | Washer | — |
| 22016 | 10SP1 Washer | Washer | — |
| 22165 | 100Y0 Spool Washer | Spool Washer | — |
| 22408 | 10SCU Drag Click Spring | Drag Click Spring | — |
| 22417 | 10SDU Screw | Screw | — |
| 22618 | 13Y92 Drag Knob | Drag Knob | — |
| 22620 | 13Y94 Line Safety Guard | Line Safety Guard | — |
| 22621 | 13Y95 Nut Lock Plate | Nut Lock Plate | — |
| 22622 | 13Y96 Spacer | Spacer | — |
| 22623 | 13Y97 Rotor Nut | Rotor Nut | — |
| 22624 | 13Y98 Rotor Assembly | Rotor Assembly | — |
| 22625 | 13Y99 Bail Spring Guide B | Bail Spring Guide B | — |
| 22626 | 13Y9A Spring Guide A Support Collar | Spring Guide A Support Collar | — |
| 22627 | 13Y9B Bail Arm | Bail Arm | — |
| 22628 | 13Y9C Bail Assembly | Bail Assembly | — |
| 22629 | 13Y9D Washer | Washer | — |
| 22630 | 13JXK Screw | Screw | — |
| 22631 | 13JXL Screw | Screw | — |
| 22632 | 13Y9E Screw | Screw | — |
| 22633 | 13Y9F Roller Clutch Assembly | Roller Clutch Assembly | — |
| 22635 | 13Y9H Anti-Reverse Lever | Anti-Reverse Lever | — |
| 22636 | 13Y9J Idle Gear B Shaft | Idle Gear B Shaft | — |
| 22637 | 13Y9K Idle Gear C Shaft | Idle Gear C Shaft | — |
| 22639 | 13Y9L Handle Screw Cap | Handle Screw Cap | — |
| 22640 | 13Y9M Body | Body | — |
| 22641 | 13Y9N Oscillating Guide B | Oscillating Guide B | — |
| 22642 | 13Y9P Worm Shaft | Worm Shaft | — |
| 22643 | 13Y9Q Worm Shaft Retainer | Worm Shaft Retainer | — |
| 22644 | 13Y9R Oscillating Guide | Oscillating Guide | — |
| 22645 | 13Y9S Main Shaft | Main Shaft | — |
| 22646 | 13Y9T Oscillating Slider | Oscillating Slider | — |
| 22647 | 13Y9U Oscillating Pawl Cover | Oscillating Pawl Cover | — |
| 22652 | 13Y9Z Rear Protector | Rear Protector | — |
| 22653 | 13YA0 Handle Assembly | Handle Assembly | — |
| 22654 | 13YA1 Handle Shaft Cover | Handle Shaft Cover | — |
| 22655 | 13MAY Handle Shaft | Handle Shaft | — |
| 22656 | 13YA2 Handle Shank Assembly | Handle Shank Assembly | — |
| 22661 | 13YA7 Spool Power Aero 14000 PG XSC | Spool Power Aero 14000 PG XSC | — |
| 22662 | 13YA8 Pinion Gear | Pinion Gear | — |
| 22663 | 13MPN Idle Gear Large | Idle Gear Large | — |
| 22664 | 13YA9 Idle Gear Small | Idle Gear Small | — |
| 22665 | 13YAA Drive Gear | Drive Gear | — |
| 22666 | 13YAB Side Cover Assembly | Side Cover Assembly | — |
| 22667 | 13YAC Spare Spool PA 14000 PG XSC | Spare Spool PA 14000 PG XSC | — |
| 22801 | 145FK Metal Washer | Metal Washer | — |
