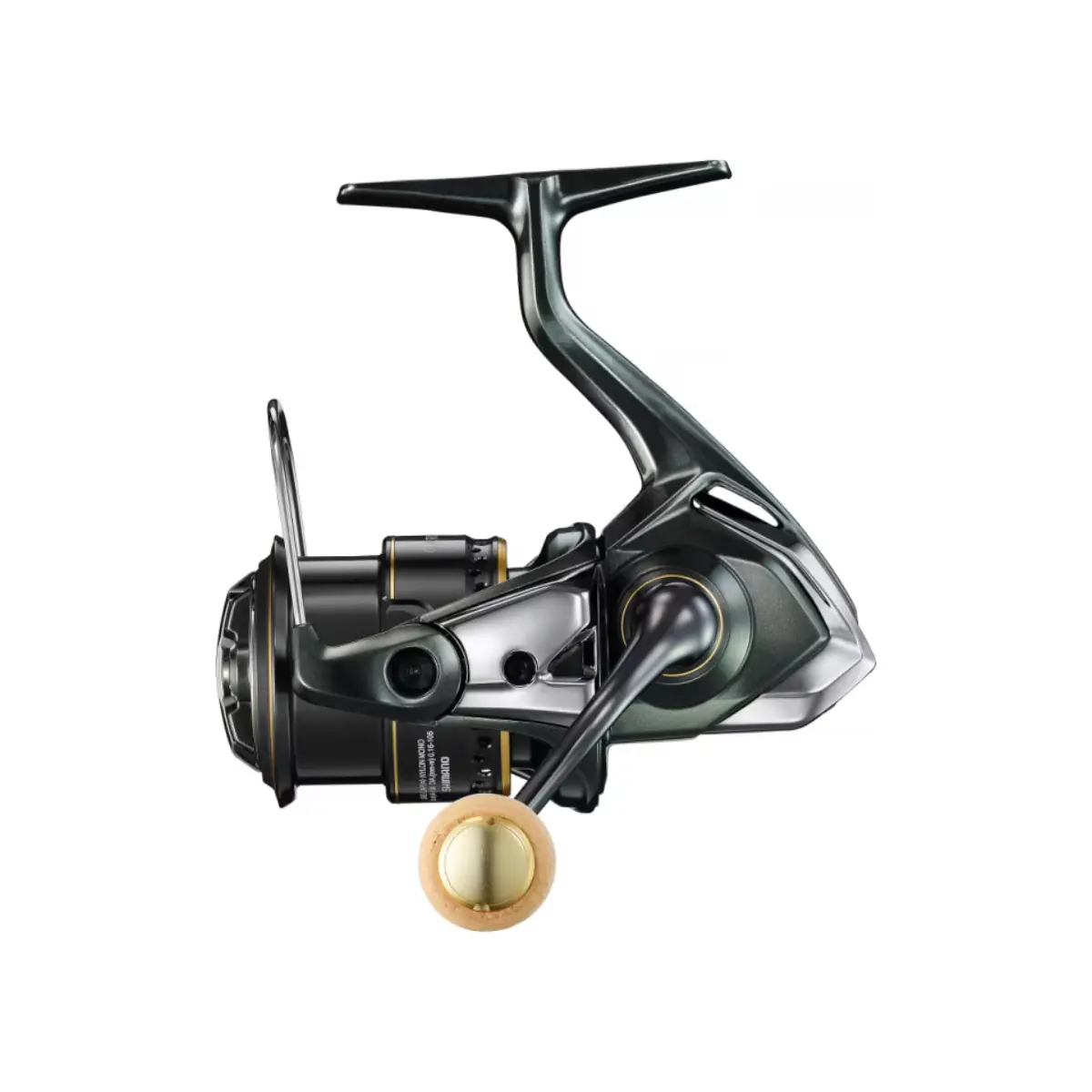

Cette page regroupe la vue éclatée, les pièces compatibles et les solutions d'entretien pour le SHIMANO 23 CARDIFF XR C2000S HG (2023).
Retrouvez rapidement les roulements de bobine, roulements à billes, roulement de galet, freins Carbontex, pièces détachées d'origine et accessoires associés à ce modèle.
| N° Schéma | Référence / Pièce | Action |
|---|---|---|
| 12969 |
R19
dès 10,99 €
|
|
| 13269 |
R05
dès 10,39 €
|
|
| 13274 |
R19
dès 10,99 €
|
|
| 13381 |
R20
dès 11,96 €
|
|
| 13829 |
R07
dès 10,39 €
|
|
| 19976 |
R21
dès 13,29 €
|
|
| 19998 |
R18
dès 10,99 €
|
| N° Schéma | Référence constructeur | Description | Commande |
|---|---|---|---|
| 0647 | 10QG5 Screw | Screw | — |
| 7995 | 10B87 Drag Washers Retainer | Drag Washers Retainer | — |
| 9833 | 107V2 Ratchet Spring | Ratchet Spring | — |
| 11166 | 10KFA Spacer | Spacer | — |
| 13673 | 10LAA O Ring | O Ring | — |
| 14867 | 103PE Spool Support | Spool Support | — |
| 16801 | 10K9C Washer | Washer | — |
| 17326 | 10R2N Bail Spring | Bail Spring | — |
| 17415 | 106ZC Click Pin | Click Pin | — |
| 17664 | 10TRB Screw | Screw | — |
| 17666 | 10BU9 Spool Washer | Spool Washer | — |
| 17667 | 10PN3 Screw | Screw | — |
| 17680 | 1018Z Washer | Washer | — |
| 17681 | 10TPC Line Roller Support | Line Roller Support | — |
| 17684 | 107AB Bail Spring Seat | Bail Spring Seat | — |
| 17695 | 10PXV Handle Shaft Seal | Handle Shaft Seal | — |
| 17700 | 10LFA Screw | Screw | — |
| 17773 | 102ZG Drag Washer | Drag Washer |
Carbontex pour Shimano Spinning S#26
13,99 €
|
| 18199 | 10ECK Washer | Washer | — |
| 18206 | 10THY Spool Bushing | Spool Bushing | — |
| 18207 | 10SYS Drag Click Ratchet | Drag Click Ratchet | — |
| 18208 | 10TJM Spacer | Spacer | — |
| 18210 | 10TLJ Screw | Screw | — |
| 18470 | 10DNN Drag Click Spring | Drag Click Spring | — |
| 18551 | 10K96 Washer | Washer | — |
| 18625 | 10NC0 Wrench (Accessory) | Wrench (Accessory) | — |
| 18724 | 101D9 Spring Guide A Support | Spring Guide A Support | — |
| 18732 | 101D5 Rotor Ring | Rotor Ring | — |
| 18735 | 10S2L Roller Clutch Assembly | Roller Clutch Assembly | — |
| 18741 | 10SYU Washer | Washer | — |
| 18744 | 10DK0 Idle Gear | Idle Gear | — |
| 18905 | 10021 Idle Gear B Small | Idle Gear B Small | — |
| 19421 | 10RFW Screw | Screw | — |
| 19745 | 104FH Washer | Washer | — |
| 19746 | 101AY Washer | Washer | — |
| 19775 | 100WY Screw | Screw | — |
| 19777 | 100WT Screw | Screw | — |
| 19780 | 100WX O Ring | O Ring | — |
| 19781 | 10DXE O Ring | O Ring | — |
| 19793 | 1017W Bearing Water Proof | Bearing Water Proof | — |
| 19802 | 1017Y Bail Trip Strike | Bail Trip Strike | — |
| 19805 | 10RDL Main Shaft Collar | Main Shaft Collar | — |
| 19807 | 1018D Oscillating Pawl | Oscillating Pawl | — |
| 19818 | 10182 Oscillating Pawl Cover | Oscillating Pawl Cover | — |
| 19822 | 10DWD Bearing Retainer | Bearing Retainer | — |
| 19831 | 1009E O Ring | O Ring | — |
| 19837 | 1009K Line Roller Bushing | Line Roller Bushing | — |
| 19839 | 10RFZ Line Roller Spacer | Line Roller Spacer | — |
| 19856 | 10E5Y Bail Trip Lever | Bail Trip Lever | — |
| 19857 | 10SAN Bail Spring Guide A | Bail Spring Guide A | — |
| 19866 | 1009Z O Ring | O Ring | — |
| 19876 | 1009B Bail Spring Guide A Bush | Bail Spring Guide A Bush | — |
| 19883 | 10QXQ Friction Ring | Friction Ring | — |
| 19884 | 1009L Oscillating Slider Bushing | Oscillating Slider Bushing | — |
| 19886 | 1009W Flange Water Proof | Flange Water Proof | — |
| 19899 | 1009Y Roller Clutch Inner | Roller Clutch Inner | — |
| 19926 | 1076N Rotor Nut Lock Plate | Rotor Nut Lock Plate | — |
| 19959 | 1009A Line Roller | Line Roller | — |
| 19989 | 103GW Screw | Screw | — |
| 19990 | 1055H Screw | Screw | — |
| 19992 | 1009G Worm Bushing Front | Worm Bushing Front |
R33
dès 11,96 €
|
| 19993 | 10S7C Worm Shaft Retainer | Worm Shaft Retainer | — |
| 19994 | 10TBA Washer | Washer | — |
| 19997 | 10HE5 Washer | Washer | — |
| 20069 | 10HE7 Click Spring | Click Spring | — |
| 20133 | 101HM Main Shaft | Main Shaft | — |
| 20139 | 10E3K O Ring | O Ring | — |
| 20150 | 10E44 Line Roller Collar | Line Roller Collar | — |
| 20156 | 10RSE Screw | Screw | — |
| 20157 | 10E60 Oscillating Guide A | Oscillating Guide A | — |
| 20158 | 10E62 Worm Shaft | Worm Shaft | — |
| 20165 | 10E5Q Idle Gear B Shaft | Idle Gear B Shaft | — |
| 20171 | 10DZE Handle Shaft Cover B | Handle Shaft Cover B | — |
| 20174 | 10E55 Washer | Washer | — |
| 20181 | 10RU6 Pinion Gear | Pinion Gear | — |
| 20186 | 1002D Idle Gear Large | Idle Gear Large | — |
| 20189 | 10TGA Drive Gear | Drive Gear | — |
| 20987 | 10RX2 Screw | Screw | — |
| 20999 | 100RN Rotor Nut | Rotor Nut | — |
| 21006 | 100RU Washer | Washer | — |
| 21007 | 100F9 Bearing Retainer | Bearing Retainer | — |
| 21009 | 100RR Washer | Washer | — |
| 21106 | 103NA Screw | Screw | — |
| 21107 | 10SH9 Screw | Screw | — |
| 21108 | 10SHA Screw | Screw | — |
| 21109 | 10RX3 Screw | Screw | — |
| 21110 | 10SH0 Screw | Screw | — |
| 21117 | 10RAB Bail Hold Support Guard | Bail Hold Support Guard | — |
| 21119 | 100AS Rotor Brim | Rotor Brim | — |
| 21124 | 10S0U Rear Protector | Rear Protector | — |
| 21126 | 10RAC Counter Weight Cover | Counter Weight Cover | — |
| 21136 | 10DNJ Drag Click | Drag Click | — |
| 22754 | 13YYG Drag Knob | Drag Knob | — |
| 22755 | 13K0V Washer | Washer | — |
| 22757 | 13YYJ Bail Arm | Bail Arm | — |
| 22758 | 13YWD Rotor | Rotor | — |
| 22759 | 13YWC Bail Assembly | Bail Assembly | — |
| 22761 | 13YWG Handle Shank Assembly | Handle Shank Assembly | — |
| 22762 | 13HWG Handle Knob Assembly | Handle Knob Assembly | — |
| 22763 | 13MHK Handle Knob Seal | Handle Knob Seal | — |
| 22764 | 13YYK Handle Assembly | Handle Assembly | — |
| 22765 | 13YYL Body | Body | — |
| 22766 | 13YYM Spool Cardiff XR C2000SHG | Spool Cardiff XR C2000SHG | — |
| 22767 | 13YWF Side Cover Assembly | Side Cover Assembly | — |
