Disassembly – 15 ZILLION TW 1516 XXHL – Step-by-step guide

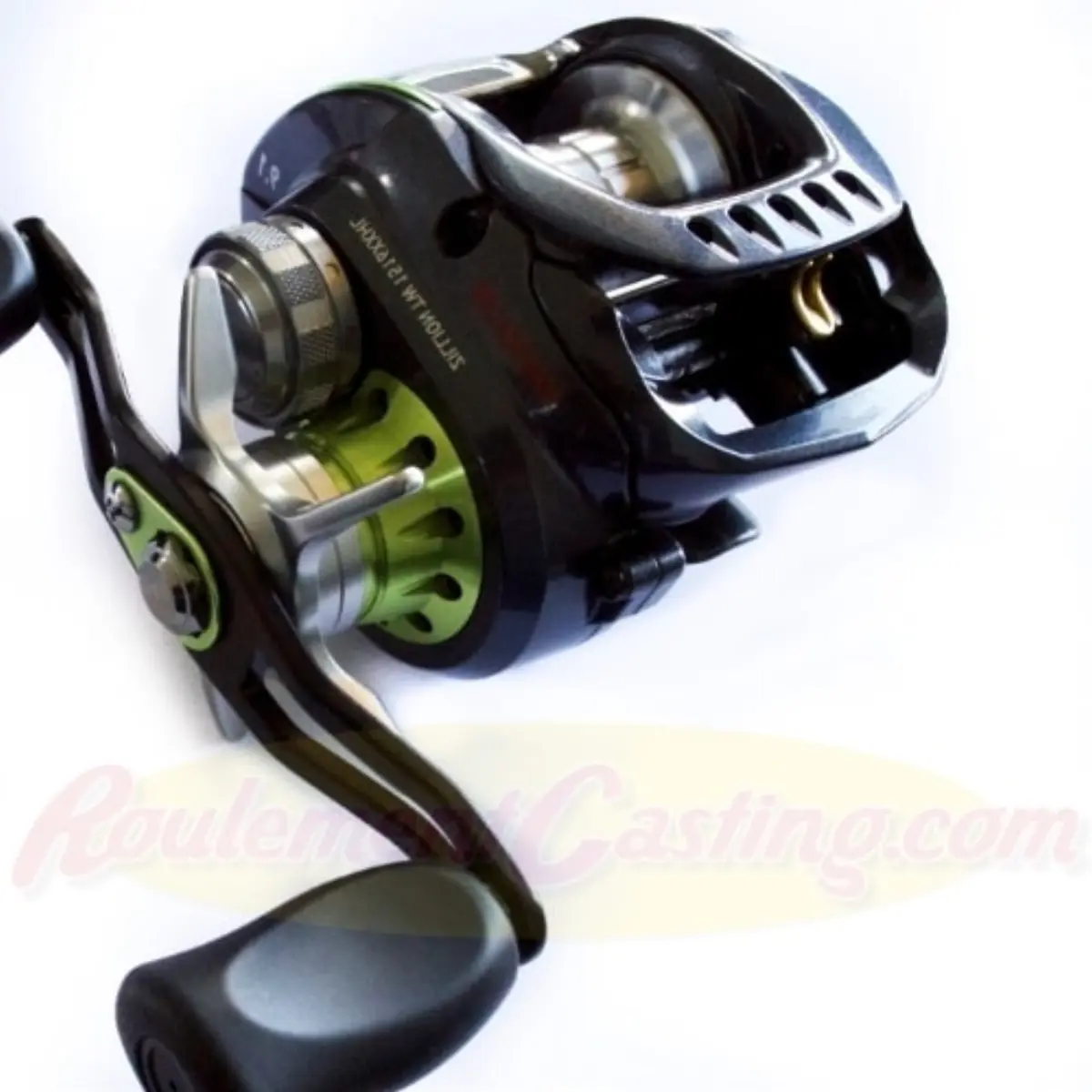

This detailed tutorial takes you step by step through the complete dismantling of the casting reel DAIWA (Japan Import) ZILLION TW 1516XXHL 2015, to facilitate maintenance, cleaning and the replacement of wear parts, particularly bearings.
Designed to be clear and practical, this guide is aimed at anglers wishing to maintain their equipment as well as those looking to improve the performance of their reel. Each step is illustrated to help you identify the components precisely, understand their role and carry out the work without risk of error. Thanks to the exploded view and parts table, you can quickly find the 120 manufacturer part numbers and compatible parts available. This saves you time, prevents ordering errors and ensures the long-term optimisation of your reel’s performance.
Why take apart a DAIWA (Japan Import) ZILLION TW 1516XXHL reel?
- Clean the internal components (grease, sand, salt, dirt)
- Replace worn or original bearings with high-precision models
- Improve throwing distance and the fluidity of the spin
- Reducing mechanical noise and vibrations
- Check the wear parts (gears, brake, axles)
Aims of the tutorial:
- How to dismantle a DAIWA (Japan Import) ZILLION TW 1516XXHL reel correctly
- Easily identify each part
- Access the bearings for maintenance or upgrading
- Improve the smoothness, precision and service life of the reel
Access to parts and compatibility
Thanks to the exploded view of the DAIWA (Japan Import) ZILLION TW 1516XXHL and the associated parts list, you can quickly identify each component: bearings, gears, brake washers, axles and structural parts. Each manufacturer’s part number makes it easy to find compatible spare parts and avoid any errors when ordering.
The reel bearings play a key role in performance. Replacing them with high-precision models (stainless steel, hybrid ceramic, ABEC 5 or ABEC 7) results in smoother rotation, improved spool inertia and optimised casting.
Optimisation and upgrading of the reel
Beyond maintenance: dismantling the reel DAIWA (Japan Import) ZILLION TW 1516XXHL also opens up the possibility of making improvements: upgrading the bearings, changing the gear ratio using a gear kit, upgrading the brake with Carbontex® discs, or using suitable lubricants. These optimisations allow you to tailor the reel to your fishing style: finesse fishing (BFS), power fishing, casting for distance or enhanced accuracy.
Reel disassembly guide – DAIWA (Imported from Japan) ZILLION TW 1516XXHL
This DAIWA (Japan Import) ZILLION TW 1516XXHL fishing reel disassembly guide provides a comprehensive step-by-step guide to cleaning, maintaining and upgrading your reel. Proper reel maintenance ensures better casting distance, smoother retrieval and a longer lifespan. Whether you are replacing spool bearings, upgrading to ceramic bearings, or carrying out a full clean, this tutorial helps you safely access all internal components and understand how they work.
- Step-by-step guide to dismantling a fishing reel
- A practical guide to maintenance and cleaning
- Spool bearing replacement and upgrade
- Improve casting distance and smoothness
- Identify reel parts using an exploded view
