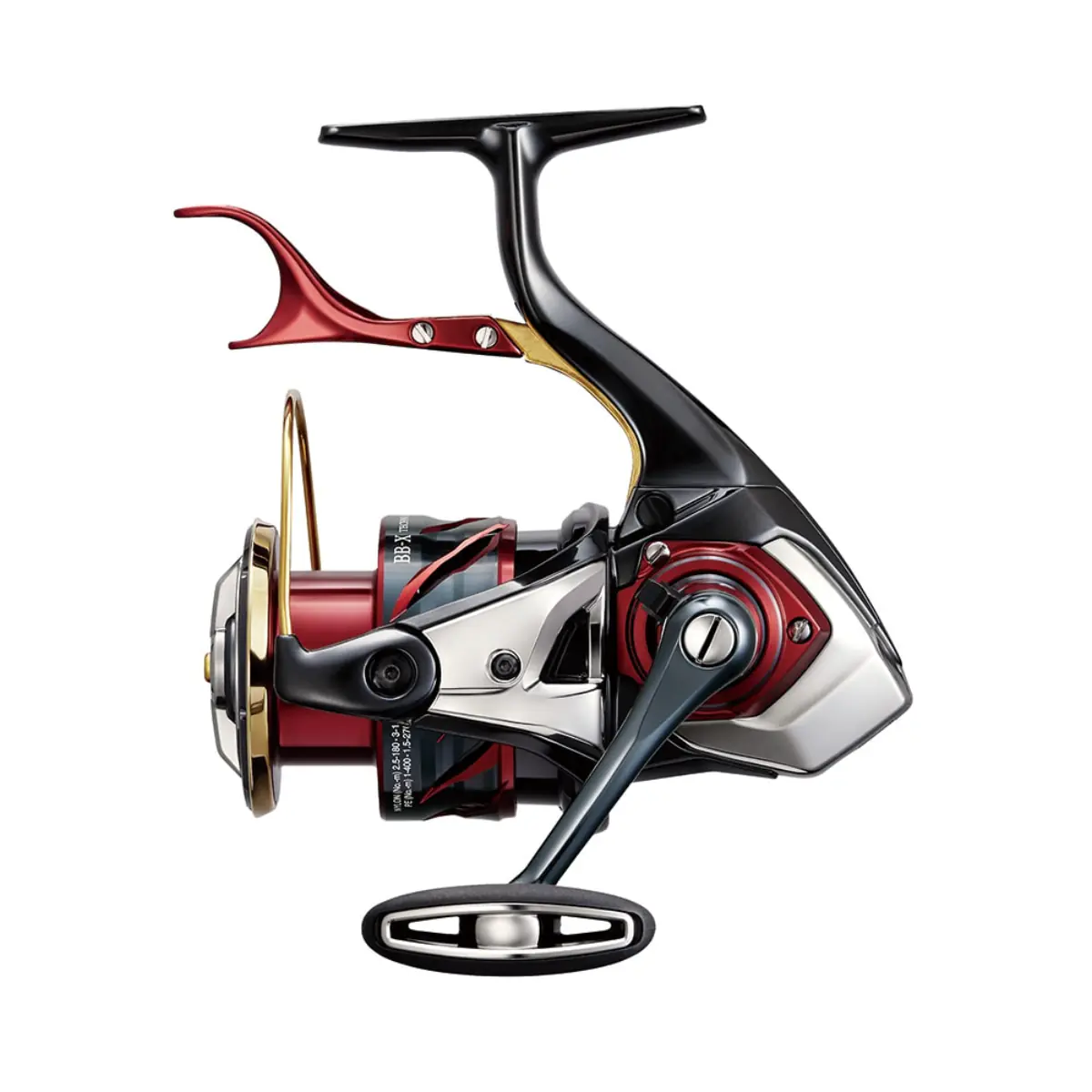

This page brings together the exploded view, the compatible parts and maintenance solutions for the SHIMANO (Japan Import) 24 BB-X TECHNIUM ファイアブラッド C3000D XXG S R (2024).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| 0103 |
R04
|
|
| 0138 |
R05
|
|
| 69 |
R07
|
|
| 64 |
R12
|
|
| 0045 |
R19
|
|
| 0132 |
R19
|
|
| 88 |
R21
|
|
| 0122 |
R24
|
|
| 71 |
R33
|
|
| 53 |
R39
|
|
| 0029 |
10TSK - Galet Line Roller Set - Shimano
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 0103 | 10EX8 Ball bearing | Ball bearing |
R04
|
| 0138 | 104VX Ball bearing | Ball bearing |
R05
|
| 0069 | 10RKR Ball bearing | Ball bearing |
R07
|
| 0064 | 104Q6 Ball bearing | Ball bearing |
R12
|
| 0045 | 104PN Ball bearing | Ball bearing |
R19
|
| 0132 | 104PP Ball bearing | Ball bearing |
R19
|
| 0088 | 10PDA Ball bearing | Ball bearing |
R21
|
| 0122 | 10SAM Ball bearing | Ball bearing |
R24
|
| 0071 | 10PC0 Ball bearing | Ball bearing |
R33
|
| 0053 | 10KXA Ball bearing | Ball bearing |
R39
|
| 0029 | 10TSK Line roller (with bearing) | Line roller (with bearing) |
10TSK - Galet Line Roller Set - Shimano
|
Leave your reel in the hands of our technicians for a full service: cleaning, lubrication, replacement of worn parts and a general check-up.
Discover our maintenance packages
