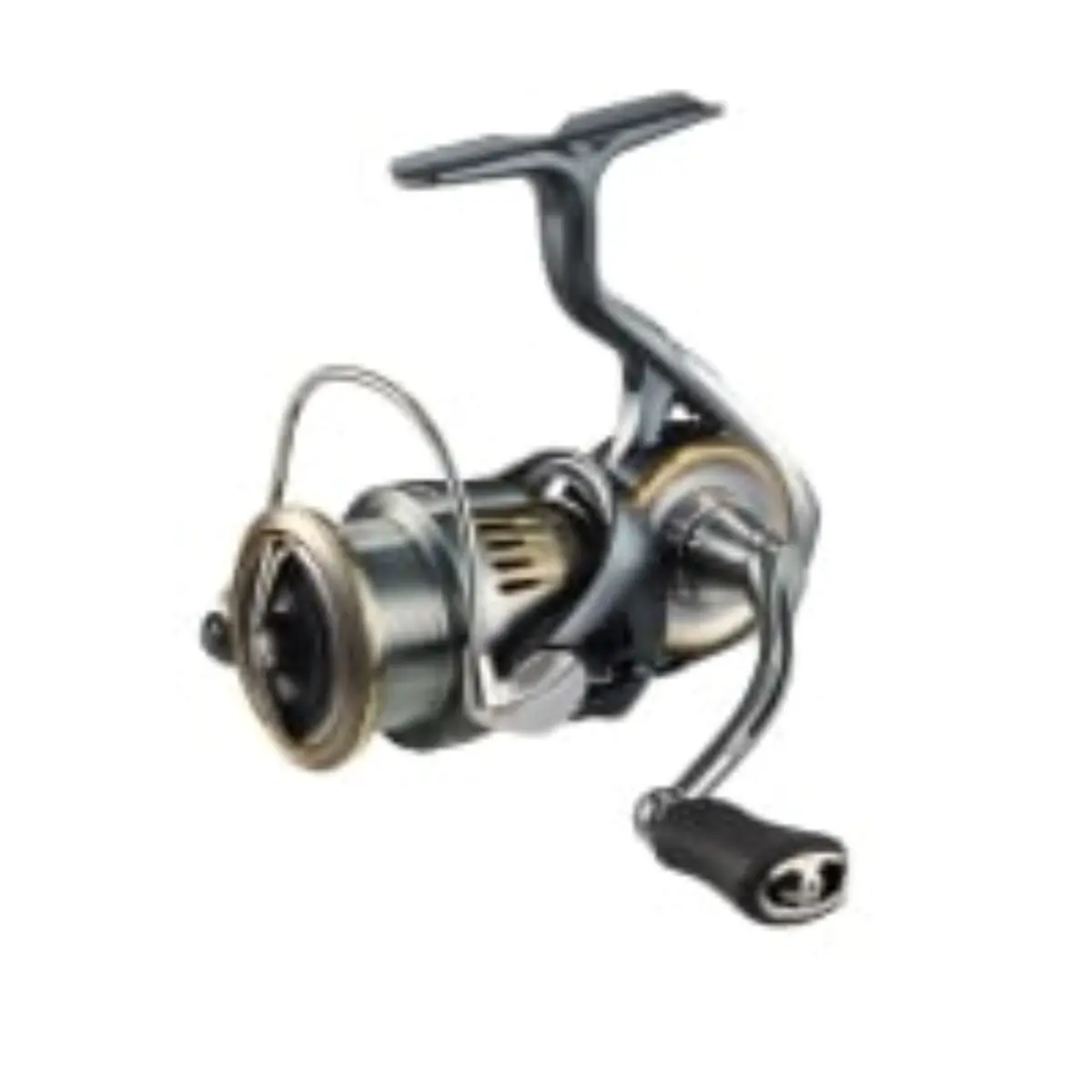

This page brings together the exploded view, the compatible parts and maintenance solutions for the DAIWA (Japan Import) 23 Airity PC LT2500 (2023).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Part number | Action |
|---|---|---|
| Roulement de poignée |
R05
|
|
| 80 |
R07
|
|
| 107 |
R24
|
|
| 23 |
R27
|
|
| 52 |
R34
|
|
| 75 |
R36
|
|
| 8 |
R47
|
|
| 96 |
R57
|
|
| 110 |
R57
|
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 202 | 6G469009 Ball-bearing handle knob | Ball-bearing handle knob |
R05
|
| 80 | 6G538007 Pinion ball bearing (B) | Pinion ball bearing (B) |
R06
|
| 107 | 6G686904 Oscillating ball bearing | Oscillating ball bearing |
R24
|
| 23 | 6H959602 Rotor Nut Ball Bear Link | Rotor Nut Ball Bear Link |
R27
|
| 52 | 6J256702 Roller ball bearings | Roller ball bearings |
R34
|
| 75 | 6G279602 Pinion ball bearing (A) | Pinion ball bearing (A) |
R36
|
| 110 | 6H739702 Drive ball bearing (B) | Drive ball bearing (B) |
R38
|
| 8 | 6G212503 Spool ball bearing | Spool ball bearing |
R47
|
| 16 | 6H624801 Spool Metal Color | Spool Metal Color |
R57
|
| 96 | 6G818902 Drive ball bearing (A) | Drive ball bearing (A) |
R57
|
Leave your reel in the hands of our technicians for a full service: cleaning, lubrication, replacement of worn parts and a general check-up.
Discover our maintenance packages
