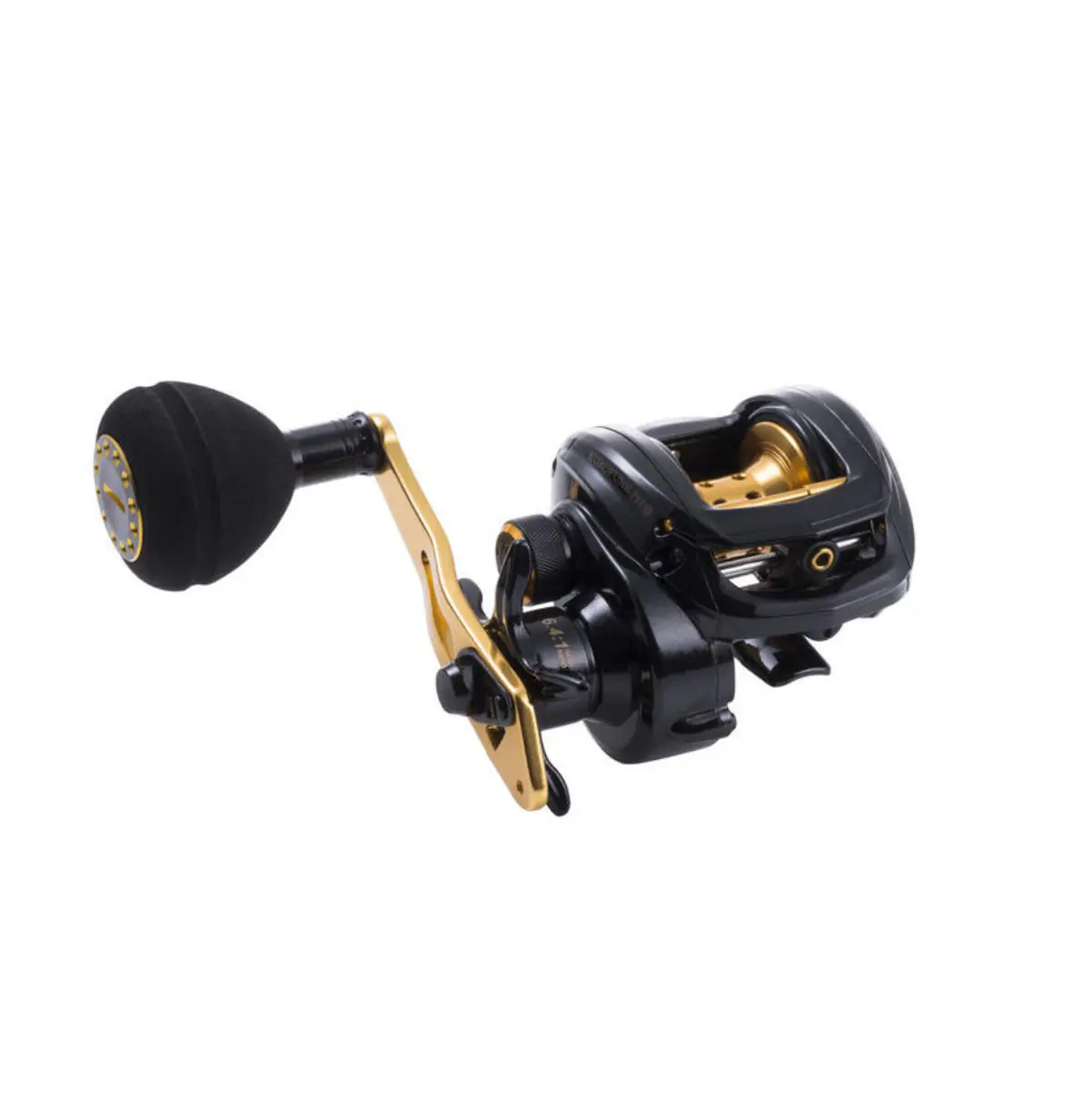

This page brings together the exploded view, the compatible parts and maintenance solutions for the ABU GARCIA KUROFUNE PH (2019).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 28 | 1116186 Ball Bearing | Ball Bearing |
R06
dès 8,79 €
|
| 53 | 1493307 Ball Bearing | Ball Bearing |
R01
dès 8,79 €
|
| 72 aussi n° 74 | 1208088 Bushing For Ball Bearing | Bushing For Ball Bearing |
R07
dès 10,39 €
|
| 74 aussi n° 72 | 1208088 Bushing For Ball Bearing | Bushing For Ball Bearing |
R07
dès 10,39 €
|
| 81 | 1281216 Ball Bearing | Ball Bearing |
R02
dès 11,96 €
|
| 95 | 5230 Ball Bearing | Ball Bearing |
R01
dès 8,79 €
|
| 1 | 1517033 Frame | Frame | — |
| 2 | 1281152 Line Guide | Line Guide | — |
| 3 | 1280905 Level Wind Tube | Level Wind Tube | — |
| 4 | 1281170 Worm Shaft | Worm Shaft | — |
| 5 | 1313502 Worm Shaft Bushing | Worm Shaft Bushing |
R05
dès 10,39 €
|
| 6 | 1125732 Worm Shaft Gear | Worm Shaft Gear | — |
| 7 | 1125733 Worm Shaft Pin | Worm Shaft Pin | — |
| 8 | 1313359 Worm Shaft Pin Holder | Worm Shaft Pin Holder | — |
| 9 | 1185695 Worm Shaft Washer | Worm Shaft Washer | — |
| 10 aussi n° 26 | 1124201 Retainer | Retainer |
E-Ring 3.0 mm
1,60 €
|
| 11 | 1280907 Line Guide Shaft | Line Guide Shaft | — |
| 12 | 1125806 Pawl | Pawl | — |
| 13 | 1125736 Washer | Washer | — |
| 14 | 1129323 Line Guide Nut | Line Guide Nut | — |
| 15 | 1513340 Front Cover | Front Cover | — |
| 16 | 1185912 Front Cover Screw | Front Cover Screw | — |
| 17 | 1289969 Kick Lever | Kick Lever | — |
| 18 | 1125745 Kick Lever Spring | Kick Lever Spring | — |
| 19 | 1380524 Clutch Spring | Clutch Spring | — |
| 20 | 1380525 Lift Curve | Lift Curve | — |
| 21 | 1380526 Lift Curve Plate | Lift Curve Plate | — |
| 22 | 1116183 Screw | Screw | — |
| 23 | 1252059 Screw | Screw | — |
| 24 | 1380575 Thumb Bar | Thumb Bar | — |
| 25 | 1252077 Screw | Screw | — |
| 26 aussi n° 10 | 1124201 Retainer | Retainer |
E-Ring 3.0 mm
1,60 €
|
| 27 | 1380528 Washer | Washer | — |
| 29 | 1380529 Main Gear Shaft Plate | Main Gear Shaft Plate | — |
| 30 | 1144221 Screw | Screw | — |
| 31 | 1380530 Washer | Washer | — |
| 32 | 1251634 Level Wind Gear | Level Wind Gear | — |
| 33 | 1415560 Drive Shaft | Drive Shaft | — |
| 34 | 1144195 Ratchet | Ratchet | — |
| 35 | 1281133 Drag Washer | Drag Washer | — |
| 36 | 1453867 Main Gear | Main Gear | — |
| 37 | 1281218 Drag Washer | Drag Washer | — |
| 38 | 1281219 Drag Washer | Drag Washer | — |
| 39 | 1281220 Ear Washer | Ear Washer | — |
| 40 | 1308885 Pressure Washer (K) | Pressure Washer (K) | — |
| 42 | 1257782 Sleeve | Sleeve | — |
| 44 | 1125753 Yoke | Yoke | — |
| 45 | 1116237 Yoke Spring | Yoke Spring | — |
| 46 | 1125808 Pinion(6.4:1) | Pinion(6.4:1) | — |
| 47 | 1513341 Lock Pin | Lock Pin | — |
| 48 | 1116226 Retainer | Retainer |
E-Ring 2.0 mm
1,60 €
|
| 49 | 1313476 Spring | Spring | — |
| 50 | 1306819 One Way Clutch | One Way Clutch | — |
| 51 | 1517034 Gear Side Plate | Gear Side Plate | — |
| 52 | 1185714 O-Ring | O-Ring | — |
| 54 aussi n° 96 | 1104790 Ring | Ring | — |
| 55 | 1125768 Click Washer | Click Washer | — |
| 56 | 1125769 Click Spring | Click Spring | — |
| 57 | 1125770 Friction Washer | Friction Washer | — |
| 58 aussi n° 97 | 1125771 Rubber Washer | Rubber Washer | — |
| 59 | 1125772 Click Washer | Click Washer | — |
| 60 | 1513343 Brake Knob | Brake Knob | — |
| 61 | 1257016 Screw | Screw | — |
| 63 aussi n° 64 | 1252079 Screw | Screw | — |
| 64 aussi n° 63 | 1252079 Screw | Screw | — |
| 66 | 1132925 Click Spring Holder | Click Spring Holder | — |
| 67 | 1125780 Click Spring | Click Spring | — |
| 68 | 1117208 Spring Washer | Spring Washer | — |
| 69 | 1513344 Star Wheel | Star Wheel | — |
| 70 | 1125783 Washer | Washer | — |
| 71 | 1517035 Handle | Handle | — |
| 73 | 1453942 Handle Knob | Handle Knob | — |
| 75 | 1208090 Screw | Screw | — |
| 76 | 1400422 Handle Knob Cap | Handle Knob Cap | — |
| 77 | 1372161 Handle Nut | Handle Nut | — |
| 78 | 1252035 Handle Nut Cover | Handle Nut Cover | — |
| 79 | 1203407 Screw | Screw | — |
| 80 | 1415586 Spool | Spool | — |
| 82 | 1187619 Spool Shaft Pin | Spool Shaft Pin | — |
| 84 | 1517036 Palm Side Plate | Palm Side Plate | — |
| 85 | 1513347 Mag Dial | Mag Dial | — |
| 88 | 1380541 Bearing Housing | Bearing Housing | — |
| 93 | 1185770 Spool Cover Screw | Spool Cover Screw | — |
| 94 | 1125797 Washer | Washer | — |
| 96 aussi n° 54 | 1104790 Ring | Ring | — |
| 97 aussi n° 58 | 1125771 Rubber Washer | Rubber Washer | — |
| 100 | 1517037 Gear Side Complete | Gear Side Complete | — |
| 101 | 1517038 Handle Complete | Handle Complete | — |
| 102 | 1415589 Spool Complete | Spool Complete | — |
| 103 | 1517039 Palm Side Complete | Palm Side Complete | — |
| 104 | 1144194 Stopper | Stopper | — |
