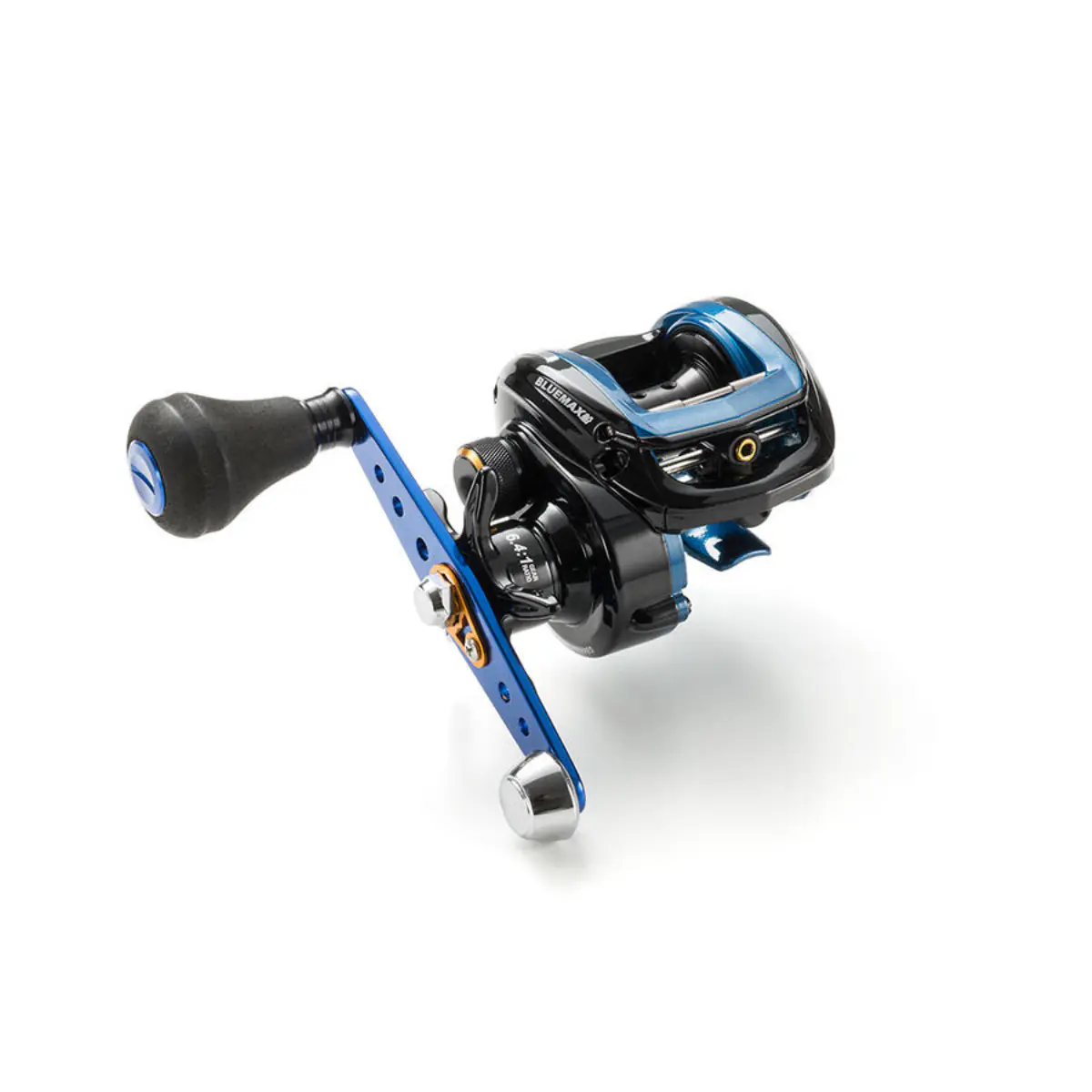

This page brings together the exploded view, the compatible parts and maintenance solutions for the ABU GARCIA BLUE MAX FUNE3 L (2017).
Find the reel bearings, ball bearings, roller bearing, Carbontex brakes, genuine spare parts and accessories for this model.
| Diagram No. | Manufacturer's reference | Description | Order |
|---|---|---|---|
| 5 | 1313502 Worm Shaft Bushing | Worm Shaft Bushing |
R05
dès 10,39 €
|
| 28 | 1116186 Ball Bearing | Ball Bearing |
R06
dès 8,79 €
|
| 53 | 1185879 Bushing | Bushing | — |
| 72 aussi n° 74 | 1208088 Bushing For Ball Bearing | Bushing For Ball Bearing |
R07
dès 10,39 €
|
| 74 aussi n° 72 | 1208088 Bushing For Ball Bearing | Bushing For Ball Bearing |
R07
dès 10,39 €
|
| 81 | 1187625 Spool Ball Bearing | Spool Ball Bearing |
R02
dès 11,96 €
|
| 95 | 1125827 Ball Bearing | Ball Bearing |
R01
dès 8,79 €
|
| 1 | 1441792 Frame | Frame | — |
| 2 | 1281152 Line Guide | Line Guide | — |
| 3 | 1280905 Level Wind Tube | Level Wind Tube | — |
| 4 | 1280906 Worm Shaft | Worm Shaft | — |
| 6 | 1125732 Worm Shaft Gear | Worm Shaft Gear | — |
| 7 | 1125733 Worm Shaft Pin | Worm Shaft Pin | — |
| 8 | 1313359 Worm Shaft Pin Holder | Worm Shaft Pin Holder | — |
| 9 | 1185695 Worm Shaft Washer | Worm Shaft Washer | — |
| 10 aussi n° 26 | 1124201 Retainer | Retainer |
E-Ring 3.0 mm
1,60 €
|
| 11 | 1280907 Line Guide Shaft | Line Guide Shaft | — |
| 12 | 1125806 Pawl | Pawl | — |
| 13 | 1125736 Washer | Washer | — |
| 14 | 1129323 Line Guide Nut | Line Guide Nut | — |
| 15 | 1380574 Front Cover | Front Cover | — |
| 16 | 1185912 Front Cover Screw | Front Cover Screw | — |
| 17 | 1289971 Kick Lever | Kick Lever | — |
| 18 | 1127701 Kick Lever Spring | Kick Lever Spring | — |
| 19 | 1380547 Clutch Spring | Clutch Spring | — |
| 20 | 1380548 Lift Curve | Lift Curve | — |
| 21 | 1380526 Lift Curve Plate | Lift Curve Plate | — |
| 22 | 1116183 Screw | Screw | — |
| 23 | 1252059 Screw | Screw | — |
| 24 | 1380575 Thumb Bar | Thumb Bar | — |
| 25 | 1252077 Screw | Screw | — |
| 26 aussi n° 10 | 1124201 Retainer | Retainer |
E-Ring 3.0 mm
1,60 €
|
| 27 | 1380528 Washer | Washer | — |
| 29 | 1380529 Main Gear Shaft Plate | Main Gear Shaft Plate | — |
| 30 | 1144221 Screw | Screw | — |
| 31 | 1380530 Washer | Washer | — |
| 32 | 1251634 Level Wind Gear | Level Wind Gear | — |
| 33 | 1415576 Drive Shaft | Drive Shaft | — |
| 34 | 1144195 Ratchet | Ratchet | — |
| 35 | 1281133 Drag Washer | Drag Washer | — |
| 36 | 1214278 Main Gear | Main Gear | — |
| 37 | 1190698 Drag Washer | Drag Washer | — |
| 40 | 1144201 Pressure Washer | Pressure Washer | — |
| 42 | 1257782 Sleeve | Sleeve | — |
| 43 | 1380567 Speed Clutch Button | Speed Clutch Button | — |
| 44 | 1127703 Yoke | Yoke | — |
| 45 | 1116237 Yoke Spring | Yoke Spring | — |
| 46 | 1127705 Pinion | Pinion | — |
| 47 | 1380532 Lock Pin | Lock Pin | — |
| 48 | 1116226 Retainer | Retainer |
E-Ring 2.0 mm
1,60 €
|
| 49 | 1313476 Spring | Spring | — |
| 50 | 1306819 One Way Clutch | One Way Clutch | — |
| 51 | 1441793 Gear Side Plate | Gear Side Plate | — |
| 52 | 1185714 O-Ring | O-Ring | — |
| 54 aussi n° 96 | 1104790 Ring | Ring | — |
| 57 | 1125829 Friction Washer | Friction Washer | — |
| 58 | 1125828 Rubber Washer | Rubber Washer | — |
| 60 | 1441776 Brake Knob | Brake Knob | — |
| 61 | 1257016 Screw | Screw | — |
| 63 aussi n° 64 | 1252079 Screw | Screw | — |
| 64 aussi n° 63 | 1252079 Screw | Screw | — |
| 65 | 1252081 Washer | Washer | — |
| 68 | 1117208 Spring Washer | Spring Washer | — |
| 69 | 1380588 Star Wheel | Star Wheel | — |
| 70 | 1117205 Handle Washer | Handle Washer | — |
| 71 | 1441787 Handle | Handle | — |
| 73 | 1321186 Handle Knob | Handle Knob | — |
| 75 | 1281320 Screw | Screw | — |
| 76 | 1321189 Handle Knob Cap | Handle Knob Cap | — |
| 77 | 1203418 Handle Nut | Handle Nut | — |
| 78 | 1203406 Handle Nut Cover | Handle Nut Cover | — |
| 79 | 1415566 Screw | Screw | — |
| 80 | 1441788 Spool | Spool | — |
| 82 | 1187619 Spool Shaft Pin | Spool Shaft Pin | — |
| 84 | 1380552 Palm Side Plate | Palm Side Plate | — |
| 85 | 1380540 Mag Dial | Mag Dial | — |
| 86 | 1125791 Click Spring | Click Spring | — |
| 87 | 1185923 Slide Cam | Slide Cam | — |
| 88 | 1380541 Bearing Housing | Bearing Housing | — |
| 89 | 1187623 Magnet Holder Spring | Magnet Holder Spring | — |
| 90 | 1252096 Magnet Plate | Magnet Plate | — |
| 91 | 1252095 Magnet Holder | Magnet Holder | — |
| 92 | 1116222 Magnet | Magnet | — |
| 93 | 1185770 Spool Cover Screw | Spool Cover Screw | — |
| 94 | 1125797 Washer | Washer | — |
| 96 aussi n° 54 | 1104790 Ring | Ring | — |
| 100 | 1441794 Gear Side Complete | Gear Side Complete | — |
| 101 | 1441790 Handle Complete | Handle Complete | — |
| 102 | 1441791 Spool Complete | Spool Complete | — |
| 103 | 1380554 Palm Side Complete | Palm Side Complete | — |
| 104 | 1144194 Stopper | Stopper | — |
