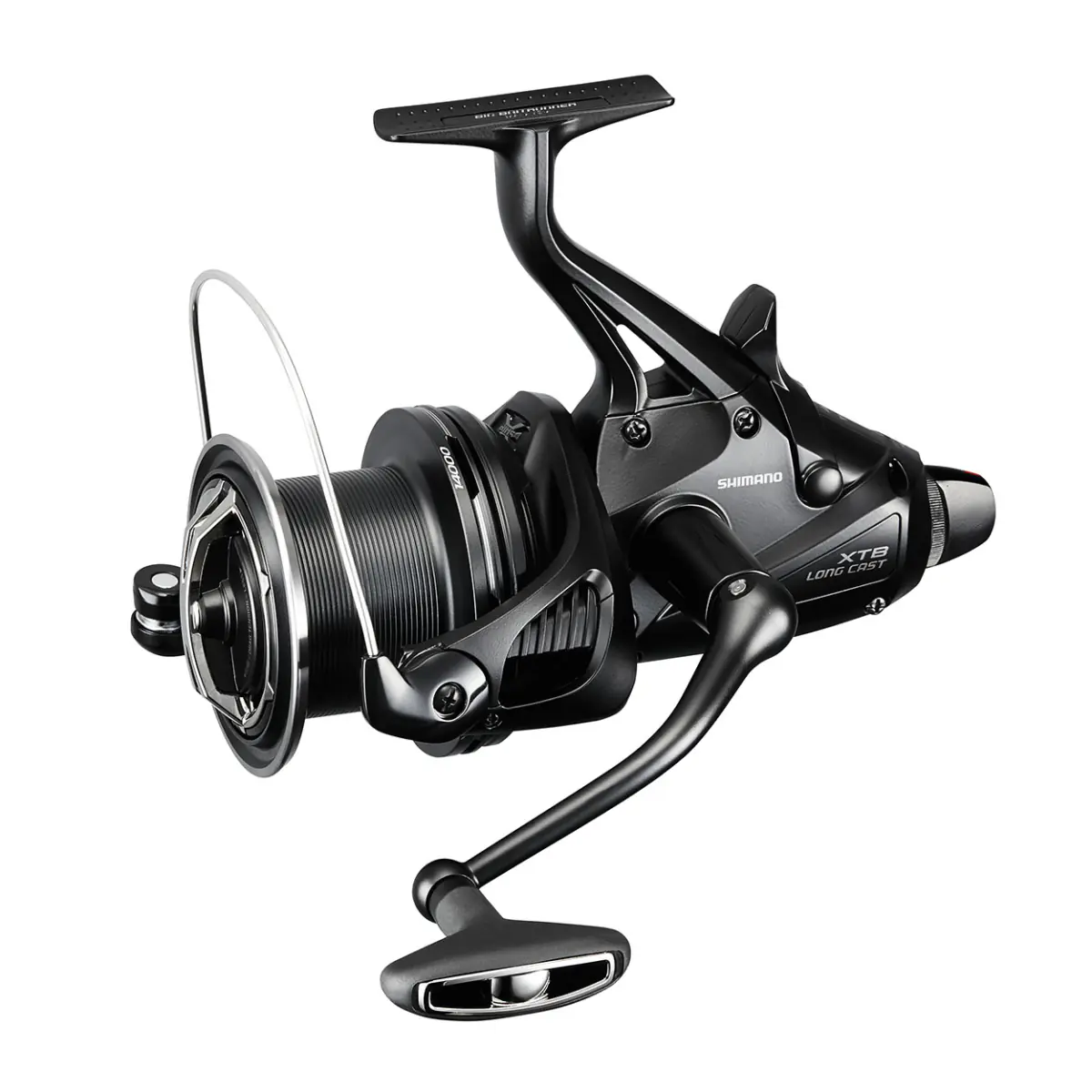

Cette page regroupe la vue éclatée, les pièces compatibles et les solutions d'entretien pour le SHIMANO 18 Medium Baitrunner CI4+ XTB LC (2018).
Retrouvez rapidement les roulements de bobine, roulements à billes, roulement de galet, freins Carbontex, pièces détachées d'origine et accessoires associés à ce modèle.
| N° Schéma | Référence / Pièce | Action |
|---|---|---|
| 13188 |
R13
dès 12,76 €
|
|
| 13189 |
R09
dès 12,76 €
|
|
| 13274 |
R19
dès 10,99 €
|
|
| 14171 |
R06
dès 8,79 €
|
|
| 14173 |
R14
dès 11,96 €
|
|
| 18493 |
101A1 - Galet Line Roller Set - Shimano
26,95 €
|
|
| 13188 |
R13
dès 12,76 €
|
|
| 13189 |
R09
dès 12,76 €
|
|
| 13274 |
R19
dès 10,99 €
|
|
| 14171 |
R06
dès 8,79 €
|
|
| 14173 |
R14
dès 11,96 €
|
| N° Schéma | Référence constructeur | Description | Commande |
|---|---|---|---|
| 13188 | RD13188 Ball Bearing | Ball Bearing |
R13
dès 12,76 €
|
| 13189 | RD13189 Ball Bearing | Ball Bearing |
R09
dès 12,76 €
|
| 13274 | RD13274 Ball Bearing | Ball Bearing |
R19
dès 10,99 €
|
| 14171 | RD14171 Handle Knob Bushing | Handle Knob Bushing |
R06
dès 8,79 €
|
| 14173 | RD14173 Ball Bearing | Ball Bearing |
R14
dès 11,96 €
|
| 18493 | RD18493 Line Roller | Line Roller |
101A1 - Galet Line Roller Set - Shimano
26,95 €
|
| 2963 | 10422 Baitrunner Click Spring | Baitrunner Click Spring | — |
| 5455 | 10DCK Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 5705 | 106HS Roller Clutch Ring | Roller Clutch Ring | — |
| 5850 | 10G75 Baitrunner Pawl Spring | Baitrunner Pawl Spring | — |
| 5941 | 10L9R Screw | Screw | — |
| 7189 | 10G6Z Clutch Pawl | Clutch Pawl | — |
| 7204 | 10KF3 Washer | Washer | — |
| 7583 | 105NC E Lock | E Lock |
E-Ring 2,0mm
1,60 €
|
| 8854 | 10AF0 Worm Shaft Pin | Worm Shaft Pin | — |
| 9975 | 10JUU Oscillating Slider Bushing | Oscillating Slider Bushing |
R33
dès 11,96 €
|
| 11717 | 10Q03 Spool Support A | Spool Support A | — |
| 11743 | 10JT6 Oscillating Pawl | Oscillating Pawl | — |
| 13034 | 103NJ Screw | Screw | — |
| 13180 | 10B3R Seal Plate A | Seal Plate A | — |
| 13181 | 10PLS Seal Plate B | Seal Plate B | — |
| 13188 | 10BGD Ball Bearing | Ball Bearing |
R13
dès 12,76 €
|
| 13189 | 104PT Ball Bearing | Ball Bearing |
R09
dès 12,76 €
|
| 13225 | 10N0W Baitrunner Pawl | Baitrunner Pawl | — |
| 13226 | 106RY Dial Click | Dial Click | — |
| 13227 | 106WH Baitrunner Pawl Guide | Baitrunner Pawl Guide | — |
| 13232 | 1050Y Free Spool Tension Shaft | Free Spool Tension Shaft | — |
| 13233 | 106RU Free Spool Tension Spring | Free Spool Tension Spring | — |
| 13274 | 104PP Ball Bearing | Ball Bearing |
R19
dès 10,99 €
|
| 14171 | 104UJ Handle Knob Bushing | Handle Knob Bushing |
R06
dès 8,79 €
|
| 14173 | 10KX2 Ball Bearing | Ball Bearing |
R14
dès 11,96 €
|
| 14564 | 10JM3 Drag Click Spring | Drag Click Spring | — |
| 14576 | 10ATV Line Clip | Line Clip | — |
| 14683 | 106LY Worm Bushing Front | Worm Bushing Front | — |
| 14684 | 10CKF Idle Gear B Shaft | Idle Gear B Shaft | — |
| 14685 | 1053K Anti-Reverse Cam | Anti-Reverse Cam | — |
| 14687 | 10J0P Anti-Reverse Lever Cover | Anti-Reverse Lever Cover | — |
| 14689 | 10H9M Idle Gear | Idle Gear | — |
| 14693 | 10P9F Baitrunner Lever Shaft | Baitrunner Lever Shaft | — |
| 14694 | 10MVW Clutch Plate Assembly | Clutch Plate Assembly | — |
| 14696 | 109PR Oil Cap | Oil Cap | — |
| 14698 | 10Q7E Baitrunner Lever Arm L | Baitrunner Lever Arm L | — |
| 14699 | 10PBW Baitrunner Lever Bridge | Baitrunner Lever Bridge | — |
| 14700 | 1074W Oscillating Slider Retainer | Oscillating Slider Retainer | — |
| 14701 | 10G5Z Oscillating Slider | Oscillating Slider | — |
| 14704 | 108P2 Baitrunner Lever Arm R | Baitrunner Lever Arm R | — |
| 14705 | 10JX4 Baitrunner Tension Dial | Baitrunner Tension Dial | — |
| 14979 | 10J03 Spool Support B | Spool Support B | — |
| 15200 | 10A6G Screw | Screw | — |
| 15262 | 10G8L Line Roller Support Cover | Line Roller Support Cover | — |
| 15325 | 10PCE Dial Retainer | Dial Retainer | — |
| 15326 | 10L5Q Dial Retainer B | Dial Retainer B | — |
| 15632 | 1080W Rotor Nut | Rotor Nut | — |
| 15633 | 105YV Bail Spring Guide A | Bail Spring Guide A | — |
| 15634 | 10HDK Bail Spring Guide A Support | Bail Spring Guide A Support | — |
| 15635 | 105LJ Bail Spring | Bail Spring | — |
| 15636 | 107A7 Bail Spring Guide B | Bail Spring Guide B | — |
| 15642 | 106PL Lever Spring | Lever Spring | — |
| 15644 | 10763 Washer | Washer | — |
| 16037 | 10BC7 Key Washer | Key Washer | — |
| 16039 | 102XY Washer | Washer | — |
| 16040 | 10QBX Washer | Washer | — |
| 16047 | 106KL Bail Trip Lever | Bail Trip Lever | — |
| 16056 | 10EWG Spool Economizer (Accessory) | Spool Economizer (Accessory) | — |
| 16057 | 109WG Spool Economizer (Accessory) | Spool Economizer (Accessory) | — |
| 16402 | 10L4B Main Shaft | Main Shaft | — |
| 16406 | 10J2C Rotor Washer | Rotor Washer | — |
| 16407 | 10BUR Pinion Gear | Pinion Gear | — |
| 16409 | 1033G Oscillating Guide | Oscillating Guide | — |
| 16410 | 1081N Worm Shaft | Worm Shaft | — |
| 16411 | 10A5N Drive Gear | Drive Gear | — |
| 16954 | 10909 O Ring | O Ring | — |
| 17175 | 1059Q Washer | Washer | — |
| 17382 | 10L6J Screw | Screw | — |
| 17412 | 10PH7 Spool Washer | Spool Washer | — |
| 17438 | 10LFF Screw | Screw | — |
| 17441 | 10LJ3 Screw | Screw | — |
| 17621 | 10K92 Screw | Screw | — |
| 17622 | 10LLK Screw | Screw | — |
| 17700 | 10LFA Screw | Screw | — |
| 17829 | 10L67 Screw | Screw | — |
| 17891 | 10B02 Line Clip Spring | Line Clip Spring | — |
| 17986 | 101SE Drag Click | Drag Click | — |
| 17989 | 10KHH E Lock | E Lock | — |
| 17991 | 10LFL Screw | Screw | — |
| 18201 | 10K98 Spacer | Spacer | — |
| 18399 | 10S0Y Roller Clutch Assembly | Roller Clutch Assembly | — |
| 18400 | 101K9 Anti-Reverse Lever | Anti-Reverse Lever | — |
| 18401 | 10TLX Screw | Screw | — |
| 18402 | 10KHK C Lock | C Lock | — |
| 18403 | 10P0M Baitrunner Ratchet | Baitrunner Ratchet | — |
| 18404 | 10N1R Clutch Spring | Clutch Spring | — |
| 18405 | 10N22 Clutch Pawl Spring | Clutch Pawl Spring | — |
| 18408 | 10L9X Screw | Screw | — |
| 18409 | 10L6P Screw | Screw | — |
| 18412 | 10LCT Screw | Screw | — |
| 18414 | 106RB Idle Gear B Small | Idle Gear B Small | — |
| 18415 | 106RM Screw | Screw | — |
| 18416 | 107CN Eared Washer | Eared Washer | — |
| 18417 | 10P0U Washer | Washer | — |
| 18418 | 10MYU Click Gear | Click Gear | — |
| 18419 | 10P0T Washer | Washer | — |
| 18421 | 10KHF Washer | Washer | — |
| 18422 | 10LLH Screw | Screw | — |
| 18423 | 10TLW Screw | Screw | — |
| 18492 | 10QUP Line Roller Collar | Line Roller Collar | — |
| 18493 | 101A1 Line Roller | Line Roller |
101A1 - Galet Line Roller Set - Shimano
26,95 €
|
| 18494 | 10QV3 Line Roller Spacer | Line Roller Spacer | — |
| 18499 | 10QUV Line Roller Support | Line Roller Support | — |
| 18503 | 101BD Washer | Washer | — |
| 18514 | 10E8N Screw | Screw | — |
| 18798 | 10S5Z Drag Washer | Drag Washer | — |
| 18800 | 10S5S Line Safety Guard | Line Safety Guard | — |
| 18804 | 10SYV Washer | Washer | — |
| 18813 | 10S5B Drag Knob | Drag Knob | — |
| 18814 | 10S5R Spool Medium Baitrunner CI4+ X | Spool Medium Baitrunner CI4+ X | — |
| 18815 | 10S5D Bail Arm | Bail Arm | — |
| 18816 | 10TLV Bail Spring Cover | Bail Spring Cover | — |
| 18817 | 10S5M Rotor Assembly | Rotor Assembly | — |
| 18818 | 10S5J Bail Hold Support Guard | Bail Hold Support Guard | — |
| 18819 | 10RXC Bail Assembly | Bail Assembly | — |
| 18827 | 10S5P Spare Spool Ultegra CI4+ 5500 | Spare Spool Ultegra CI4+ 5500 | — |
| 18958 | 10TNL Handle Knob Seal | Handle Knob Seal | — |
| 19063 | 10E5C Side Cover Assembly | Side Cover Assembly | — |
| 19064 | 100Y5 Handle Shaft Cover B | Handle Shaft Cover B | — |
| 19065 | 10E5E Handle Shank Assembly | Handle Shank Assembly | — |
| 19066 | 10E5H Handle Knob | Handle Knob | — |
| 19067 | 100Y3 Handle Assembly | Handle Assembly | — |
| 19068 | 10CN8 Idle Gear B Large | Idle Gear B Large | — |
| 19069 | 10E5B Body | Body | — |
| 19070 | 10EEX Screw | Screw | — |
| 21398 | 10RKQ Washer | Washer | — |
| N° Schéma | Référence / Pièce | Action |
|---|---|---|
| 7583 |
E-Ring 2,0mm
1,60 €
|
Confiez votre moulinet à nos techniciens pour un entretien complet : nettoyage, graissage, remplacement des pièces d'usure et vérification générale.
Découvrir nos forfaits d'entretien
