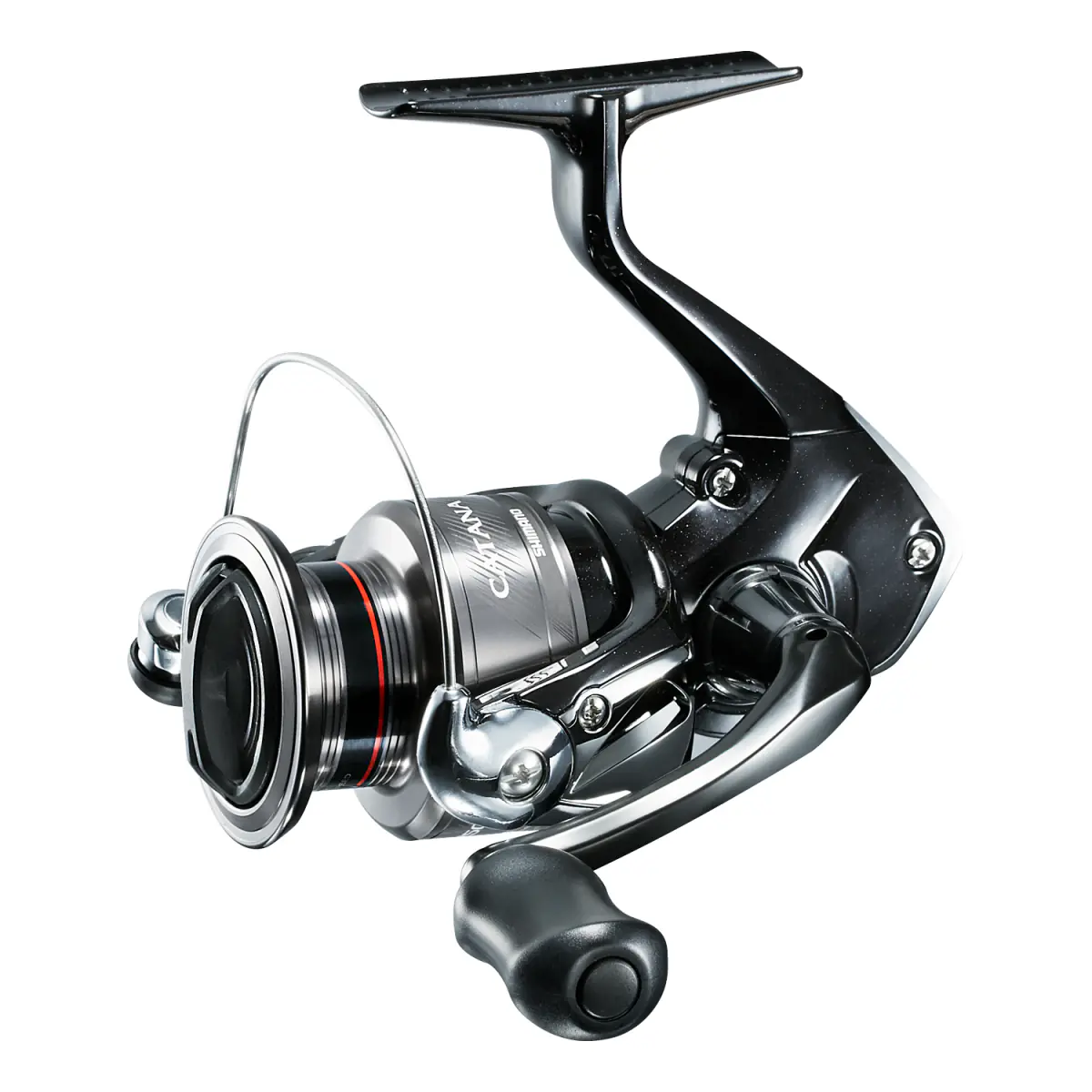

Cette page regroupe la vue éclatée, les pièces compatibles et les solutions d'entretien pour le SHIMANO 18 Catana 1000 FD (2018).
Retrouvez rapidement les roulements de bobine, roulements à billes, roulement de galet, freins Carbontex, pièces détachées d'origine et accessoires associés à ce modèle.
| N° Schéma | Référence / Pièce | Action |
|---|---|---|
| 5431 |
R19
dès 10,99 €
|
|
| 8553 |
R18
dès 10,99 €
|
|
| 8553 |
R18
dès 10,99 €
|
| N° Schéma | Référence constructeur | Description | Commande |
|---|---|---|---|
| 5431 | RD5431 Drive Gear Bushing | Drive Gear Bushing |
R19
dès 10,99 €
|
| 8553 | RD8553 Ball Bearing | Ball Bearing |
R18
dès 10,99 €
|
| 3455 | 10BXN Spool Washer | Spool Washer | — |
| 4798 | 103C6 Screw | Screw | — |
| 5431 | 10GMX Drive Gear Bushing | Drive Gear Bushing |
R19
dès 10,99 €
|
| 6684 | 10KFD Line Roller Spacer | Line Roller Spacer | — |
| 8553 | 107AT Ball Bearing | Ball Bearing |
R18
dès 10,99 €
|
| 9365 | 105LS Bail Spring Guide | Bail Spring Guide | — |
| 9366 | 10FVB Bail Spring | Bail Spring | — |
| 9367 | 10PFE Bushing | Bushing | — |
| 9368 | 10JLF Line Roller | Line Roller | — |
| 9369 | 10PFP Washer | Washer | — |
| 9371 | 10DE8 Bail Spring Cover | Bail Spring Cover | — |
| 9372 | 10F1A Bail Trip Lever | Bail Trip Lever | — |
| 9374 | 10Q9G Bail Assembly | Bail Assembly | — |
| 9510 | 10DET Bail Arm | Bail Arm | — |
| 10051 | 10CW5 Bail Hold Support Guard | Bail Hold Support Guard | — |
| 14832 | 103MU Spool Support A | Spool Support A | — |
| 14833 | 10J04 Spool Support B | Spool Support B | — |
| 15425 | 1074K Pinion Gear Bushing | Pinion Gear Bushing | — |
| 15450 | 10G64 Oscillating Slider | Oscillating Slider | — |
| 15452 | 10NKJ Rear Protector | Rear Protector | — |
| 15453 | 10359 Oscillating Guide | Oscillating Guide | — |
| 15588 | 10AP0 Anti-Reverse Lever | Anti-Reverse Lever | — |
| 15974 | 10AM5 Drive Gear | Drive Gear | — |
| 15977 | 10G9M Oscillating Gear | Oscillating Gear | — |
| 17140 | 103NS Main Shaft | Main Shaft | — |
| 17143 | 10C54 Pinion Gear | Pinion Gear | — |
| 17144 | 1053R Anti-Reverse Cam | Anti-Reverse Cam | — |
| 17145 | 105B4 Anti-Reverse Cam Spring | Anti-Reverse Cam Spring | — |
| 17251 | 10QPN Roller Clutch Assembly | Roller Clutch Assembly | — |
| 17332 | 10R1P Screw | Screw | — |
| 17368 | 10MZM Drag Washers Retainer | Drag Washers Retainer | — |
| 17369 | 10N23 Key Washer | Key Washer | — |
| 17370 | 10N57 Drag Washer | Drag Washer | — |
| 17372 | 10LCE Screw | Screw | — |
| 17373 | 10817 Rotor Nut | Rotor Nut | — |
| 17374 | 10K90 Screw | Screw | — |
| 17375 | 10LFQ Screw | Screw | — |
| 17377 | 10L1Q Screw | Screw | — |
| 17378 | 10L1R Screw | Screw | — |
| 17382 | 10L6J Screw | Screw | — |
| 17853 | 10LFH Screw | Screw | — |
| 18441 | 10L25 Screw | Screw | — |
| 18536 | 1003B Washer | Washer | — |
| 18538 | 1003D Washer | Washer | — |
| 18542 | 1027D Screw | Screw | — |
| 18630 | 10B99 Handle Knob Seal | Handle Knob Seal | — |
| 18851 | 100HT Drag Knob | Drag Knob | — |
| 18852 | 10T8F Spool Catana 1000 FD | Spool Catana 1000 FD | — |
| 18853 | 100PK Rotor Assembly | Rotor Assembly | — |
| 18854 | 10T8N Side Cover | Side Cover | — |
| 18855 | 100HU Handle Assembly | Handle Assembly | — |
| 18856 | 100PH Body | Body | — |
