Cette page regroupe la vue éclatée, les pièces compatibles et les solutions d'entretien pour le SHIMANO 16 VANQUISH 4000 HG (2016).
Retrouvez rapidement les roulements de bobine, roulements à billes, roulement de galet, freins Carbontex, pièces détachées d'origine et accessoires associés à ce modèle.
| N° Schéma | Référence / Pièce | Action |
|---|---|---|
| 9 aussi n° 67 |
R20
dès 11,96 €
|
|
| 19 |
R04
dès 8,79 €
|
|
| 61 |
R12
dès 13,29 €
|
|
| 67 aussi n° 9 |
R20
dès 11,96 €
|
|
| 72 |
R33
dès 11,96 €
|
|
| 75 |
R19
dès 10,99 €
|
|
| 77 |
R18
dès 10,99 €
|
|
| 86 |
R05
dès 10,39 €
|
|
| 105 |
R21
dès 13,29 €
|
|
| 0009 |
R20
dès 11,96 €
|
|
| 0019 |
R04
dès 8,79 €
|
|
| 0061 |
R12
dès 13,29 €
|
|
| 0067 |
R20
dès 11,96 €
|
|
| 0072 |
R33
dès 11,96 €
|
|
| 0075 |
R19
dès 10,99 €
|
|
| 0077 |
R18
dès 10,99 €
|
|
| 0086 |
R05
dès 10,39 €
|
|
| 0105 |
R21
dès 13,29 €
|
| N° Schéma | Référence constructeur | Description | Commande |
|---|---|---|---|
| 9 aussi n° 67 |
R20
dès 11,96 €
|
||
| 19 |
R04
dès 8,79 €
|
||
| 61 |
R12
dès 13,29 €
|
||
| 67 aussi n° 9 |
R20
dès 11,96 €
|
||
| 72 |
R33
dès 11,96 €
|
||
| 75 |
R19
dès 10,99 €
|
||
| 77 |
R18
dès 10,99 €
|
||
| 86 | — | ||
| 105 |
R21
dès 13,29 €
|
||
| 0001 | 1029K Drag Knob | Drag Knob | — |
| 0002 | 10B8A Drag Washers Retainer | Drag Washers Retainer | — |
| 0004 | 102ZP Drag Washer | Drag Washer |
Carbontex pour Shimano Spinning S#3
10,95 €
|
| 0005 | 10BE7 Washer | Washer | — |
| 0006 | 10B9D Key Washer | Key Washer | — |
| 0007 | 10C1D Drag Washer | Drag Washer | — |
| 0008 | 10GEW Bearing Retainer | Bearing Retainer |
10GEW - Bearing Retainer - Shimano
1,99 €
|
| 0009 | 104JT Ball Bearing | Ball Bearing |
R20
dès 11,96 €
|
| 0010 | 10BQE Drag Click Spring | Drag Click Spring | — |
| 0011 | 10388 Drag Click | Drag Click | — |
| 0012 | 10A6F Screw | Screw | — |
| 0013 | 1029P Spool Vanquish 4000 FA | Spool Vanquish 4000 FA | — |
| 0014 | 10BSG Spool Washer | Spool Washer | — |
| 0016 | 10PN2 Screw | Screw | — |
| 0017 | 10LTS Bearing Bushing | Bearing Bushing | — |
| 0018 | 10TQH Bearing Housing | Bearing Housing | — |
| 0019 | 10EX8 Ball Bearing | Ball Bearing |
R04
dès 8,79 €
|
| 0020 | 10GHN Washer | Washer | — |
| 0021 | 107V2 Ratchet Spring | Ratchet Spring | — |
| 0022 | 107PS Drag Click Ratchet | Drag Click Ratchet | — |
| 0023 | 103NX Spool Support | Spool Support | — |
| 0024 | 10PMD Screw | Screw | — |
| 0025 | 10R2K Rotor Nut Lock Plate | Rotor Nut Lock Plate | — |
| 0026 | 107L5 Bearing Water Proof | Bearing Water Proof | — |
| 0027 | 10R2D Rotor Nut | Rotor Nut | — |
| 0028 | 10CH0 Click Spring | Click Spring | — |
| 0029 | 10CHA Click Pin | Click Pin | — |

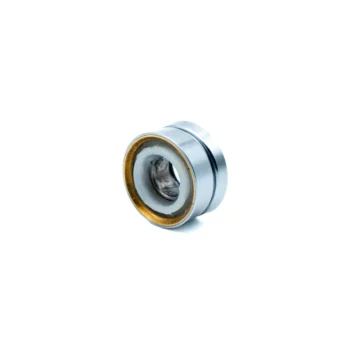

| 0031 | 10N6E Line Roller | Line Roller |
10N6E - Galet Line Roller Set - Shimano
19,99 €
|
| 0033 | 1079U Line Roller Plate | Line Roller Plate | — |
| 0034 | 10K40 Screw | Screw | — |
| 0035 | 10TNC Screw | Screw | — |
| 0036 | 10TPB Bail Arm | Bail Arm | — |
| 0037 | 101R5 Rotor Assembly | Rotor Assembly | — |
| 0038 | 10TRF Bail Trip Lever | Bail Trip Lever | — |
| 0039 | 1064R Spring Guide A Support | Spring Guide A Support | — |
| 0040 | 10R2P Bail Spring | Bail Spring | — |
| 0041 | 10R2E Bail Spring Seat | Bail Spring Seat | — |
| 0042 | 10R3U Washer | Washer | — |
| 0043 | 10L01 Line Roller Support | Line Roller Support | — |
| 0044 | 105YZ Bail Spring Guide A | Bail Spring Guide A | — |
| 0045 | 10R2F Bail Spring Guide A Bush | Bail Spring Guide A Bush | — |
| 0046 | 101RA Bail Assembly | Bail Assembly | — |
| 0047 | 10PS4 Screw | Screw | — |
| 0048 | 10TPK Bail Hold Support Guard | Bail Hold Support Guard | — |
| 0049 | 10PS9 Screw | Screw | — |
| 0051 | 10JDE Washer | Washer | — |
| 0052 | 10MTG Screw | Screw | — |
| 0053 | 10L61 Roller Clutch Reinforce | Roller Clutch Reinforce | — |
| 0055 | 10QYK Roller Clutch Assembly | Roller Clutch Assembly | — |
| 0056 | 10MLT O Ring | O Ring | — |
| 0057 | 107S5 Roller Clutch Inner | Roller Clutch Inner | — |
| 0058 | 10H4G Roller Clutch Inner Spacer | Roller Clutch Inner Spacer | — |
| 0059 | 10ML6 Screw | Screw | — |
| 0060 | 10593 Bearing Retainer | Bearing Retainer | — |
| 0061 | 104VF Ball Bearing | Ball Bearing |
R12
dès 13,29 €
|
| 0062 | 10HV8 Spacer | Spacer | — |
| 0063 | 10JDC Washer | Washer | — |
| 0064 | 10TQ9 Pinion Gear | Pinion Gear | — |
| 0065 | 108W6 O Ring | O Ring | — |
| 0066 | 10J6G Pinion Gear Spacer | Pinion Gear Spacer | — |
| 0067 | 104JV Ball Bearing | Ball Bearing |
R20
dès 11,96 €
|
| 0069 | 104FU Friction Ring | Friction Ring | — |
| 0070 | 10R1M Screw | Screw | — |
| 0071 | 10R31 Bail Trip Strike | Bail Trip Strike | — |
| 0072 | 10PC0 Ball Bearing | Ball Bearing |
R33
dès 11,96 €
|
| 0073 | 10HBR Idle Gear | Idle Gear | — |
| 0074 | 10J3P Friction Ring Spacer | Friction Ring Spacer | — |
| 0075 | 104PP Ball Bearing | Ball Bearing |
R19
dès 10,99 €
|
| 0076 | 10ELY Drive Gear | Drive Gear | — |
| 0077 | 104JD Ball Bearing | Ball Bearing |
R18
dès 10,99 €
|
| 0078 | 1055G Screw | Screw | — |
| 0079 | 10CBC Flange Water Proof | Flange Water Proof | — |
| 0080 | 101RV Side Cover | Side Cover | — |
| 0081 | 10M2C Screw | Screw | — |
| 0082 | 10PXU Handle Shaft Seal | Handle Shaft Seal | — |
| 0083 | 10TNQ Handle Shaft Cover B | Handle Shaft Cover B | — |
| 0084 | 10TNP Handle Shaft Cover | Handle Shaft Cover | — |
| 0085 | 101RZ Handle Shank Assembly | Handle Shank Assembly | — |
| 0086 | 104VX Ball Bearing | Ball Bearing |
R05
dès 10,39 €
|
| 0087 | 10R38 Handle Knob | Handle Knob | — |
| 0088 | 10G8G Washer | Washer | — |
| 0089 | 103E9 Screw | Screw | — |
| 0090 | 10R3A Handle Knob Seal | Handle Knob Seal | — |
| 0091 | 10DG0 Handle Assembly | Handle Assembly | — |
| 0092 | 10MT4 Screw | Screw | — |
| 0093 | 10HAH Oscillating Pawl Cover | Oscillating Pawl Cover | — |
| 0094 | 10JXR Oscillating Slider Bushing | Oscillating Slider Bushing | — |
| 0095 | 10RKQ Washer | Washer | — |
| 0096 | 106VM Oscillating Pawl | Oscillating Pawl | — |
| 0097 | 102J6 Main Shaft | Main Shaft | — |
| 0098 | 10NL5 Rear Protector | Rear Protector | — |
| 0099 | 106ZG Screw | Screw | — |
| 0100 | 107HK Rear Shield | Rear Shield | — |
| 0101 | 10AYN Rear Protector Collar | Rear Protector Collar | — |
| 0102 | 103EA Screw | Screw | — |
| 0103 | 10ATD Worm Shaft Retainer | Worm Shaft Retainer | — |
| 0104 | 10J7K Washer | Washer | — |
| 0105 | 10PDA Ball Bearing | Ball Bearing |
R21
dès 13,29 €
|
| 0106 | 10689 Worm Shaft | Worm Shaft | — |
| 0107 | 10JAB O Ring | O Ring | — |
| 0108 | 1035M Oscillating Guide | Oscillating Guide | — |
| 0109 | 104MC Oscillating Guide B | Oscillating Guide B | — |
| 0110 | 10LPX Screw | Screw | — |
| 0111 | 106VR Idle Gear B Small | Idle Gear B Small | — |
| 0112 | 1059T Washer | Washer | — |
| 0113 | 10CQJ Idle Gear B Large | Idle Gear B Large | — |
| 0114 | 101QU Body | Body | — |
| 0115 | 10N3S Screw | Screw | — |
| 0116 | 10192 Washer | Washer | — |
| 0117 | 10GAR Bearing Spacer | Bearing Spacer | — |
| 0118 | 10GAT Bearing Spacer | Bearing Spacer | — |
| 0122 | 10SD3 Roller Clutch Water Proof Set | Roller Clutch Water Proof Set | — |
| 0123 | 10Q6T Key Washer | Key Washer | — |
| 0124 | 10TC8 Idle Gear Shaft | Idle Gear Shaft | — |
| 0131 | 10PBS Reel Seat Spacer (Accessory) | Reel Seat Spacer (Accessory) | — |
| *F01 | 13B3S Reel Bag | Reel Bag | — |
| ITOS | 13QPZ Thread Stopper Seals | Thread Stopper Seals | — |
| MH01 | 13AZX Nameplate On The Back Of The Leg | Nameplate On The Back Of The Leg | — |
Confiez votre moulinet à nos techniciens pour un entretien complet : nettoyage, graissage, remplacement des pièces d'usure et vérification générale.
Découvrir nos forfaits d'entretien
