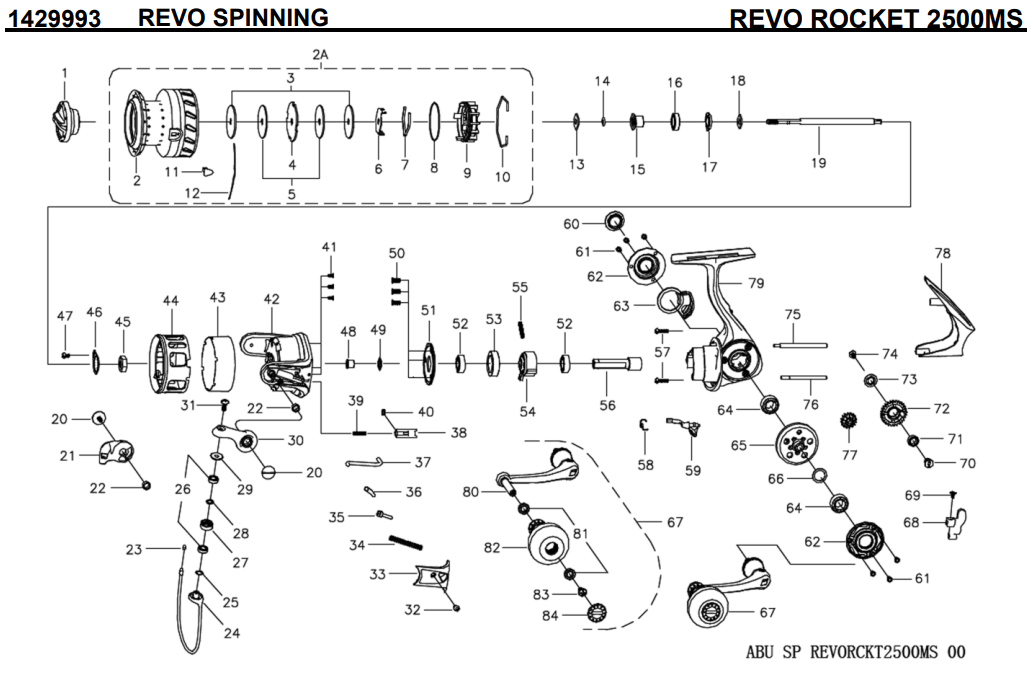

Cette page regroupe la vue éclatée, les pièces compatibles et les solutions d'entretien pour le ABU GARCIA Revo ROCKET 2500MS.
Retrouvez rapidement les roulements de bobine, roulements à billes, roulement de galet, freins Carbontex, pièces détachées d'origine et accessoires associés à ce modèle.
| N° Schéma | Référence constructeur | Description | Commande |
|---|---|---|---|
| 1 | 1404795 Drag Knob Assy | Drag Knob Assy | — |
| 2 | 1443324 Spool | Spool | — |
| 2A | 1443325 Spool Assy | Spool Assy | — |
| 3 | 1378763 Key Washer | Key Washer | — |
| 4 | 1409747 Drag Washer | Drag Washer | — |
| 5 | 1378764 Eared Washer | Eared Washer | — |
| 6 | 1378765 Spool Click Retainer | Spool Click Retainer | — |
| 7 | 1378766 Spool Click | Spool Click | — |
| 8 | 1378767 0-Ring | 0-Ring | — |
| 9 | 1409799 Spool Bottom | Spool Bottom | — |
| 10 | 1378769 Clip | Clip | — |
| 11 | 1378771 Line Clip | Line Clip | — |
| 12 | 1216569 Line Clip Spring | Line Clip Spring | — |
| 13 | 1378773 Space Washer | Space Washer | — |
| 14 | 1378774 0-Ring | 0-Ring | — |
| 15 | 1378840 Bearing Sleeve | Bearing Sleeve | — |
| 16 | 1224308 Bearing | Bearing | — |
| 17 | 1378841 Seal | Seal | — |
| 18 | 1378777 Spool Shaft Washer | Spool Shaft Washer | — |
| 19 | 1416137 Main Shaft | Main Shaft | — |
| 20 | 1378779 Screw | Screw | — |
| 21 | 1405574 Bail Holder | Bail Holder | — |
| 22 | 1378781 Bushing | Bushing | — |
| 23 | 1378782 Bail Wire Underlay | Bail Wire Underlay | — |
| 24 | 1378845 Bail Wire | Bail Wire | — |
| 25 | 1378784 Shim | Shim | — |
| 26 | 1380228 Bearing | Bearing | — |
| 27 | 1378785 Line Roller | Line Roller | — |
| 28 | 1378786 Line Slider Washer | Line Slider Washer | — |
| 29 | 1378846 Line Roller Collar | Line Roller Collar | — |
| 30 | 1405575 Bail Arm | Bail Arm | — |
| 31 | 1378789 Screw | Screw | — |
| 32 | 1378790 Screw | Screw | — |
| 33 | 1404801 Bail Arm Cover | Bail Arm Cover | — |
| 34 | 1378849 Bail Arm Spring | Bail Arm Spring | — |
| 35 | 1378793 Spring Seat | Spring Seat | — |
| 36 | 1378794 Pivot Lever | Pivot Lever | — |
| 37 | 1378850 Trip Plunger | Trip Plunger | — |
| 38 | 1378851 Rotor Brake | Rotor Brake | — |
| 39 | 1378852 Rotor Brake Spring | Rotor Brake Spring | — |
| 40 | 1378853 Rubber Sleeve | Rubber Sleeve | — |
| 41 | 1207341 Rotor Screw | Rotor Screw | — |
| 42 | 1405576 Rotor | Rotor | — |
| 43 | 1443309 Carbon Plate | Carbon Plate | — |
| 44 | 1404802 Rotor Sleeve | Rotor Sleeve | — |
| 45 | 1378801 Rotor Nut | Rotor Nut | — |
| 46 | 1378802 Rotor Nut Washer | Rotor Nut Washer | — |
| 47 | 1378803 Screw | Screw | — |
| 48 | 1404814 Pinion Gear Bushing | Pinion Gear Bushing | — |
| 49 | 1378805 Washer | Washer | — |
| 50 | 1210692 Screw | Screw | — |
| 51 | 1378857 Bearing Cover | Bearing Cover | — |
| 52 | 1380233 Bearing | Bearing | — |
| 53 | 1378808 Bearing Sleeve | Bearing Sleeve | — |
| 54 | 1380128 One Way Clutch | One Way Clutch | — |
| 55 | 1378810 Clutch Spring | Clutch Spring | — |
| 56 | 1378858 Pinion Gear | Pinion Gear | — |
| 57 | 1416231 Screw | Screw | — |
| 58 | 1378885 Switch Spring | Switch Spring | — |
| 59 | 1443310 Iar Switch | Iar Switch | — |
| 60 | 1443299 Dust Cap | Dust Cap | — |
| 61 | 1378818 Screw | Screw | — |
| 62 | 1443311 Bearing Retainer | Bearing Retainer | — |
| 63 | 1405578 Side Cover | Side Cover | — |
| 64 | 1378807 Bearing | Bearing | — |
| 65 | 1443312 Main Gear | Main Gear | — |
| 66 | 1378822 Shim | Shim | — |
| 67 | 1443326 Handle Complete Assy | Handle Complete Assy | — |
| 68 | 1409801 0/S Slider | 0/S Slider | — |
| 69 | 1395731 Screw | Screw | — |
| 70 | 1378827 0/S Gear Pin | 0/S Gear Pin | — |
| 71 aussi n° 81 | 1393642 0/S Gear Bearing | 0/S Gear Bearing | — |
| 72 | 1403859 0/S Gear | 0/S Gear | — |
| 73 | 1378829 0/S Gear Bushing | 0/S Gear Bushing | — |
| 74 | 1395732 Screw | Screw | — |
| 75 | 1416236 Upper 0 S Slider Guide | Upper 0 S Slider Guide | — |
| 76 | 1378893 Lower 0 S Slider Guide | Lower 0 S Slider Guide | — |
| 77 | 1403857 Transfer Gear | Transfer Gear | — |
| 78 | 1443327 Rear Cover | Rear Cover | — |
| 79 | 1443315 Body Assy | Body Assy | — |
| 80 | 1438538 Handle Sub-Assy | Handle Sub-Assy | — |
| 81 aussi n° 71 | 1393642 0/S Gear Bearing | 0/S Gear Bearing | — |
| 82 | 1443328 Handle Knob | Handle Knob | — |
| 83 | 1241728 Screw | Screw | — |
| 84 | 1443306 Handle Knob Cap | Handle Knob Cap | — |
