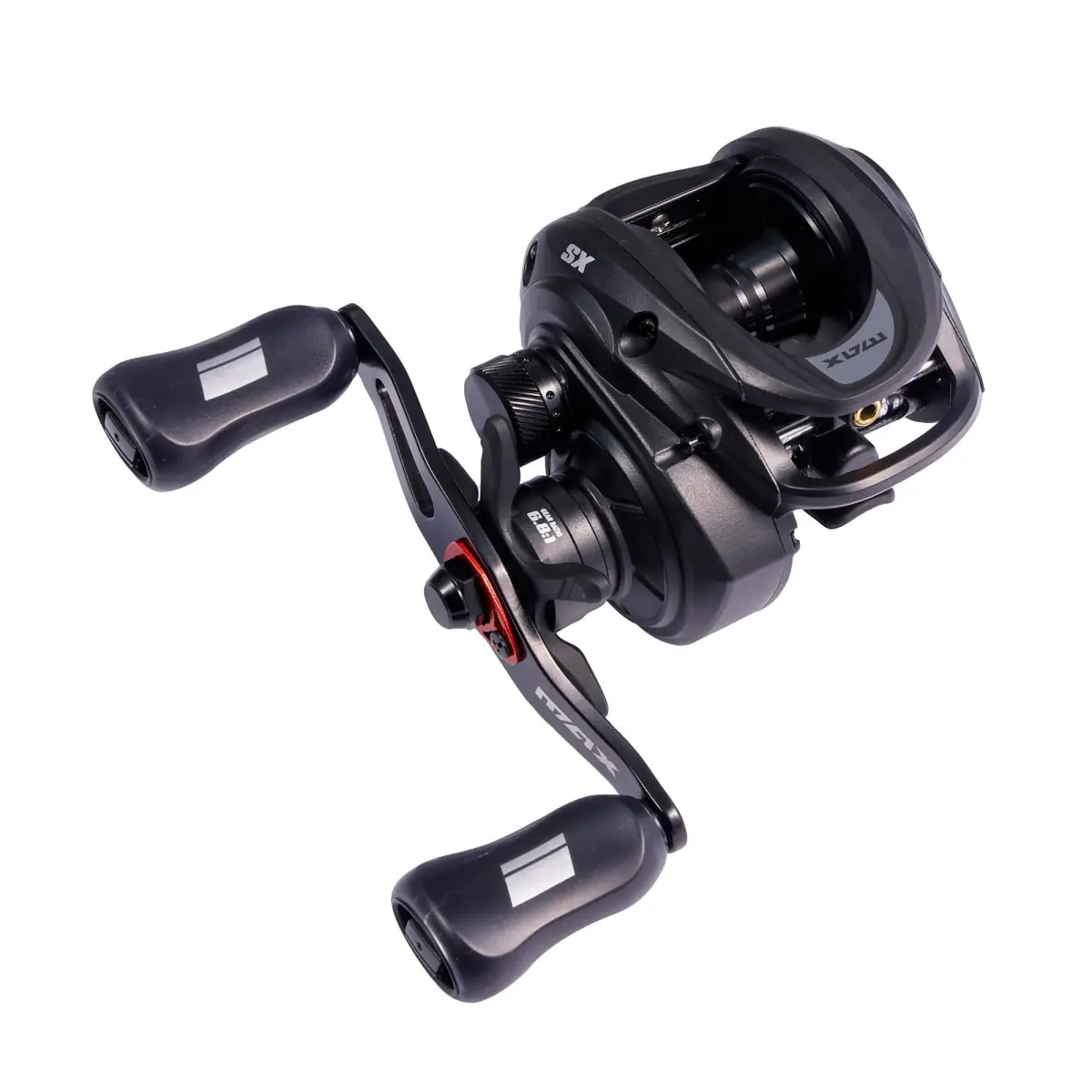

Cette page regroupe la vue éclatée, les pièces compatibles et les solutions d'entretien pour le ABU GARCIA MAX5 SX LP (2025).
Retrouvez rapidement les roulements de bobine, roulements à billes, roulement de galet, freins Carbontex, pièces détachées d'origine et accessoires associés à ce modèle.
| N° Schéma | Référence constructeur | Description | Commande |
|---|---|---|---|
| 1 | 1649929 Frame | Frame | — |
| 2 | 1649930 Line Guide | Line Guide | — |
| 3 | 1137750 Level Wind Tube | Level Wind Tube | — |
| 4 | 1125805 Worm Shaft | Worm Shaft | — |
| 5 aussi n° 75 | 1125729 Ballbearing | Ballbearing |
R05
dès 10,39 €
|
| 6 | 1125732 Worm Shaft Gear | Worm Shaft Gear | — |
| 7 | 1125733 Worm Shaft Pin | Worm Shaft Pin | — |
| 8 | 1313359 Worm Shaft Pin Holder | Worm Shaft Pin Holder | — |
| 9 | 1185695 Worm Shaft Washer | Worm Shaft Washer | — |
| 10 aussi n° 26 | 1124201 Retainer | Retainer |
E-Ring 3,0mm
1,60 €
|
| 11 | 1490485 Line Guide Shaft | Line Guide Shaft | — |
| 12 | 1125806 Pawl | Pawl | — |
| 13 | 1125736 Washer | Washer | — |
| 14 | 1129323 Line Guide Nut | Line Guide Nut | — |
| 15 | 1649931 Front Cover | Front Cover | — |
| 16 | 1185912 Front Cover Screw | Front Cover Screw | — |
| 17 | 1289969 Kick Lever | Kick Lever | — |
| 18 | 1490489 Kick Lever Spring | Kick Lever Spring | — |
| 19 | 1551026 Clutch Spring | Clutch Spring | — |
| 20 | 1551027 Lift Curve | Lift Curve | — |
| 21 | 1551028 Lift Curve Plate | Lift Curve Plate | — |
| 22 | 1415620 Screw | Screw | — |
| 23 | 1252059 Screw | Screw | — |
| 24 | 1649932 Thumb Bar | Thumb Bar | — |
| 25 | 1252077 Screw | Screw | — |
| 26 aussi n° 10 | 1124201 Retainer | Retainer |
E-Ring 3,0mm
1,60 €
|
| 27 | 1380528 Washer | Washer | — |
| 28 | 1116186 Ball Bearing | Ball Bearing |
R06
dès 8,79 €
|
| 29 | 1380529 Main Gear Shaft Plate | Main Gear Shaft Plate | — |
| 30 | 1116183 Screw | Screw | — |
| 31 | 1592972 Washer | Washer | — |
| 32 | 1251634 Level Wind Gear | Level Wind Gear | — |
| 33 | 1415560 Drive Shaft | Drive Shaft | — |
| 34 | 1125756 Ratchet | Ratchet | — |
| 35 | 1281133 Drag Washer | Drag Washer | — |
| 36 | 1649933 Main Gear | Main Gear | — |
| 37 | 1190698 Drag Washer | Drag Washer | — |
| 40 | 1144201 Pressure Washer | Pressure Washer | — |
| 42 | 1118994 Washer | Washer | — |
| 43 | 1257782 Sleeve | Sleeve | — |
| 45 | 1125753 Yoke | Yoke | — |
| 46 | 1116237 Yoke Spring | Yoke Spring | — |
| 47 | 1649934 Pinion | Pinion | — |
| 48 | 1649935 Lock Pin | Lock Pin | — |
| 50 | 1313476 Spring | Spring | — |
| 51 | 1551161 One Way Clutch | One Way Clutch | — |
| 52 | 1649955 Gear Side Plate | Gear Side Plate | — |
| 53 | 1185714 O-Ring | O-Ring | — |
| 54 aussi n° 96 | 1125827 Ball Bearing | Ball Bearing |
R01
dès 8,79 €
|
| 55 aussi n° 97 | 1104790 Ring | Ring | — |
| 58 | 1125829 Friction Washer | Friction Washer | — |
| 59 | 1125828 Rubber Washer | Rubber Washer | — |
| 61 | 1649937 Brake Knob | Brake Knob | — |
| 62 | 1252078 Screw | Screw | — |
| 63 | 1581516 Lube Port | Lube Port | — |
| 64 aussi n° 65 | 1252079 Screw | Screw | — |
| 65 aussi n° 64 | 1252079 Screw | Screw | — |
| 67 | 1125779 Click Spring Holder | Click Spring Holder | — |
| 68 | 1125780 Click Spring | Click Spring | — |
| 69 | 1117208 Spring Washer | Spring Washer | — |
| 70 | 1649939 Star Wheel | Star Wheel | — |
| 71 | 1125783 Washer | Washer | — |
| 72 | 1649940 Handle | Handle | — |
| 73 | 1313502 Worm Shaft Bushing | Worm Shaft Bushing |
R05
dès 10,39 €
|
| 74 | 1581453 Handle Knob | Handle Knob | — |
| 75 aussi n° 5 | 1125729 Ballbearing | Ballbearing |
R05
dès 10,39 €
|
| 76 | 1649956 Screw | Screw | — |
| 77 | 1649942 Handle Knob Cap | Handle Knob Cap | — |
| 78 | 1551167 Handle Nut | Handle Nut | — |
| 79 | 1593018 Handle Nut Cover | Handle Nut Cover | — |
| 80 | 1200031 Handle Nut Retainer Screw | Handle Nut Retainer Screw | — |
| 81 | 1649943 Spool | Spool | — |
| 82 | 1187625 Spool Ball Bearing | Spool Ball Bearing |
R02
dès 11,96 €
|
| 83 | 1187619 Spool Shaft Pin | Spool Shaft Pin | — |
| 84 | 1649944 Dial Plate | Dial Plate | — |
| 85 | 1649957 Palm Side Plate | Palm Side Plate | — |
| 86 | 1649946 Mag Dial | Mag Dial | — |
| 87 | 1649947 Click Spring | Click Spring | — |
| 88 | 1649948 Slide Cam | Slide Cam | — |
| 89 | 1649949 Bearing Housing | Bearing Housing | — |
| 90 | 1187623 Magnet Holder Spring | Magnet Holder Spring | — |
| 91 | 1551174 Magnet Plate | Magnet Plate | — |
| 92 | 1649950 Magnet Holder | Magnet Holder | — |
| 93 | 1116222 Magnet | Magnet | — |
| 94 | 1415533 Screw | Screw | — |
| 95 | 1125797 Washer | Washer | — |
| 96 aussi n° 54 | 1125827 Ball Bearing | Ball Bearing |
R01
dès 8,79 €
|
| 97 aussi n° 55 | 1104790 Ring | Ring | — |
| 98 | 1372155 Washer | Washer | — |
| 99 | 1649958 Gear Side Complete | Gear Side Complete | — |
| 100 | 1649959 Handle Complete | Handle Complete | — |
| 101 | 1649953 Spool Complete | Spool Complete | — |
| 102 | 1649960 Palm Side Complete | Palm Side Complete | — |
